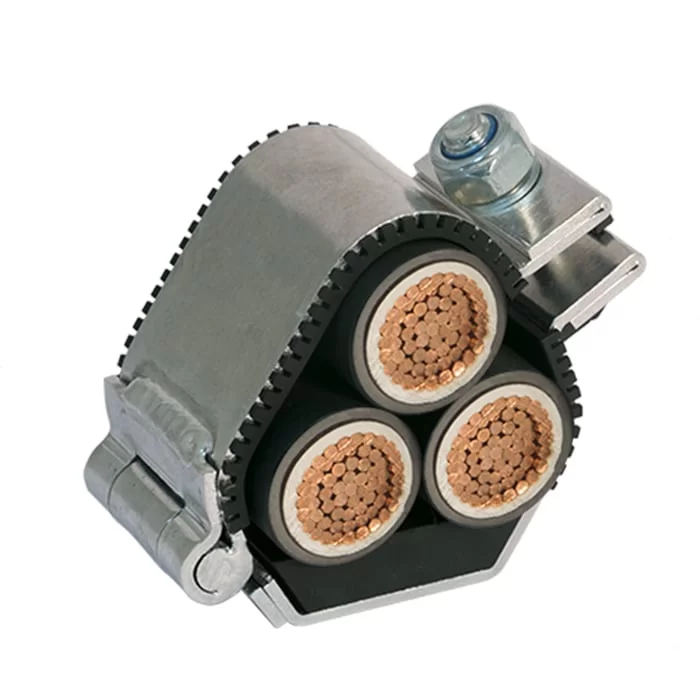

CMP Products – RELIANCE Series Cable Cleats
Technicial Specifications:
- Certificate obtained from an independent organization in accordance with IEC 61914 Standard
- 106kA short circuit resistance
- 3mm Thickness 5000 Series Aluminum Body
- Structure resistant to weather conditions and sunlight (UV)
- -50°C …+60°C standard operating temperature
- Fixing capacity in the cable outer diameter range of 19 mm – 128 mm
- 24 different Trefoil Structure size options
- Single bolt (M10) and two bolt (M10) fixing options
Categories: All Cable Equipment, Cable Cleats, Cable Equipment, General, Metalic Cable Cleats
Description
Additional information
Brand |
CMP |
---|
Reviews (0)
Be the first to review “CMP Products – RELIANCE Series Cable Cleats” Cancel reply
