BARTEC – Pressurized (Ex-p) Exproof Systems
Pressurized (Ex-p) Systems
BARTEC offers an Ex solution to control and automate devices, machines and systems in Zones 1/21 and 2/22 in the form of pressurized containment Ex p systems.
Depending on the application, control units and switchgears that are not Exproof protected, as well as automation systems are installed in the enclosure. Modern, ready-to-use Exproof solutions – including the required ATEX or IECEx certification – are created with modular, ATEX certified pressurized enclosures from BARTEC. Pressure containment solutions are designed for a wide range of ambient temperatures in temperature classes T3 to T5
GET INFORMATION

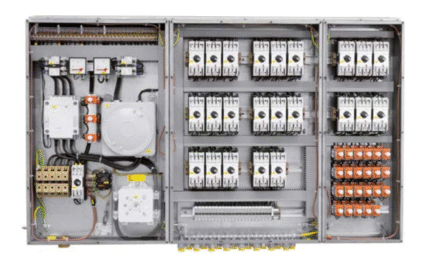

BARTEC – Ex-d Power Distribution Board
Technical Specifications:
- Exproof Zone Class: hazardous areas - Zone 1 / 21 (Gases) - Zone 2 / 22 (Dusts)
- Exproof Protection (Gases): II 2G Ex de ia/ib m [ia/ib] IIC T5, T4
- Exproof Protection (Dusts): II 2D Ex td A21 IP 66/65 T 80°C, T 95°C
- Protection Degree: IP65 / IP66
- Ambient Temperature: -20 °C ÷ +40 °C (-55°C ÷ +55°C)
- Body Material: Glass-Fiber Reinforced Polyester, Steel Sheet, Stainless Steel
- ATEX Certificate: DEKRA I3ATEXO2O9
- OTHER AVAILABLE CERTIFICATES : IECEx, CU TR
BARTEC – Ex-d Protected Exproof Distribution Board
Technical Specifications:
- Exproof Zone Class: hazardous areas - Zone 1 / 21 (Gases) - Zone 2 / 22 (Dusts)
- Exproof Protection (Gases): II 2G Ex d IIC T6..T3 Gb
- Exproof Protection (Dusts): II 2D Ex tb IIIC T85°C..T150°C Db
- Protection Degree: IP65 / IP66
- Power supply (PRC): Conventional ballast 230V - 50Hz (p.f. corrected - cos ρ ≥ 0,95)
- Ambient Temperature: -20 °C ÷ +40 °C (-55°C ÷ +55°C)
- Body Material: Glass-Fiber Reinforced Polyester, Steel Sheet, Stainless Steel
- ATEX Certificate: DEKRA I3ATEXO2O9
- OTHER AVAILABLE CERTIFICATES : IECEx, CU TR
