RAYTEC – SPARTAN SPX Linear LED High Output Linear Luminaire for Ex-Zone 1/21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection (Gases): Ex II 2G Ex e mb IIC T4 Gb
- Exproof Protection (Dusts): Ex II 2D Ex tb IIIC T75°C Db
- Protection Degree: IP66 / IP67
- Operating Voltage: 110-254V 50/60 Hz AC
- Low Voltage Options: 18-48V AC/ 18-69V DC and Extreme Low Voltage Option 12V AC/DC
- Ambient Temperature: -40°C to +55°C (It is -20°C to +50°C for Battery Emergency Types.)
- Body Material: Corrosion Resistant Aluminum, epoxy powder coated
- ATEX Certificate: CML14ATEX3119
- IECEx : IEC Ex CML 15.0001
- Other Certifications: UL/CSA, including C1D2; ABS Cert. #20-1990083-PDA

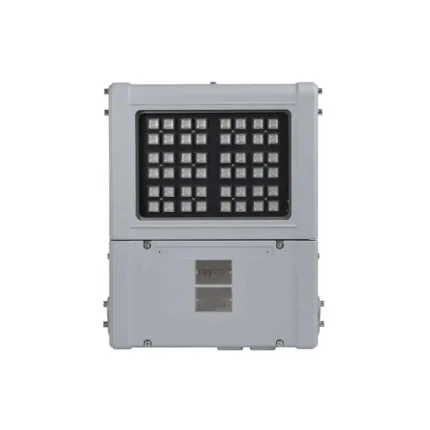

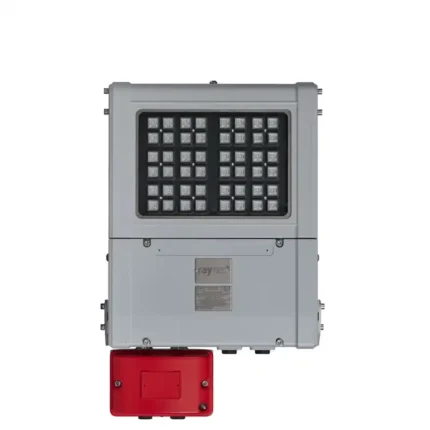

RAYTEC – SPARTAN SPX LED Zone 1 High Power Floodlight for Ex-Zone 1/21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection (Gases): Ex II 2G Ex db eb mb op is IIB+H2 T4 Gb
- Exproof Protection (Dusts): Ex II 2D Ex tb op is IIIC T104°C Db
- Protection Degree: IP66 / IP67
- Operating Voltage: 150-264V 50/60 Hz AC (110V AC Voltage Option is available.)
- Ambient Temperature: -50°C to +50°C
- Body Material: Corrosion Resistant Aluminum, epoxy powder coated
- ATEX Certificate: CML17ATEX1148
- IECEx : IEC Ex CML 17.0074
- Other Certifications: EAC Cert.; ABS Cert. # 15-LD1364539-1-PD
RAYTEC LED – FL Series LED Exproof Projector with Without Battery for Ex-Zone 1- 21
Technical Specifications:
- Exproof Zone Class: hazardous areas - Zone 1 (Gases) - Zone 21 (Dusts)
- Exproof Protection (Gases): Ex II 2 G Ex e mb op is IIC T4 Gb
- Exproof Protection (Dusts): Ex II 2 D Ex tb op is IIIC T82°C Db
- Protection Degree: IP66 / IP67
- Power supply: 110-254V 50/60 Hz AC
- Low voltage: 18-48V AC and 18-69V DC
- Extra low voltage: 12V AC/DC
- Ambient Temperature: -50 °C ÷ +55 °C (The low temperature is -20°C for the battery-powered Emergency features.)
- Body Material: Corrosion Resistant Aluminum, epoxy powder coated
- ATEX Certificate: CML13ATEX3007
- IECEx Certificate: IEC Ex CML 14.0001
- OTHER AVAILABLE CERTIFICATES : UL/CSA, including C1D2; ABS Cert. # 15-LD1364539-1-PD
