CMP-Products – TRITON (T3CDS) Type Double Tight Armored Exproof Cable Gland for Ex-Zone 1, 21 – 2, 22
Cable Equipment, All Cable Equipment, Exproof Products, Exproof All Products, Exproof Cable Gland, General
Technical Details
- Exproof Zone Class: Zone 1, 21 – Zone 2, 22
- Compatible double-tight cable gland for armored (steel and aluminum wire armor) cables
- Cable gland suitable for use in ex-proof (explosion proof) environments
- Special design to prevent cold flow effects
- Deluge protection feature is available as standard
- Thanks to its special conical structure, it is suitable for use in all types of mesh and wire armor.
- Body Material: Nickel Plated Brass – Solid Brass – Aluminum – Stainless Steel
- IP Protection Class: IP66 standard, optionally IP67 and IP68
- Operating Temperature: -60°C to +130°C standard
- Certification group: ATEX, IECEx, CSA, Marine, EAC

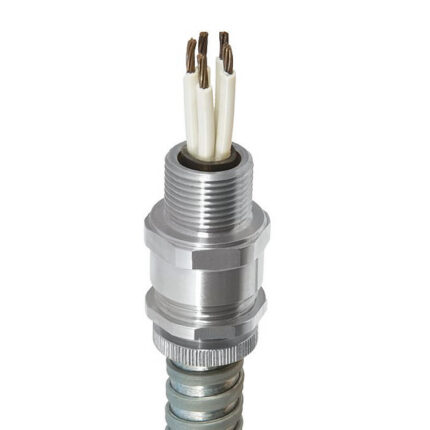

CMP Products – A2 Industrial Single Tightening Non-Armored Cable Gland
Technicial Specifications:
- Compatible single-tight cable gland for unarmored cables
- Industrial cable gland
- Body Material: Nickel plated brass – Brass – Stainless Steel – Aluminum
- It has deluge protection feature.
- IP Protection Class: IP66, IP67, IP68
- Operating Temperature: -60°C to +130°C standard
CMP Products – CW Type Industrial Single Crimp Unarmoured Cable Gland
Technicial Specifications:
- SINGLE tightening cable gland, compatible for armored cables
- Industrial cable gland
- Body Material: Nickel plated brass – Brass – Stainless Steel – Aluminum
- Deluge protection feature is added optionally
- IP Protection Class: IP66, IP67 and IP68 optional
- Operating Temperature: -60°C to +130°C standard
- EMC tests done
CMP Products – E1W Type Industrial Double Tight Armored Cable Gland
Technicial Specifications:
- Compatible double-tight cable gland for armored (steel and aluminum wire armor) cables
- Industrial cable gland
- Body Material: Nickel plated brass – Brass – Aluminum
- Deluge protection feature is optional
- IP Protection Class: IP66 standard, IP67 and IP68 optional
- Operating Temperature: -60°C to +130°C standard
- EMC tests done
CMP-Products – TSPe Series (Plastic) Single Crimp Non-Armored Exproof Cable Gland
Cable Equipment, All Cable Equipment, Exproof Products, Exproof All Products, Exproof Cable Gland, General
Technical Details
- Compatible single-tight cable gland for unarmored cables
- Ex-proof type, plastic cable gland
- It is halogen free
- Body Material: Polyamide
- It has a deluge protection feature
- IP Protection Class: IP66, IP67, IP68 & IP69
- Operating Temperature: -40°C to +100°C standard
CMP Products – PVC Shroud
Technical Specifications:
- CMP-Products cable gland covers are produced with 3 different materials.
- PVC : -60°C to +90°C
- LSF : -60°C to +130°C
- PCP : -60°C to +100°
CMP Products – Entry Thread Sealing Washers (ETS2)
Technical Specifications:
- Strength temperature: -60°C to +130°C
CMP Products – Cable Gland Locknuts
Technicial Specifications:
- Accessory Material: Solid Brass – Nickel Plated Brass – Aluminum – Stainless Steel
- LN* coded products are designed for standard applications
- HLN* coded products are designed for heavy duty work.
- Nickel plated brass code: **LN5
- Brass code: **LN
- Stainless steel code: **LN4
CMP Products – Earth Tags
Technicial Specifications:
- Accessory Material: Solid Brass – Nickel Plated Brass – Aluminum – Stainless Steel
- Nickel plated brass code: **ET5
- Brass code: **ET
- Stainless steel code: **ET4
CMP Products – SATURN QUAD Series Cable Cleats
Technicial Specifications:
- Certificate obtained from an independent organization in accordance with IEC 61914 Standard
- 152kA short circuit resistance
- 316L Stainless Steel Body
- Structure resistant to weather conditions and sunlight (UV)
- -50°C …+60°C standard operating temperature
- Fixing capacity in the cable outer diameter range of 19 mm – 71 mm
- 18 different QUAD size options
- Single bolt (M10) and two bolt (M10) fixing options
CMP Products – CONQUEROR Series Cable Cleats
Technicial Specifications:
- Certificate obtained from an independent organization in accordance with IEC 61914 Standard
- 170kA short circuit resistance
- 316L Stainless Steel Body
- Structure resistant to weather conditions and sunlight (UV)
- -50°C …+60°C standard operating temperature
- Wider cable tightening range thanks to adjustable hinge structure
- Fixing capacity in the cable outer diameter range of 23 mm – 130 mm
- 15 different Trefoil Structure size options
- Single bolt (M12) and two bolt (M10) fixing options
CMP Products – HURON Series Cable Cleats
Technicial Specifications:
- Certificate obtained from an independent organization in accordance with IEC 61914 Standard
- 84kA short circuit resistance
- 3mm Thickness 5000 Series Aluminum Body
- Structure resistant to weather conditions and sunlight (UV)
- -50°C …+60°C standard operating temperature
- Fixing capacity in the cable outer diameter range of 19 mm – 128 mm
- 23 different Trefoil Structure size options
- Single bolt (M10) and two bolt (M10) fixing options
