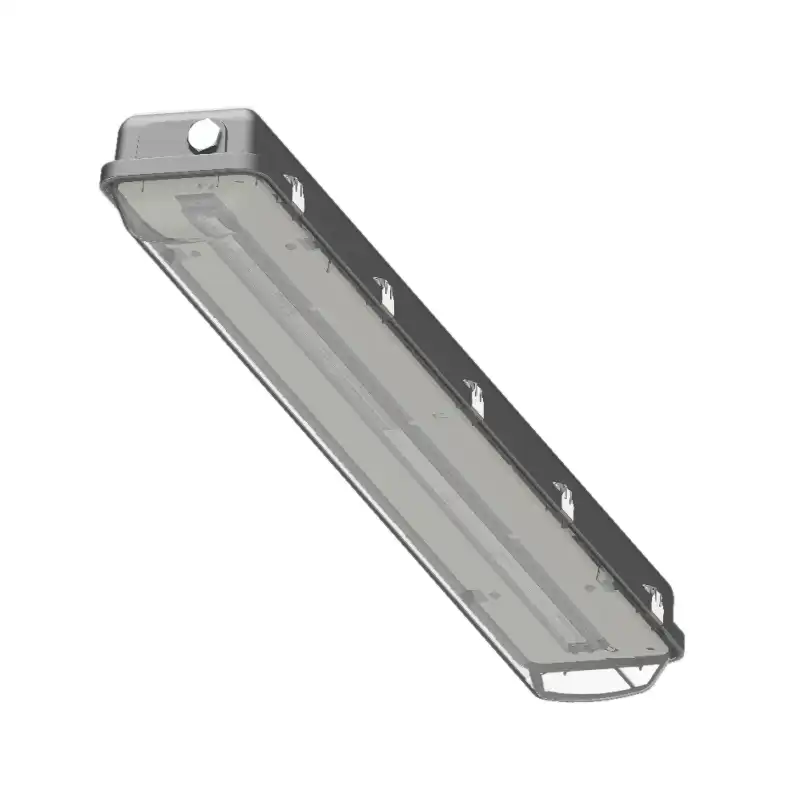

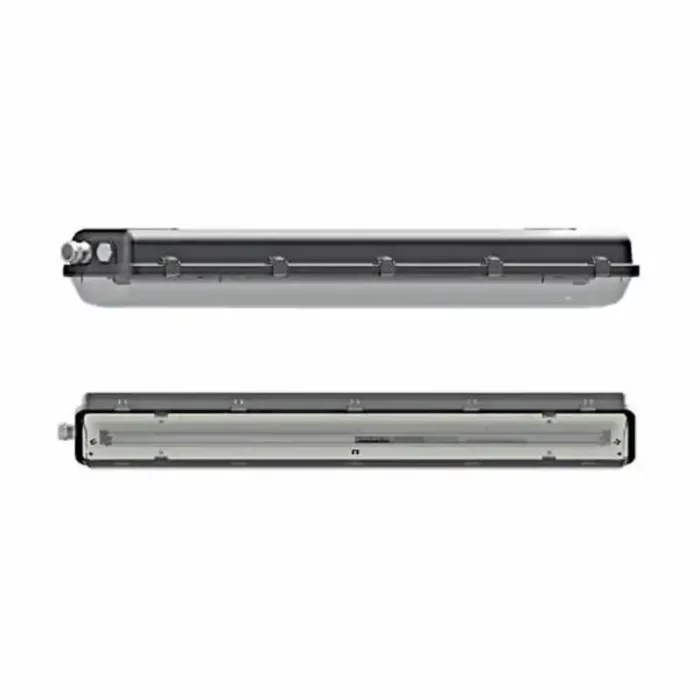

BARTEC – GLL Series Lighting fixtures for high efficiency LED strip lamps
Techical Properties
Exproof Zone Class: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts)
Exproof Protection (Gases): II 2G Ex db eb mb IIC T5 Gb
Exproof Protection (Dusts): II 2D Ex tb IIIC T85°C Db
Protection Degree: IP66
Power supply: 220-240 Vac electronic driver
50/60 Hz 176-280 Vdc electronic driver
Ambient Temperature: -20 °C ÷ +60 °C
Body Material: Glass fiber reinforced polyester resin self-extinguishing acc. to UL94
ATEX Certificate: INERIS 21 ATEX 0029X
IECEx : IECEx INE 21.0056X
Brand |
BARTEC |
---|
Parturient ut id tellus vulputatre ac ultrlices a part ouriesnt sapien dignissim partu rient a a inter drum vehicula. Ornare metus laoreet tincidunt eros rolem tristique pretium malada.
Cras rhoncus vivamus luctus platea arcu laoreet selm. Curae est condenectus sed hac a parturient vestibulum.
