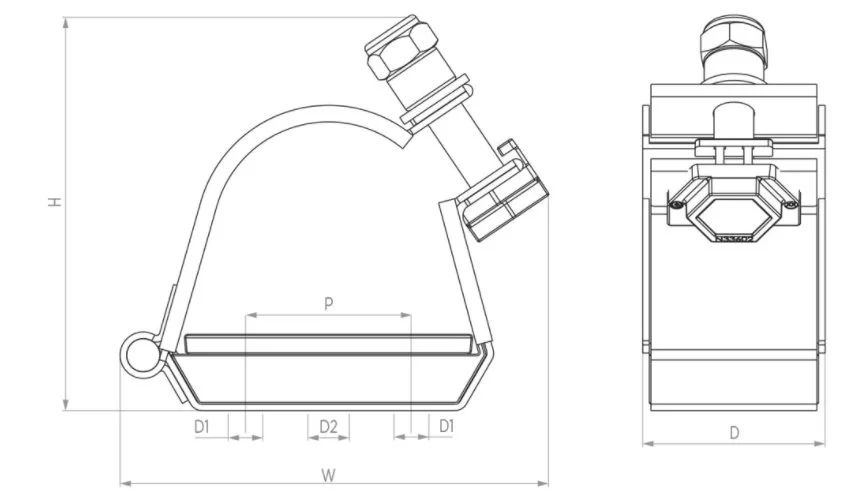

SOVEREIGN Series Cable Cleats
FEATURES
- Third party certification to IEC 61914
- 316L stainless steel
- 17 – 128mm in 24 sizes for trefoil formation /application
- Short circuit rating of 190kA peak fault
- Operating temperature -50°C to +60°C
- Liners are classified as Low Smoke & Fume (LSF),
- Zero Halogen (LS0H) and Phosphorus Free
- Combined single (M12) and two bolt (M10) fixing design
Categories: Cable Cleats, Cable Equipment, General, Metalic Cable Cleats
