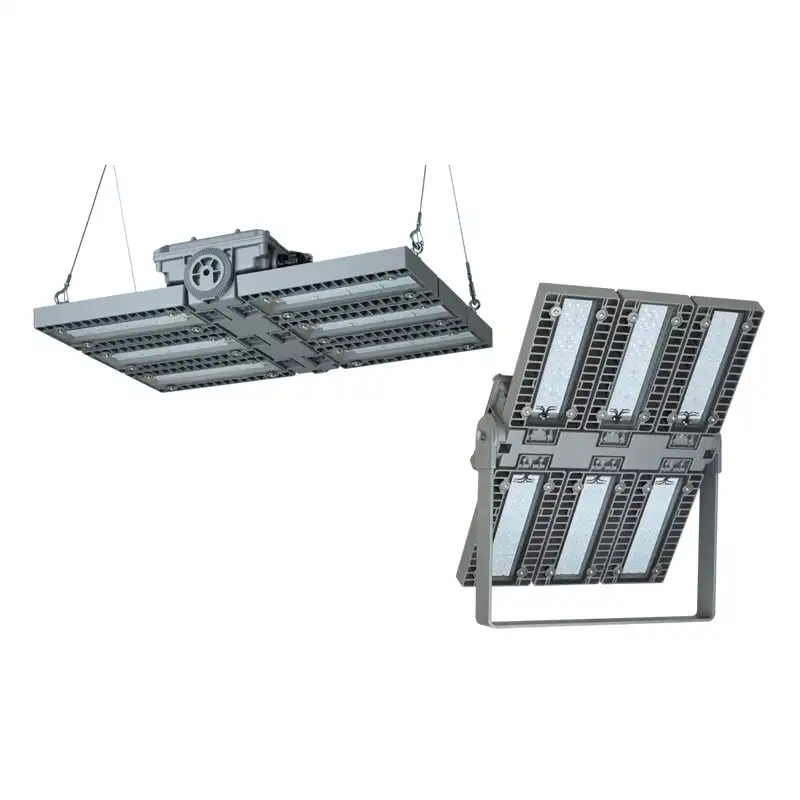

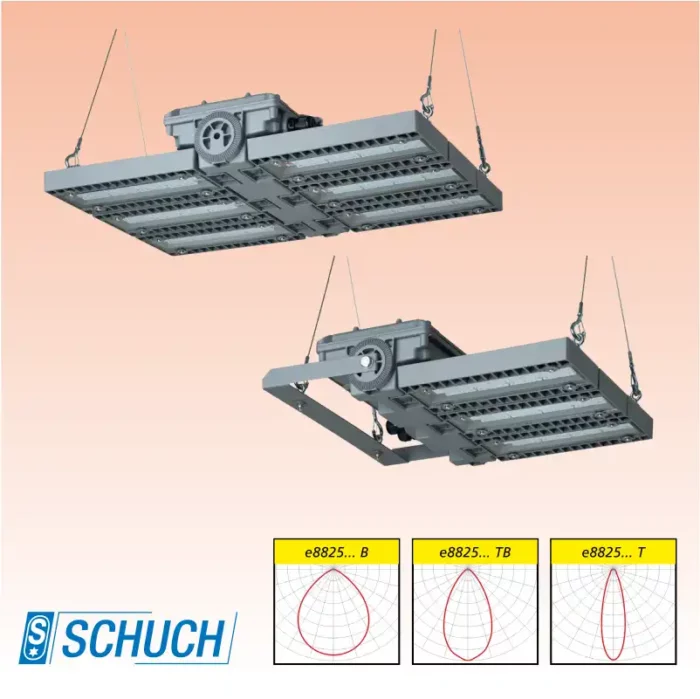

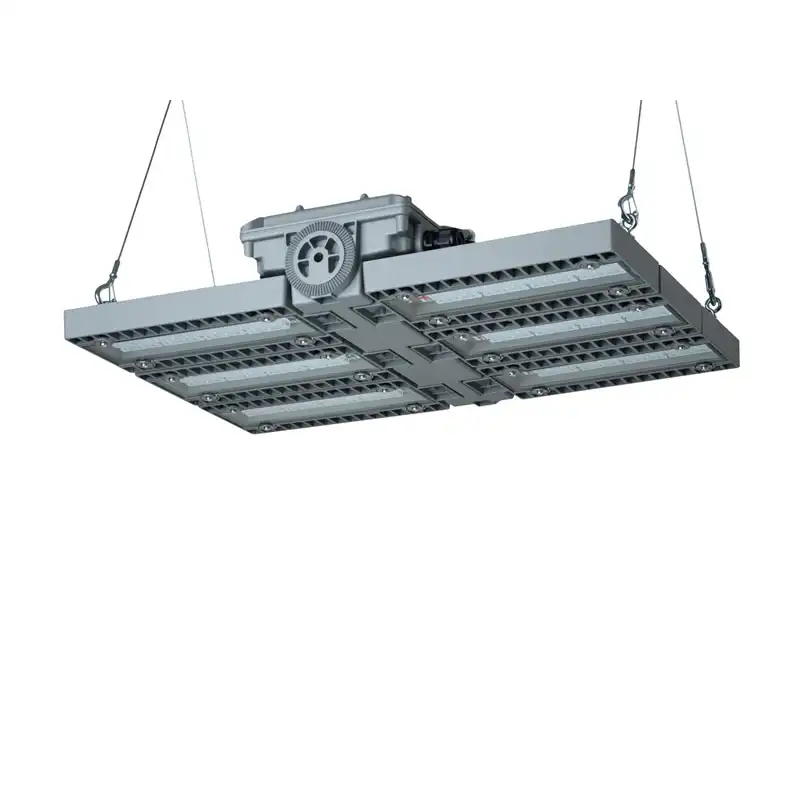

SCHUCH – e8825 Series LED High Bay Fitting for Ex-Zone (Zone 1, 21 / Zone 2, 22)
Technicial Specifications:
Exproof Zone Class: Zone 1, 21 / Zone 2, 22
Exproof Protection (Gas): II 2 G Ex eb mb q IIC T4 Gb
Exproof Protection (Dust): II 2 D Ex tb IIIC T100 °C Db
IP rating: IP66
Rated voltage: 220 – 240 V, 0 Hz, 50/60 Hz
Tₐ: -30 °C to +55 °C
Mounting material: Y-ropes 3301/3302 Y P, Ceiling brackets steel DW 8825 P
Housing Material: Aluminum Casting
ATEX: IBExU 20 ATEX 1117
IECEx : IECEx IBE 20.0028
Categories: Exproof All Products, Exproof Lighting Fixtures, Exproof Products, General
