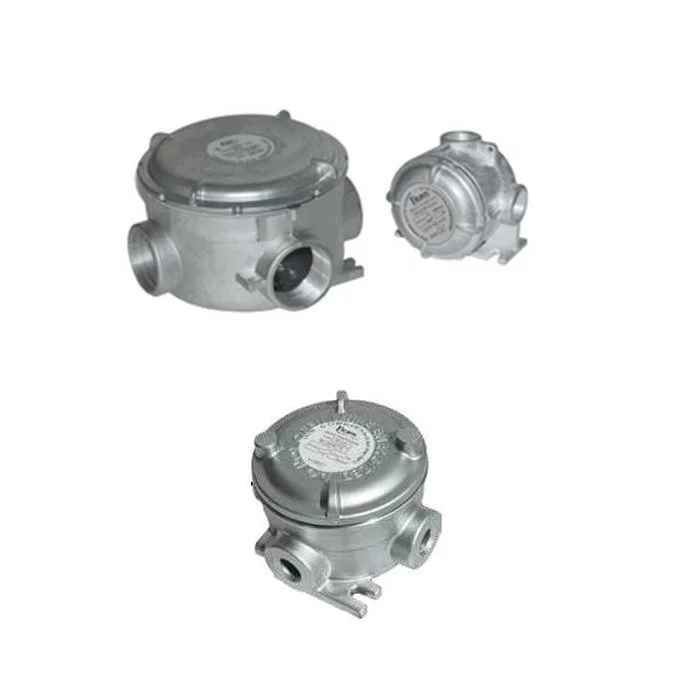

BARTEC – Ex-d Protected GUA / EAHF Series Exproof Junction Boxesfor Ex-Zone 1-21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection: Ex II 2 G Ex db IIC T6…T3 Gb / Ex II 2 D Ex tb IIIC T85°C…T200°C Db
- Protection Degree: IP66
- Ambient Temperature: -60°C ÷ +130°C
- Body Material: Corrosion Resistant Copper-free Aluminum or Stainless Steel AISI 316L
- ATEX Certificate: INERIS 03 ATEX 0048X
- OTHER AVAILABLE CERTIFICATES: IECEx INE 12.0021X, INMETRO: CEPEL 12.2193, EAC: TC RU C-IT.ГБ02.В.00689/18, RMRS: 19.02521.280
Description
Additional information
Brand |
BARTEC |
---|
Reviews (0)
Be the first to review “BARTEC – Ex-d Protected GUA / EAHF Series Exproof Junction Boxesfor Ex-Zone 1-21” Cancel reply
About brand
Parturient ut id tellus vulputatre ac ultrlices a part ouriesnt sapien dignissim partu rient a a inter drum vehicula. Ornare metus laoreet tincidunt eros rolem tristique pretium malada.
Cras rhoncus vivamus luctus platea arcu laoreet selm. Curae est condenectus sed hac a parturient vestibulum.
Related products
BARTEC – Exproof Ex-de Stainless Steel Control Boxes (ComEx) for Ex-Zone 1- 21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection (Gases): Ex II 2G Ex db eb IIC T6 Gb
- Exproof Protection (Dusts): Ex II 2D Ex tb IIIC T80°C Db
- Protection Degree: IP 65/IP 66
- Ambient Temperature: -55°C ÷ +60°C
- Body Material: Stainless Steel 316 L
- ATEX Certificate: IBExU 12 ATEX 1099
- OTHER AVAILABLE CERTIFICATES: IECEx IBE 12.0031, TC RU C-DE.BH02.B.00177
BARTEC – Ex-e Polyester Exproof Terminal Box for Ex-Zone 1- 21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection (Gases): Ex II 2G Ex eb IIA, IIB, IIC T6, T5 Gb / Ex II 2G Ex ia/ib IIA, IIB, IIC T6, T5 Gb
- Exproof Protection (Dusts): Ex II 2D Ex tb IIIC T 80 °C, T 95° C Db IP66 / Ex II 2D Ex ia/ib IIIC T 80 °C, T 95° C Db
- Protection Degree: IP66
- Ambient Temperature: -20°C ÷ +40°C (-55°C ÷ +55°C in certain cases)
- Body Material: Glass Fiber Reinforced Polyester
- ATEX Certificate: PTB 08 ATEX 1064 X
- OTHER AVAILABLE CERTIFICATES : IECEx PTB 09.0009X-5, TC RU C-SI.GB08.B.02262
BARTEC – Ex-d Power Distribution Board
Technical Specifications:
- Exproof Zone Class: hazardous areas - Zone 1 / 21 (Gases) - Zone 2 / 22 (Dusts)
- Exproof Protection (Gases): II 2G Ex de ia/ib m [ia/ib] IIC T5, T4
- Exproof Protection (Dusts): II 2D Ex td A21 IP 66/65 T 80°C, T 95°C
- Protection Degree: IP65 / IP66
- Ambient Temperature: -20 °C ÷ +40 °C (-55°C ÷ +55°C)
- Body Material: Glass-Fiber Reinforced Polyester, Steel Sheet, Stainless Steel
- ATEX Certificate: DEKRA I3ATEXO2O9
- OTHER AVAILABLE CERTIFICATES : IECEx, CU TR
BARTEC-FN – SFD – SFDE Series Exproof Floodlight with Halogen and High Pressure Discharge Lampfor Ex-Zone 1 – 21
Technical Specifications:
- Exproof Zone Class: Zone 1 - 21
- Exproof Protection (Gases): Ex II 2G Ex d IIB + H2 T3/T2 Gb & Ex II 2 G Ex de IIB + H2 T3/T2 Gb
- Exproof Protection (Dusts): Ex II 2D Ex tb IIIC T200°C … T240°C Db
- Protection Degree: IP66
- Ambient Temperature: -20 °C ÷ +60 °C
- Body Material: Corrosion Resistant Copper-free Aluminum
- Diffuser : Toughened Glass
- ATEX Certificate: INERIS 01 ATEX 0018
- OTHER AVAILABLE CERTIFICATES : IECEx INE 15.0003X, CEPEL 15.2363X, TC RU C-IT.GB08.B.01342, RINA: ELE18111CS_014, RMRS: 13.03516.315
BARTEC – EVAC lighting fixtures For incandescent and discharge lamps for Ex-Zone 1/2 – 21/22
Technical Specifications:
- Exproof Zone Class: hazardous areas - Zone 1 / 2 (Gases) - Zone 21 / 22 (Dusts)
- Exproof Protection (Gases): II 2 G Ex d IIC T6÷T2 Gb
- Exproof Protection (Dusts): II 2 D Ex tb IIIC T85°C-T225°C Db
- Protection Degree: IP66
- Power supply (PRC): Conventional ballast 230V - 50Hz (p.f. corrected - cos ρ ≥ 0,95)
- Ambient Temperature: -60 °C ÷ +60 °C
- Body Material: Marine grade copper free aluminium (control gear & lamp body)
- ATEX Certificate: INERIS 01 ATEX 0054X
- OTHER AVAILABLE CERTIFICATES : IECEx: IECEx INE 13.0075X - INMETRO: CEPEL 14.2311X - EAC: TC RU C-IT.ГБ08.В.01342 (-60°C÷+60°C) - RINA: ELE18111CS_015 - RUSSIAN MARINE CERTIFICATE (RMRS): 13.03516.315
SCHUCH – e855 Series With / Without Battery LED Exproof Exit Luminaire (Zone 1, 21 / Zone 2, 22)
Technical Properties
- Exproof Zone Class: Zone 1, 21 / Zone 2, 22
- Exproof Protection (Gas): II 2 G Ex eb mb op is q IIC T4 Gb
- Exproof Protection (Dust): II 2 D Ex op is tb IIIC T80°C Db
- Sealing Protection: IP66
- Operating Voltage: 220 – 240 V, 0 Hz, 50/60 Hz
- Operating Ambient Temperature: -30 °C to +60 °C
- Body Material: GRP
- ATEX Certificate: IBExU17ATEX1132
- IECEx : IECEx IBE 17.0037
- Emergency Battery (e856 Series) Options Available!
BARTEC – Ex-e Stainless Steel Exproof Terminal Box for Ex-Zone 1-21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection: Ex II 2G Ex eb IIC T6, T5 Gb / Ex II 2D Ex tb IIIC T80 °C, T95 °C Db
- Protection Degree: IP66
- Ambient Temperature: -20°C ÷ +40°C (-55°C ÷ +55°C in certain cases)
- Body Material: AISI 316 L or AISI 304 Stainless Steel
- ATEX Certificate: IBExU 99 ATEX 1096
- OTHER AVAILABLE CERTIFICATES: IECEx IBE 09.0017, TC RU C-SI.GB08.B.02262
BARTEC FN – Exproof Ex-d Flameproof Aluminum Control Boxes for Ex-Zone 1- 21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection (Gases): Ex II 2 G Ex d IIC T6/T5 Gb
- Exproof Protection (Dusts): Ex II 2 D Ex tb IIIC T85°C/T100°C Db
- Protection Degree: IP 66
- Ambient Temperature: -60°C ÷ +60°C
- Body Material: Corrosion Resistant Aluminum
- ATEX Certificate: INERIS 04 ATEX 0076X
- OTHER AVAILABLE CERTIFICATES: IECEx INE 11.0033X, TC RU C-IT.BH02.B.00608, (RMRS): 19.02523.280
