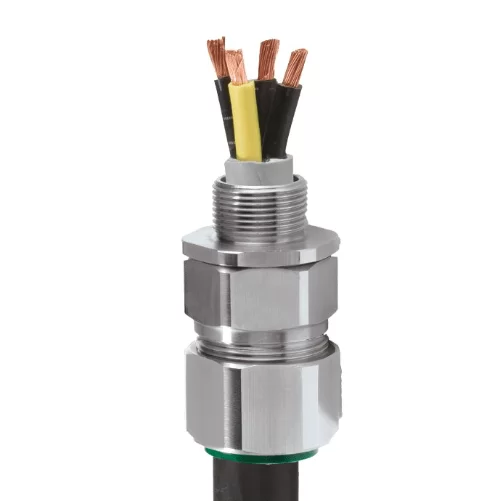

CMP Products – CW Type Industrial Single Crimp Unarmoured Cable Gland

Technicial Specifications:

SINGLE tightening cable gland, compatible for armored cables
Industrial cable gland
Body Material: Nickel plated brass – Brass – Stainless Steel – Aluminum
Deluge protection feature is added optionally
IP Protection Class: IP66, IP67 and IP68 optional
Operating Temperature: -60°C to +130°C standard
EMC tests done

Technical Table

Cable Gland Size	Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)					Cable Bedding Diameter ‘A’	Overall Cable Diameter ‘B’		Armour Range		Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option	Cable Bedding Diameter ‘A’	Overall Cable Diameter ‘B’		Armour Range		Across Flats ‘D’	Across Corners ‘D’		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) ‘E’	NPT	Thread Length (NPT) “E”	NPT	Max	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20S16	M20	10.0	½’	19.9	¾’	8.7	6.1	13.1	0.8	1.25	24.0	26.4	48.0	20S16	CW	1RA	PVC04	0.1
20S	M20	10.0	½’	19.9	¾’	11.7	9.5	15.9	0.8	1.25	24.0	26.4	48.0	20S	CW	1RA	PVC04	0.14
20	M20	10.0	½’	19.9	¾’	14.0	12.5	20.9	0.8	1.25	30.5	33.6	48.0	20	CW	1RA	PVC06	0.18
25S	M25	10.0	¾’	20.2	1′	20.0	14.0	22.0	1.25	1.6	37.5	41.3	56.0	25S	CW	1RA	PVC09	0.257
25	M25	10.0	¾’	20.2	1′	20.0	18.2	26.2	1.25	1.6	37.5	41.3	56.0	25	CW	1RA	PVC09	0.257
32	M32	10.0	1′	25.0	1 ¼’	26.0	23.7	33.9	1.6	2.0	46.0	50.6	54.0	32	CW	1RA	PVC11	0.376
40	M40	15.0	1 ¼’	25.6	1 ½’	32.2	27.9	40.4	1.6	2.0	55.0	60.5	58.0	40	CW	1RA	PVC15	0.63
50S	M50	15.0	1 ½’	26.1	2′	38.2	35.2	46.7	2.0	2.5	60.0	66.0	61.0	50S	CW	1RA	PVC18	0.757
50	M50	15.0	2′	26.9	2 ½’	44.1	40.4	53.0	2.0	2.5	70.1	77.1	60.0	50	CW	1RA	PVC21	0.862
63S	M63	15.0	2′	26.9	2 ½’	50.0	45.6	59.4	2.0	2.5	75.0	82.5	74.0	63S	CW	1RA	PVC23	1.39
63	M63	15.0	2 ½’	39.9	3′	56.0	54.6	65.8	2.0	2.5	80.0	88.0	71.0	63	CW	1RA	PVC25	1.36
75S	M75	15.0	2 ½’	39.9	3′	62.0	59.0	72.0	2.0	2.5	90.0	99.0	86.0	75S	CW	1RA	PVC28	2.307
75	M75	15.0	3′	41.5	3 ½’	64.2	66.7	78.4	2.5	3.0	100.0	110.0	82.0	75	CW	1RA	PVC30	2.909
90	M90	24.0	3 ½’	42.8	4′	78.6	76.2	90.3	3.15	4.0	114.3	125.7	95.0	90	CW	1RA	PVC32	3.858
100	M100	24.0	4′	44.0	5′	91.0	86.1	101.4	3.15	4.0	123.0	135.3	95.0	100	CW	1RA	LSF33	4.958
115	M115	24.0	4′	44.0	5′	98.0	101.5	110.2	3.15	4.0	133.4	146.7	107.5	115	CW	1RA	LSF34	5.058
130	M130	24.0	5′	46.8	–	115.0	110.2	123.2	3.15	4.0	152.4	167.6	110.0	130	CW	1RA	LSF35	6.158
Dimensions displayed in millimeters unless otherwise stated
