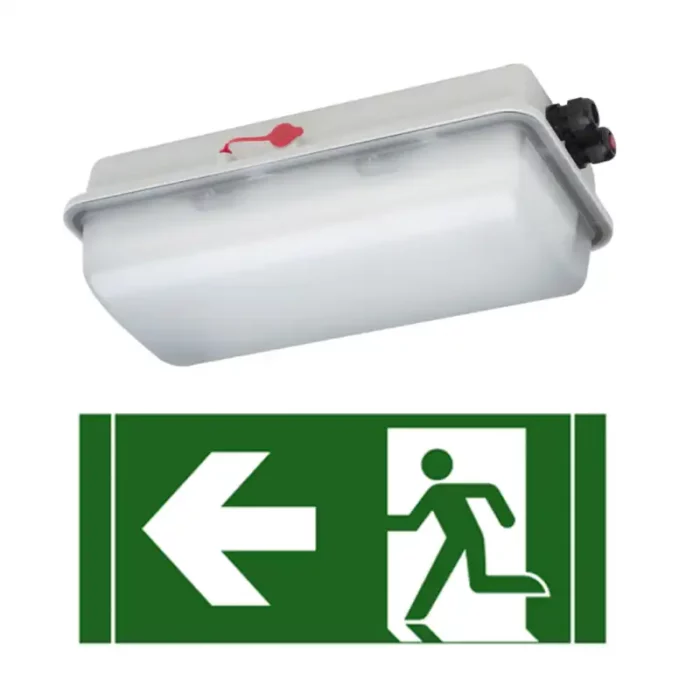

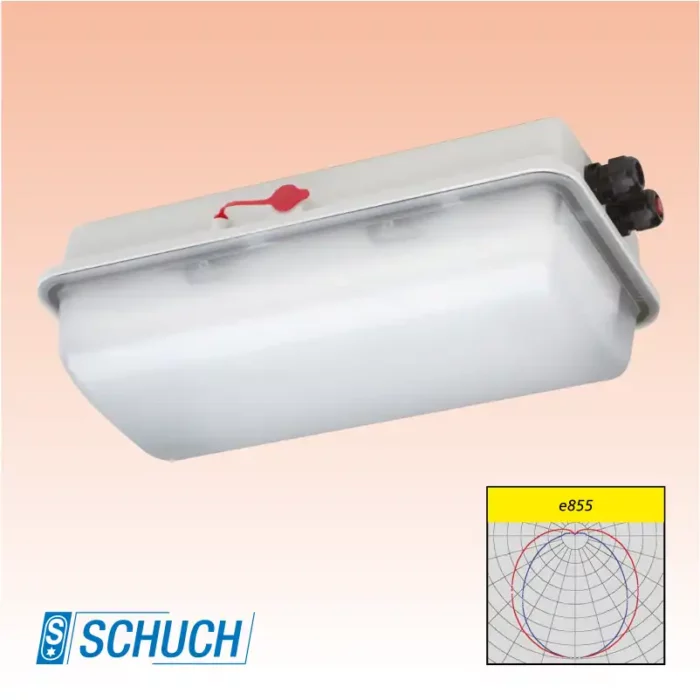

SCHUCH – e855 Series With / Without Battery LED Exproof Exit Luminaire (Zone 1, 21 / Zone 2, 22)
Technical Properties
- Exproof Zone Class: Zone 1, 21 / Zone 2, 22
- Exproof Protection (Gas): II 2 G Ex eb mb op is q IIC T4 Gb
- Exproof Protection (Dust): II 2 D Ex op is tb IIIC T80°C Db
- Sealing Protection: IP66
- Operating Voltage: 220 – 240 V, 0 Hz, 50/60 Hz
- Operating Ambient Temperature: -30 °C to +60 °C
- Body Material: GRP
- ATEX Certificate: IBExU17ATEX1132
- IECEx : IECEx IBE 17.0037
- Emergency Battery (e856 Series) Options Available!
Categories: Exproof Lighting Fixtures, Exproof Products, General
Description
Additional information
Brand |
Schuch |
---|
Reviews (0)
Be the first to review “SCHUCH – e855 Series With / Without Battery LED Exproof Exit Luminaire (Zone 1, 21 / Zone 2, 22)” Cancel reply
About brand
Parturient ut id tellus vulputatre ac ultrlices a part ouriesnt sapien dignissim partu rient a a inter drum vehicula. Ornare metus laoreet tincidunt eros rolem tristique pretium malada.
Cras rhoncus vivamus luctus platea arcu laoreet selm. Curae est condenectus sed hac a parturient vestibulum.
Related products
BARTEC – GLL Series Lighting fixtures for high efficiency LED strip lamps
Techical Properties
Exproof Zone Class: hazardous areas - Zone 1 / 2 (Gases) - Zone 21 / 22 (Dusts)
Exproof Protection (Gases): II 2G Ex db eb mb IIC T5 Gb
Exproof Protection (Dusts): II 2D Ex tb IIIC T85°C Db
Protection Degree: IP66
Power supply: 220-240 Vac electronic driver
50/60 Hz 176-280 Vdc electronic driver
Ambient Temperature: -20 °C ÷ +60 °C
Body Material: Glass fiber reinforced polyester resin self-extinguishing acc. to UL94
ATEX Certificate: INERIS 21 ATEX 0029X
IECEx : IECEx INE 21.0056X
GET INFORMATION
SCHUCH – Series e865 LED-Light Fitting for Ex-Zone 1/21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21 / Zone 2, 22
- Exproof Protection (Gases): II 2 G Ex eb mb op is q IIC T4 Gb
- Exproof Protection (Dusts): II 2 D Ex op is tb IIIC T80°C Db
- Protection Degree: IP66
- Power supply: 220-240V AC/DC, 0 or 50/60Hz
- Ambient Temperature: -30 °C to +55 °C
- Body Material: GRP
- ATEX Certificate: IBExU 16 ATEX 1008
- IECEx : IECEx IBE 16.0010
- Emergency Battery (e864 Series) Options Available!
BARTEC – Exproof Ex-e High Voltage / High Current Junction Boxes (≤ 10kV & ≤ 1500 Amp) for Ex-Zone 1
Technicial Specifications:
- Exproof Zone Class: Zone 1
- Exproof Protection: Ex II 2G Ex e II T6/T5/T4
- Protection Degree: IP66 (IP67 and IP68 optional)
- Ambient Temperature: -50°C ÷ +40°C (-50°C ÷ +60°C, in certain cases)
- Body Material: Stainless Steel 316L
- ATEX Certificate: DNV-2003-OSL-ATEX-0042
BARTEC – Ex-e Stainless Steel Exproof Terminal Box for Ex-Zone 1-21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection: Ex II 2G Ex eb IIC T6, T5 Gb / Ex II 2D Ex tb IIIC T80 °C, T95 °C Db
- Protection Degree: IP66
- Ambient Temperature: -20°C ÷ +40°C (-55°C ÷ +55°C in certain cases)
- Body Material: AISI 316 L or AISI 304 Stainless Steel
- ATEX Certificate: IBExU 99 ATEX 1096
- OTHER AVAILABLE CERTIFICATES: IECEx IBE 09.0017, TC RU C-SI.GB08.B.02262
BARTEC – Ex-e Polyester Exproof Terminal Box (Hinged Cover) for Ex-Zone 1-21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection: Ex II 2G Ex e ia/ib IIC T6, T5 Gb / Ex II 2D Ex tb IIIC T80 °C, T95 °C Db IP 66
- Protection Degree: IP66
- Ambient Temperature: -30°C ÷ +40°C (-30°C ÷ +55°C in certain cases)
- Body Material: Glass fiber Reinforced Polyester
- ATEX Certificate: PTB 08 ATEX 1066
- OTHER AVAILABLE CERTIFICATES: IECEx PTB 13.0017, TC RU C-SI.GB08.B.02262
BARTEC – Ex-d Protected GUA / EAHF Series Exproof Junction Boxesfor Ex-Zone 1-21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection: Ex II 2 G Ex db IIC T6…T3 Gb / Ex II 2 D Ex tb IIIC T85°C…T200°C Db
- Protection Degree: IP66
- Ambient Temperature: -60°C ÷ +130°C
- Body Material: Corrosion Resistant Copper-free Aluminum or Stainless Steel AISI 316L
- ATEX Certificate: INERIS 03 ATEX 0048X
- OTHER AVAILABLE CERTIFICATES: IECEx INE 12.0021X, INMETRO: CEPEL 12.2193, EAC: TC RU C-IT.ГБ02.В.00689/18, RMRS: 19.02521.280
RAYTEC LED – SPARTAN SPX Exproof Projector for Ex-Zone 1- 21
Technical Specifications:
- Exproof Zone Class: hazardous areas - Zone 1 (Gases) - Zone 21 (Dusts)
- Exproof Protection (Gases): Ex II 2 G Ex e mb op is IIC T4 Gb
- Exproof Protection (Dusts): Ex II 2 D Ex tb op is IIIC T82°C Db
- Protection Degree: IP66 / IP67
- Power supply: 110-254V 50/60 Hz AC
- Low voltage: 18-48V AC and 18-69V DC
- Extra low voltage: 12V AC/DC
- Ambient Temperature: -50 °C ÷ +55 °C (The low temperature is -20°C for the battery-powered Emergency features.)
- Body Material: Corrosion Resistant Aluminum, epoxy powder coated
- ATEX Certificate: CML13ATEX3007
- IECEx Certificate: IEC Ex CML 14.0001
- OTHER AVAILABLE CERTIFICATES : UL/CSA, including C1D2; ABS Cert. # 15-LD1364539-1-PD
RAYTEC – SPARTAN SPX LED Zone 1 High Power Floodlight for Ex-Zone 1/21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection (Gases): Ex II 2G Ex db eb mb op is IIB+H2 T4 Gb
- Exproof Protection (Dusts): Ex II 2D Ex tb op is IIIC T104°C Db
- Protection Degree: IP66 / IP67
- Operating Voltage: 150-264V 50/60 Hz AC (110V AC Voltage Option is available.)
- Ambient Temperature: -50°C to +50°C
- Body Material: Corrosion Resistant Aluminum, epoxy powder coated
- ATEX Certificate: CML17ATEX1148
- IECEx : IEC Ex CML 17.0074
- Other Certifications: EAC Cert.; ABS Cert. # 15-LD1364539-1-PD
