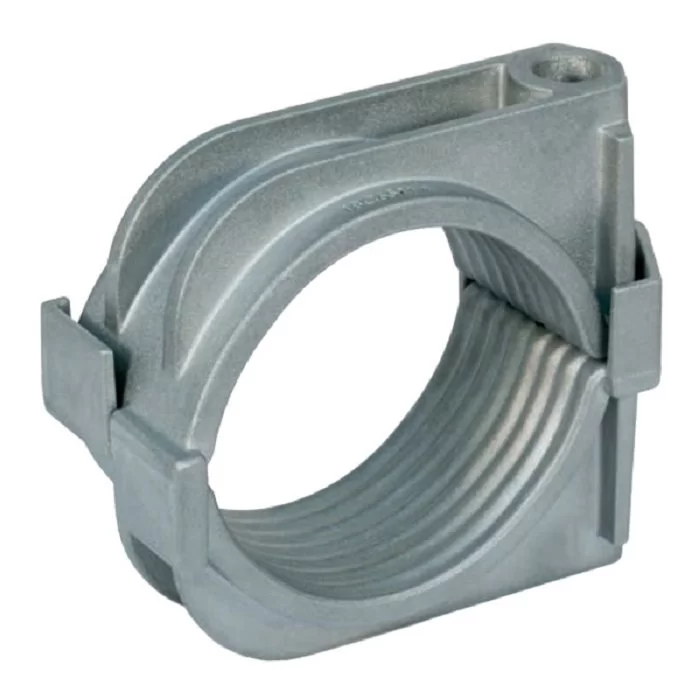

CMP Products – VALIANT Series Single Cable Cleats
Technicial Specifications:
- Certificate obtained from an independent organization in accordance with IEC 61914:2009 Standard
- Body made of aluminum casting material
- Structure resistant to weather conditions and sunlight (UV)
- -60°C…+150°C standard operating temperature
- Fixing capacity in the cable outer diameter range of 10 mm – 71 mm
- 12 different size options
- Single bolt fixing design
