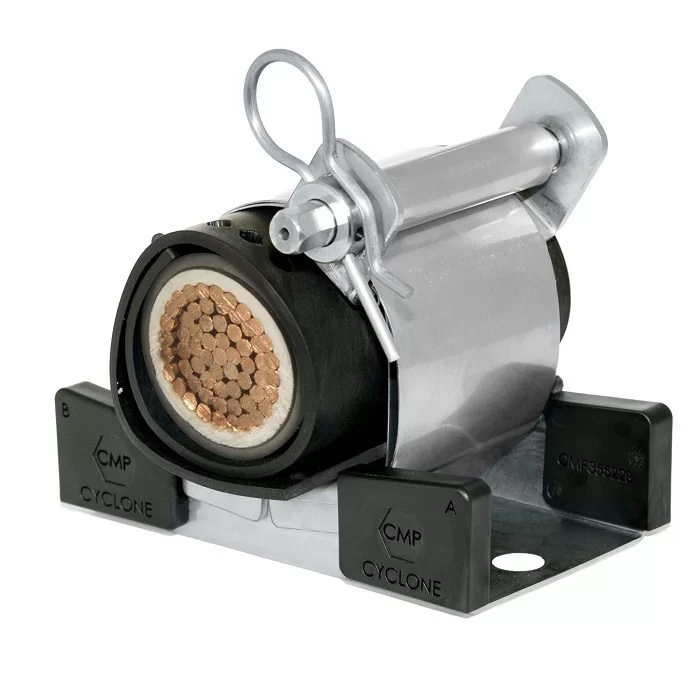

CMP Products – CYCLONE-2 Type Cable Cleats
Technicial Specifications:
- Certificate obtained from an independent organization in accordance with IEC 61914:2009 Standard
- 151kA short circuit resistance
- 316L Stainless Steel Body
- Structure resistant to weather conditions and sunlight (UV)
- -50°C …+40°C standard operating temperature
- Fixing range for Trefoil cables 24 mm – 145 mm
- Fixing range for single cables 36 mm – 165 mm
- Fixing range for quad cables 21 mm – 124 mm
- Single bolt (M12) or double bolt (M10) fixing design
