Providing high quality light with low glare and high efficiency!
THORNECO – EMMA LED Batten
Meet Emma

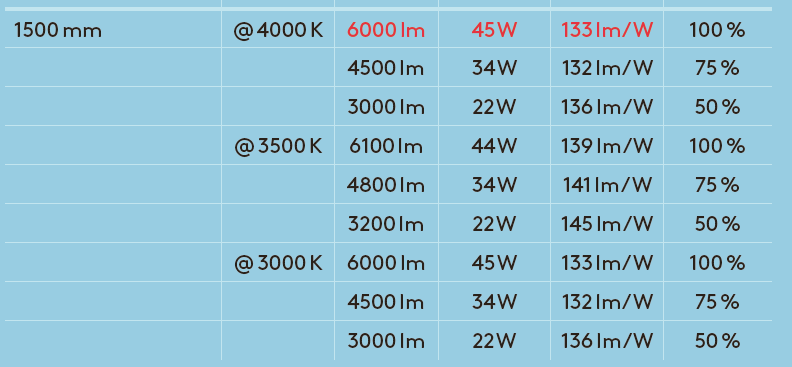

- FLEX Feature (Lumen switch): Decide on your lumen package per lumen switch directly on site for three sizes (600 mm, 1200 mm and 1500 mm)
- VARIO Feature (Colour temperature switch): 3000 K (warm white), 3500 K or 4000 K (neutral white)
- Fully homogeneous illumination
- Elegant design: lightweight brushed aluminum profile
- High efficacy of up to 145 lm/W – exceeding building regulation requirements

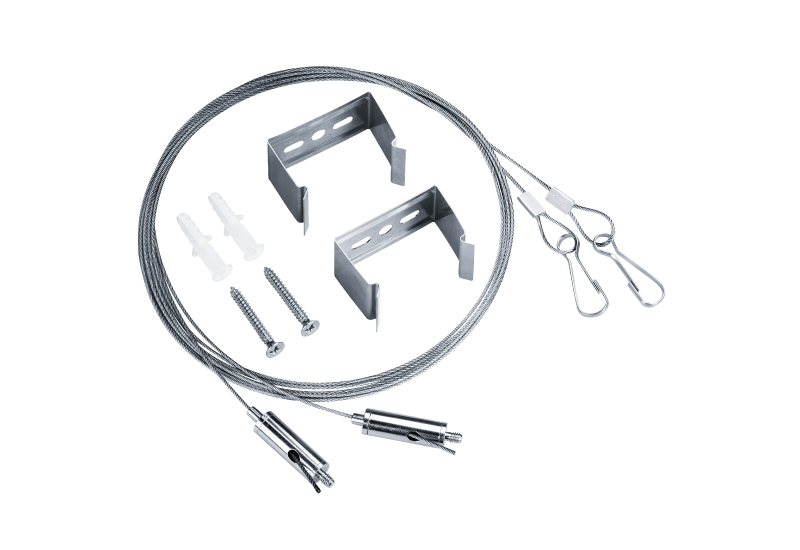

- Mounting directly onto ceiling or by using flexible mounting brackets for any fixing hole distance
Please find Circuit Breaker information in the Catalogue Section
Categories: Band Lighting Luminaires, General, Interior Lighting, Lighting Products
Description
Additional information
Brand |
thorn-eco |
---|
Reviews (0)
Be the first to review “THORNECO – EMMA LED Batten” Cancel reply
About brand
Parturient ut id tellus vulputatre ac ultrlices a part ouriesnt sapien dignissim partu rient a a inter drum vehicula. Ornare metus laoreet tincidunt eros rolem tristique pretium malada.
Cras rhoncus vivamus luctus platea arcu laoreet selm. Curae est condenectus sed hac a parturient vestibulum.
Related products
SCHUCH – e8825 Series LED High Bay Fitting for Ex-Zone (Zone 1, 21 / Zone 2, 22)
Technicial Specifications:
Exproof Zone Class: Zone 1, 21 / Zone 2, 22
Exproof Protection (Gas): II 2 G Ex eb mb q IIC T4 Gb
Exproof Protection (Dust): II 2 D Ex tb IIIC T100 °C Db
IP rating: IP66
Rated voltage: 220 - 240 V, 0 Hz, 50/60 Hz
Tₐ: -30 °C to +55 °C
Mounting material: Y-ropes 3301/3302 Y P, Ceiling brackets steel DW 8825 P
Housing Material: Aluminum Casting
ATEX: IBExU 20 ATEX 1117
IECEx : IECEx IBE 20.0028
GET INFORMATION
RAYTEC LED – SPARTAN SPX Exproof Projector for Ex-Zone 1- 21
Technical Specifications:
- Exproof Zone Class: hazardous areas - Zone 1 (Gases) - Zone 21 (Dusts)
- Exproof Protection (Gases): Ex II 2 G Ex e mb op is IIC T4 Gb
- Exproof Protection (Dusts): Ex II 2 D Ex tb op is IIIC T82°C Db
- Protection Degree: IP66 / IP67
- Power supply: 110-254V 50/60 Hz AC
- Low voltage: 18-48V AC and 18-69V DC
- Extra low voltage: 12V AC/DC
- Ambient Temperature: -50 °C ÷ +55 °C (The low temperature is -20°C for the battery-powered Emergency features.)
- Body Material: Corrosion Resistant Aluminum, epoxy powder coated
- ATEX Certificate: CML13ATEX3007
- IECEx Certificate: IEC Ex CML 14.0001
- OTHER AVAILABLE CERTIFICATES : UL/CSA, including C1D2; ABS Cert. # 15-LD1364539-1-PD
BARTEC – Ex-e Medium Voltage Terminal Boxes (6kV to 10kV) for Ex-Zone 1-21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection: Ex II 2G Ex e IIC T6/T5 Gb / Ex II 2D Ex tb IIIC T80 °C/T95 °C Db
- Protection Degree: IP66
- Ambient Temperature: -20°C ÷ +40°C (-55°C ÷ +55°C in certain cases)
- Body Material: Polyester or Stainless Steel
- ATEX Certificate: IBExU 13 ATEX 1001
Toshiba MV Voltage Regulator
MONOPHAZE MV REGULATOR - Product Description
Load changes in electrical systems over the years cause voltage imbalances (voltage rise or fall) in the energy supply system. This harms the power quality. To solve this problem, it is not economically reasonable to reorganize the overhead lines that have been made so far. Apart from this, methods such as the following are used to correct the voltage value;
To increase the step value of the power transformers in the step-down centers,
To make power factor correction by means of capacitor banks,
Establishing new substations.
Medium Voltage Mono-Phase Voltage Regulator has been proven to be the best cost/benefit solution to power quality problems caused by voltage imbalances all over the world. This solution can be easily used in downstream substations, private or operational substations with its flexible installation convenience. Making the voltage regulation from MV (medium voltage) to MV (medium voltage) provides both cost and ease of use compared to other solutions.
GET INFORMATION
BARTEC- Series FN – SFLA / SFLP / SFLJ Lighting Fixtures for LED lamps for Ex-Zone 2/22
Technicial Specifications:
- Exproof Zone Class: Zone 2, 22
- Exproof Protection: II 3 G Ex ec IIC T4 Gc, II 3 D Ex tc IIIB T115°C Dc
- Protection Degree: IP66
- Ambient Temperature: -40°C to +60°C
- Body Material: Aluminum of Copper parts Suitable for High Corrosive Environment
- Diffuser : Toughened Glass (4mm)
- ATEX Certificate: INERIS 19 ATEX 3010X
- IECEx : IECEx IBE 16.0010
- EAC: TC RU C-IT.BH02.B.00602
BARTEC – Ex-e Aluminum Terminal Exproof Box for Ex-Zone 1- 21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection (Gases): Ex II 2G Ex e ia/ib IIA, IIB, IIC T6, T5 Gb
- Exproof Protection (Dusts): Ex II 2D Ex tb IIIC T80 °C, T95 °C Db IP 66
- Protection Degree: IP66
- Ambient Temperature: -20°C ÷ +40°C (-55°C ÷ +55°C in certain cases)
- Body Material: Corrosion Resistant Aluminum
- ATEX Certificate: PTB 11 ATEX 1016 X
- OTHER AVAILABLE CERTIFICATES : IECEx PTB 11.0033X, TC RU C-SI.GB08.B.02262
BARTEC – Pressurized (Ex-p) Exproof Systems
Product Description
BARTEC offers an Ex solution to control and automate devices, machines and systems in Zones 1/21 and 2/22 in the form of pressurized containment Ex p systems.
Depending on the application, control units and switchgears that are not Exproof protected, as well as automation systems are installed in the enclosure. Modern, ready-to-use Exproof solutions – including the required ATEX or IECEx certification – are created with modular, ATEX certified pressurized enclosures from BARTEC. Pressure containment solutions are designed for a wide range of ambient temperatures in temperature classes T3 to T5
GET INFORMATION
BARTEC – EVAC lighting fixtures For incandescent and discharge lamps for Ex-Zone 1/2 – 21/22
Technical Specifications:
- Exproof Zone Class: hazardous areas - Zone 1 / 2 (Gases) - Zone 21 / 22 (Dusts)
- Exproof Protection (Gases): II 2 G Ex d IIC T6÷T2 Gb
- Exproof Protection (Dusts): II 2 D Ex tb IIIC T85°C-T225°C Db
- Protection Degree: IP66
- Power supply (PRC): Conventional ballast 230V - 50Hz (p.f. corrected - cos ρ ≥ 0,95)
- Ambient Temperature: -60 °C ÷ +60 °C
- Body Material: Marine grade copper free aluminium (control gear & lamp body)
- ATEX Certificate: INERIS 01 ATEX 0054X
- OTHER AVAILABLE CERTIFICATES : IECEx: IECEx INE 13.0075X - INMETRO: CEPEL 14.2311X - EAC: TC RU C-IT.ГБ08.В.01342 (-60°C÷+60°C) - RINA: ELE18111CS_015 - RUSSIAN MARINE CERTIFICATE (RMRS): 13.03516.315
