Clipless design for a more robust performance and easy installation

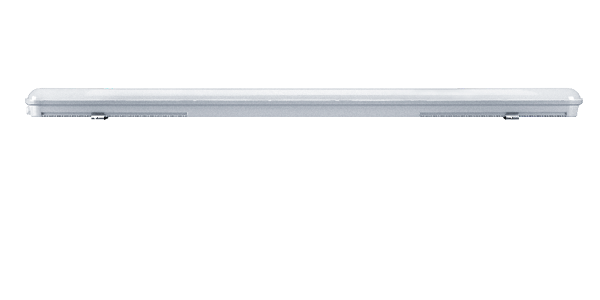

THORNECO – JULIE IP65 LED Batten
Meet Julie
- Energy efficient with > 120 lm/W
- Colour temperature 4000 K
- IP65 & IK08
- Julie goes FLEX: you can now decide your lumen package on site
- Perfect for retrofit projects – flexible bracket sliders mean no re-drilling is required in 1:1 replacements
- Click-fit clipless diffuser for easy installation
- Quick connect PLUG&PLAY Emergency function
- Quick access with flat head screwdriver for easy maintenance
- Versions with presence sensor and corridor function available
Categories: Etange Lighting Luminaires, General, Interior Lighting, Lighting Products
Description
Additional information
Brand |
thorn-eco |
---|
Reviews (0)
Be the first to review “THORNECO – JULIE IP65 LED Batten” Cancel reply
About brand
Parturient ut id tellus vulputatre ac ultrlices a part ouriesnt sapien dignissim partu rient a a inter drum vehicula. Ornare metus laoreet tincidunt eros rolem tristique pretium malada.
Cras rhoncus vivamus luctus platea arcu laoreet selm. Curae est condenectus sed hac a parturient vestibulum.
Related products
Swedish Neutral Earth Fault Neutralization Device (GFN)
Product Description
The Ground Fault Neutralizer device is capable of fully compensating against all long-term phase-to-earth fault currents (both fundamental and harmonic). In addition, it performs this operation in a very short time. With the use of modern computers and power electronics, the fault current can be completely avoided. This is particularly useful in overhead line networks. It is also useful in industry and city center networks using cable. Because most of the cable faults start as single phase-to-ground. If the fault is not compensated properly, then multi-phase fault occurs by affecting other phases.
GET INFORMATION
RAYTEC – SPARTAN SPX Linear LED High Output Linear Luminaire for Ex-Zone 1/21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection (Gases): Ex II 2G Ex e mb IIC T4 Gb
- Exproof Protection (Dusts): Ex II 2D Ex tb IIIC T75°C Db
- Protection Degree: IP66 / IP67
- Operating Voltage: 110-254V 50/60 Hz AC
- Low Voltage Options: 18-48V AC/ 18-69V DC and Extreme Low Voltage Option 12V AC/DC
- Ambient Temperature: -40°C to +55°C (It is -20°C to +50°C for Battery Emergency Types.)
- Body Material: Corrosion Resistant Aluminum, epoxy powder coated
- ATEX Certificate: CML14ATEX3119
- IECEx : IEC Ex CML 15.0001
- Other Certifications: UL/CSA, including C1D2; ABS Cert. #20-1990083-PDA
SCHUCH – Series e865 LED-Light Fitting for Ex-Zone 1/21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21 / Zone 2, 22
- Exproof Protection (Gases): II 2 G Ex eb mb op is q IIC T4 Gb
- Exproof Protection (Dusts): II 2 D Ex op is tb IIIC T80°C Db
- Protection Degree: IP66
- Power supply: 220-240V AC/DC, 0 or 50/60Hz
- Ambient Temperature: -30 °C to +55 °C
- Body Material: GRP
- ATEX Certificate: IBExU 16 ATEX 1008
- IECEx : IECEx IBE 16.0010
- Emergency Battery (e864 Series) Options Available!
ZENITH Series Cable Cleats
TECHNICAL DATA & CLASSIFICATION
TYPE: 6.1.1 Metallic 2BCAL - Two Bolt Aluminium Cable Cleat
DESIGN SPECIFICATION: IEC 61914
TEMPERATURE FOR PERMANENT APPLICATION: -60°C to 150°C
IEC 61914 clause / part 6.2
NEEDLE FLAME TEST:
Pass
IEC 61914 clause
10.0, 10.1, IEC 60695-11-5
LATERAL LOAD TEST: 18kN - 32kN, IEC 61914 clause 9.3
AXIAL LOAD TEST: 8kN, IEC 61914 clause 9.4
IMPACT RESISTANCE: Pass - Very heavy
IEC 61914 clause 6.3, 6.3.5, 9.2
MATERIAL: High pressure die cast aluminium
MATERIAL COLOUR: Silver / grey
GET INFORMATION
A2F Single Crimp (Unarmoured Cable) Exproof Cable Gland
Technical Details
- One-squeeze ex-proof cable gland, compatible for non-armoured cables
- Cable gland suitable for use in ex-proof (suitable for use in explosive atmospheres) environments
- Body Material: Nickel plated brass – Brass – Stainless Steel – Aluminum
- IP Protection Class: IP66, IP67, IP68
- Operating Temperature : -60°C to +130°C standard
- Certification group: CE, ATEX, IECEx, CSA, EAC, Marine
- Zone Class: Zone 1 / Zone 20
- Has Deluge Protection feature
BARTEC – Ex-d Protected Exproof Distribution Board
Technical Specifications:
- Exproof Zone Class: hazardous areas - Zone 1 / 21 (Gases) - Zone 2 / 22 (Dusts)
- Exproof Protection (Gases): II 2G Ex d IIC T6..T3 Gb
- Exproof Protection (Dusts): II 2D Ex tb IIIC T85°C..T150°C Db
- Protection Degree: IP65 / IP66
- Power supply (PRC): Conventional ballast 230V - 50Hz (p.f. corrected - cos ρ ≥ 0,95)
- Ambient Temperature: -20 °C ÷ +40 °C (-55°C ÷ +55°C)
- Body Material: Glass-Fiber Reinforced Polyester, Steel Sheet, Stainless Steel
- ATEX Certificate: DEKRA I3ATEXO2O9
- OTHER AVAILABLE CERTIFICATES : IECEx, CU TR
BARTEC-FN – SFD – SFDE LED Series Exproof Projector for Ex-Zone 1/21
Technical Specifications:
- Exproof Zone Class: hazardous areas - Zone 1 / 21 (Gases) - Zone 2 / 22 (Dusts)
- Exproof Protection (Gases): II 2 G Ex d IIB + H2 T6...T4 Gb or II 2 G Ex de IIB + H2 T6...T4 Gb
- Exproof Protection (Dusts): II 2 D Ex tb IIIC T85°C...T135°C Db
- Protection Degree: IP66
- Power supply: 100 - 277Vac electronic driver 50/60 Hz
- Ambient Temperature: -20 °C to +60 °C
- Life: 80,000 hours L80 B10 @ 25°C
- Standard Light Color: CCT 5700 K
- CRI > 70
- Body Material: Corrosion Resistant Copper-free Aluminum
- Diffuser : Toughened glass
- ATEX Certificate: INERIS 01 ATEX 0018
- OTHER AVAILABLE CERTIFICATES : IECEx INE 15.0003X, INMETRO: CEPEL 15.2363X, EAC: TC RU C-IT.BH02.B.00602, RINA: ELE18111CS_014, RUSSIAN MARINE CERTIFICATE – 19.02519.280
RAYTEC – SPARTAN SPX LED Zone 1 High Power Floodlight for Ex-Zone 1/21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection (Gases): Ex II 2G Ex db eb mb op is IIB+H2 T4 Gb
- Exproof Protection (Dusts): Ex II 2D Ex tb op is IIIC T104°C Db
- Protection Degree: IP66 / IP67
- Operating Voltage: 150-264V 50/60 Hz AC (110V AC Voltage Option is available.)
- Ambient Temperature: -50°C to +50°C
- Body Material: Corrosion Resistant Aluminum, epoxy powder coated
- ATEX Certificate: CML17ATEX1148
- IECEx : IEC Ex CML 17.0074
- Other Certifications: EAC Cert.; ABS Cert. # 15-LD1364539-1-PD
