Tough, resilient and efficient, Lucy is ideal for workshop areas and functional applications

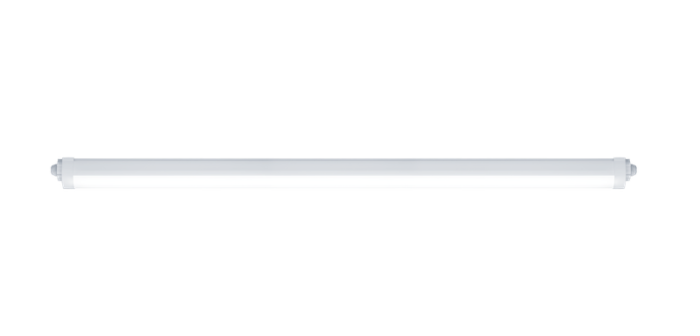

THORNECO – LUCY LED Batten
Meet Lucy
- High quality, low energy lighting in wet and dusty environments with opal diffuser for uniform lighting
- 2000 lm (20 W), 4000 lm (40 W), 6000 lm (60 W), 8000 lm (80 W), 100 lm/W
- Through-wired: equipped with two 3-pole push-terminals (N, earth, L) as standard
- Easy, quick and tool-free installation thanks to the twist & lock mechanism in the end caps, which allowing access to the push terminals
- Flexible installation as mounting brackets can be positioned freely on the luminaire
Please find Circuit Breaker information in the Catalogue Section
Categories: Etange Lighting Luminaires, General, Interior Lighting, Lighting Products
Description
Additional information
Brand |
thorn-eco |
---|
Reviews (0)
Be the first to review “THORNECO – LUCY LED Batten” Cancel reply
About brand
Parturient ut id tellus vulputatre ac ultrlices a part ouriesnt sapien dignissim partu rient a a inter drum vehicula. Ornare metus laoreet tincidunt eros rolem tristique pretium malada.
Cras rhoncus vivamus luctus platea arcu laoreet selm. Curae est condenectus sed hac a parturient vestibulum.
Related products
BARTEC – Pressurized (Ex-p) Exproof Systems
Product Description
BARTEC offers an Ex solution to control and automate devices, machines and systems in Zones 1/21 and 2/22 in the form of pressurized containment Ex p systems.
Depending on the application, control units and switchgears that are not Exproof protected, as well as automation systems are installed in the enclosure. Modern, ready-to-use Exproof solutions – including the required ATEX or IECEx certification – are created with modular, ATEX certified pressurized enclosures from BARTEC. Pressure containment solutions are designed for a wide range of ambient temperatures in temperature classes T3 to T5
GET INFORMATION
SCHUCH – e8820 Series LED Exproof Explosion-protected LED floodlight (Zone 1, 21 Zone 2, 22)
Technicial Specifications:
Exproof Zone Class: Zone 1, 21 / Zone 2, 22
Exproof Protection (Gas): II 2 G Ex eb mb q IIC T4 Gb
Exproof Protection (Dust): II 2 D Ex tb IIIC T100 °C Db
IP rating: IP66
Rated voltage: 220 - 240 V, 0 Hz, 50/60 Hz
Tₐ: -30 °C to +55 °C
Housing Material: Die-cast aluminium
ATEX: IBExU 20 ATEX 1117
IECEx : IECEx IBE 20.0028
GET INFORMATION
SCHUCH – e8825 Series LED High Bay Fitting for Ex-Zone (Zone 1, 21 / Zone 2, 22)
Technicial Specifications:
Exproof Zone Class: Zone 1, 21 / Zone 2, 22
Exproof Protection (Gas): II 2 G Ex eb mb q IIC T4 Gb
Exproof Protection (Dust): II 2 D Ex tb IIIC T100 °C Db
IP rating: IP66
Rated voltage: 220 - 240 V, 0 Hz, 50/60 Hz
Tₐ: -30 °C to +55 °C
Mounting material: Y-ropes 3301/3302 Y P, Ceiling brackets steel DW 8825 P
Housing Material: Aluminum Casting
ATEX: IBExU 20 ATEX 1117
IECEx : IECEx IBE 20.0028
GET INFORMATION
BARTEC – Ex-e Aluminum Terminal Exproof Box for Ex-Zone 1- 21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection (Gases): Ex II 2G Ex e ia/ib IIA, IIB, IIC T6, T5 Gb
- Exproof Protection (Dusts): Ex II 2D Ex tb IIIC T80 °C, T95 °C Db IP 66
- Protection Degree: IP66
- Ambient Temperature: -20°C ÷ +40°C (-55°C ÷ +55°C in certain cases)
- Body Material: Corrosion Resistant Aluminum
- ATEX Certificate: PTB 11 ATEX 1016 X
- OTHER AVAILABLE CERTIFICATES : IECEx PTB 11.0033X, TC RU C-SI.GB08.B.02262
A2F Single Crimp (Unarmoured Cable) Exproof Cable Gland
Technical Details
- One-squeeze ex-proof cable gland, compatible for non-armoured cables
- Cable gland suitable for use in ex-proof (suitable for use in explosive atmospheres) environments
- Body Material: Nickel plated brass – Brass – Stainless Steel – Aluminum
- IP Protection Class: IP66, IP67, IP68
- Operating Temperature : -60°C to +130°C standard
- Certification group: CE, ATEX, IECEx, CSA, EAC, Marine
- Zone Class: Zone 1 / Zone 20
- Has Deluge Protection feature
BARTEC – Ex-e Polyester Exproof Terminal Box for Ex-Zone 1- 21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection (Gases): Ex II 2G Ex eb IIA, IIB, IIC T6, T5 Gb / Ex II 2G Ex ia/ib IIA, IIB, IIC T6, T5 Gb
- Exproof Protection (Dusts): Ex II 2D Ex tb IIIC T 80 °C, T 95° C Db IP66 / Ex II 2D Ex ia/ib IIIC T 80 °C, T 95° C Db
- Protection Degree: IP66
- Ambient Temperature: -20°C ÷ +40°C (-55°C ÷ +55°C in certain cases)
- Body Material: Glass Fiber Reinforced Polyester
- ATEX Certificate: PTB 08 ATEX 1064 X
- OTHER AVAILABLE CERTIFICATES : IECEx PTB 09.0009X-5, TC RU C-SI.GB08.B.02262
Swedish Neutral Earth Fault Neutralization Device (GFN)
Product Description
The Ground Fault Neutralizer device is capable of fully compensating against all long-term phase-to-earth fault currents (both fundamental and harmonic). In addition, it performs this operation in a very short time. With the use of modern computers and power electronics, the fault current can be completely avoided. This is particularly useful in overhead line networks. It is also useful in industry and city center networks using cable. Because most of the cable faults start as single phase-to-ground. If the fault is not compensated properly, then multi-phase fault occurs by affecting other phases.
GET INFORMATION
ZENITH Series Cable Cleats
TECHNICAL DATA & CLASSIFICATION
TYPE: 6.1.1 Metallic 2BCAL - Two Bolt Aluminium Cable Cleat
DESIGN SPECIFICATION: IEC 61914
TEMPERATURE FOR PERMANENT APPLICATION: -60°C to 150°C
IEC 61914 clause / part 6.2
NEEDLE FLAME TEST:
Pass
IEC 61914 clause
10.0, 10.1, IEC 60695-11-5
LATERAL LOAD TEST: 18kN - 32kN, IEC 61914 clause 9.3
AXIAL LOAD TEST: 8kN, IEC 61914 clause 9.4
IMPACT RESISTANCE: Pass - Very heavy
IEC 61914 clause 6.3, 6.3.5, 9.2
MATERIAL: High pressure die cast aluminium
MATERIAL COLOUR: Silver / grey
GET INFORMATION
