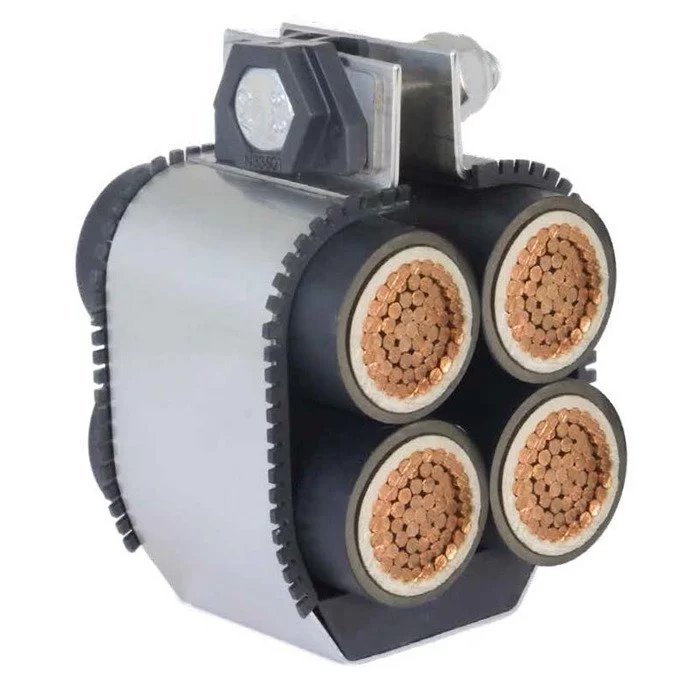

CMP Products – SATURN QUAD Series Cable Cleats
Technicial Specifications:
- Certificate obtained from an independent organization in accordance with IEC 61914 Standard
- 152kA short circuit resistance
- 316L Stainless Steel Body
- Structure resistant to weather conditions and sunlight (UV)
- -50°C …+60°C standard operating temperature
- Fixing capacity in the cable outer diameter range of 19 mm – 71 mm
- 18 different QUAD size options
- Single bolt (M10) and two bolt (M10) fixing options
Categories: All Cable Equipment, Cable Cleats, Cable Equipment, General, Metalic Cable Cleats
