Materials and Finish
Housing: Die cast aluminium (RAL 9006)
Lens/Diffuser: Polycarbonate
Installation and Mounting
All luminaires are suitable for single point suspension. All wide beam luminaires (WB) are supplied with a mounting hook as standard (chain to be ordered separately). For rack beam luminaires (RK) and sensor variants it is recommended to use the fixed rod suspension or surface wall mounting accessory (to be ordered separately). Mounting accessories to be ordered separately: stirrup for wall mounting, rod suspension for pendant mounting, wire suspension and catenary suspension. All luminaires are supplied pre-wired with a quick connector plug.
Specification
To specify state:

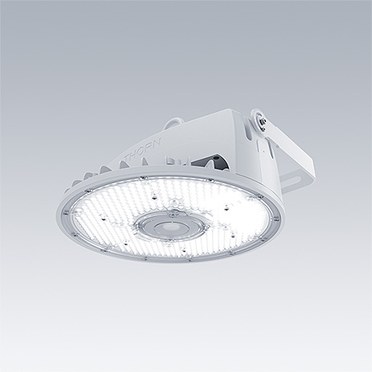

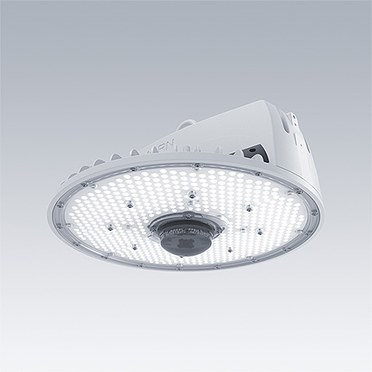

A robust dust, dirt and moisture and shock-resistant high bay luminaire with IP65 and IK08.
Compact and lightweight fully recyclable aluminium body with a polycarbonate lens.
High efficiency up to 180 lm/W and available in 10000lm, 15000lm, 20000lm, 25000lm, 30000lm, and 35000lm with a choice of rack or wide beam optic. Ra80, 4000K, long service life of 100000 hours. Surface-mounted, suspended or wall mounting possibilites. Quick connectors, Wireless communication (basicDIM), Passive infrared sensors, Microwave Sensor, DALI dimmable, DALI-2 (D4i), E3, E3D and E3DUK options available.
As Thorn HiPak.
