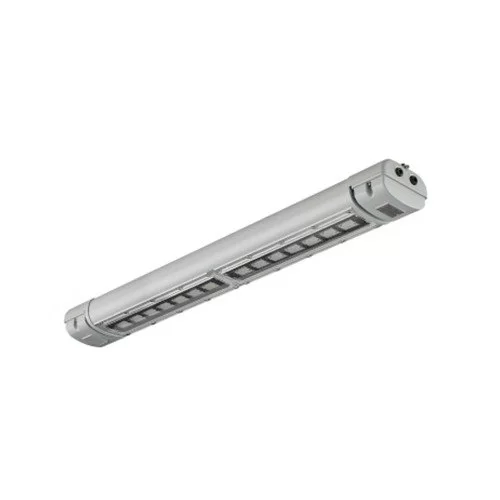

RAYTEC – SPARTAN WL Series Linear LED Ex-proof Luminaire (ZONE 1 / ZONE 21)
-
Technical Specifications:
-
Ex-proof Zone Classification: Zone 1 / Zone 21
-
Gas Explosion Protection: Ex II 2G Ex e mb IIC T4 Gb
-
Dust Explosion Protection: Ex II 2D Ex tb IIIC T75°C Db
-
Ingress Protection: IP66 / IP67
-
Operating Voltage: 110–254V AC, 50/60 Hz
-
Low Voltage Options: 18–48V AC / 18–69V DC and Extra Low Voltage option 12V AC/DC
-
Ambient Operating Temperature: -40°C … +55°C (for emergency battery versions: -20°C … +50°C)
-
Housing Material: Corrosion-resistant aluminium with epoxy powder coating
-
ATEX Certification: CML14ATEX3119
-
IECEx Certification: IECEx CML 15.0001
-
Other Certifications: UL/CSA, including C1D2; ABS Cert. # 20-1990083-PDA
-
The SPARTAN Series offers users the following features:
-
Modular design for easy installation and maintenance
-
Emergency battery options providing up to 100% light output
-
Wide operating temperature range: -40°C … +55°C
-
Zone 2 version options available
-
5-year manufacturer’s warranty against material and workmanship defects
-
UK-designed and manufactured to the highest international standards
| Brand |
raytec |
|---|
