FLEXA – ROHRflex PA 12F+ (Multilayer)

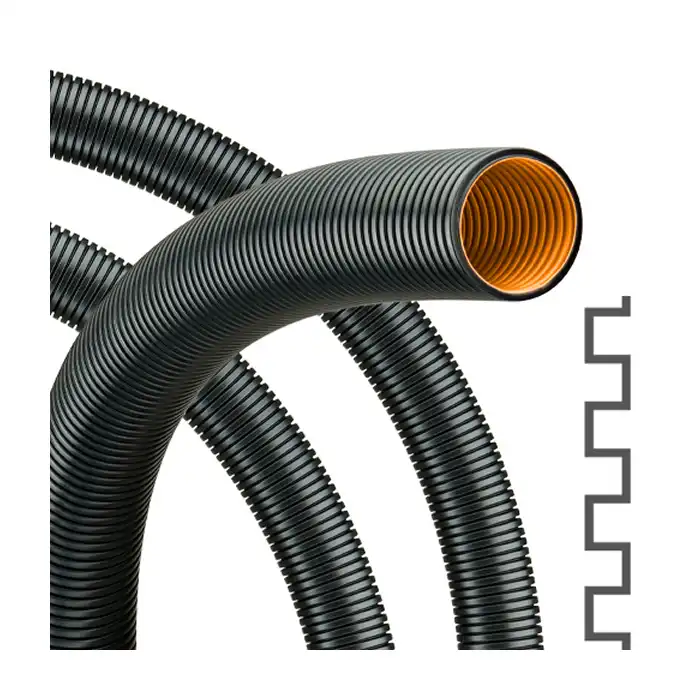

ROHRflex+ multilayer corrugated plastic tubings Multilayer corrugated plastic tubing especially for outdoor applications with internationally approved standards, V2 acc.UL 94, EN 45545-2 (HL3). Material: pa 12 plastics Temperature: -50°C … +120°C ^ +150°C

Get a Quote

Sıcaklık -50°C … 120°C Sertifika UL

Documents 1

CATALOGUE SHEET

FLEXA – ROHRflex PA 12F+ PDF · 852 KB

Categories: Plastic Conduits, Conduits, Cable Equipment

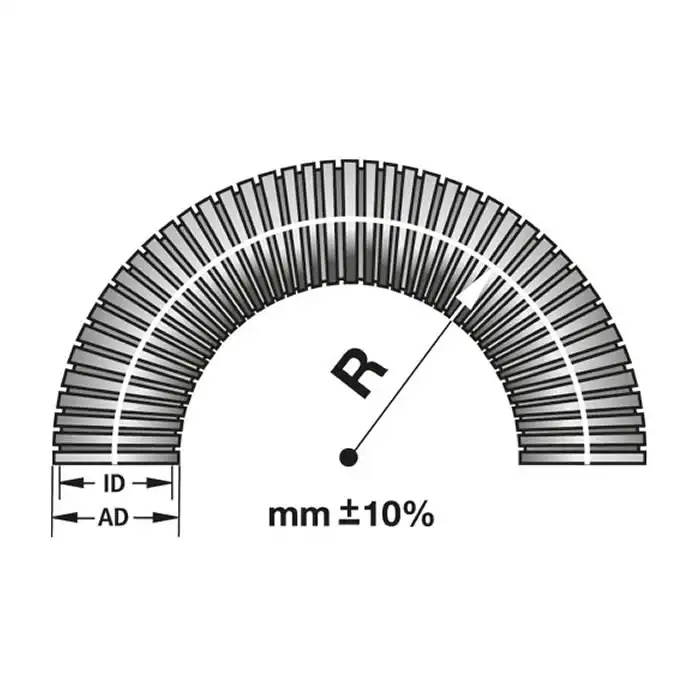

FLEXA No.	Colour	OD [mm]	Profile	ID [mm]	OD [mm]	BR stat. [mm]	BR dyn. [mm]	Weight [kg/m]	PU [m]
11249202006	Black	10,0	fine	6,6	10,0	13	35	0,020	50
11249202010	Black	13,0	fine	9,9	13,0	15	45	0,025	50
11249202012	Black	15,8	fine	12,3	15,9	25	55	0,040	50
11249202016	Black	21,2	fine	16,7	21,5	35	75	0,070	50
11249232023	Black	28,5	coarse	21,6	28,7	55	100	0,105	50
11249232029	Black	34,5	coarse	27,7	34,7	65	120	0,125	25
11249232036	Black	42,5	coarse	35,7	42,5	90	150	0,150	25
11249232048	Black	54,5	coarse	46,7	54,5	100	190	0,250	25
