FLEXA – RQDR-AP

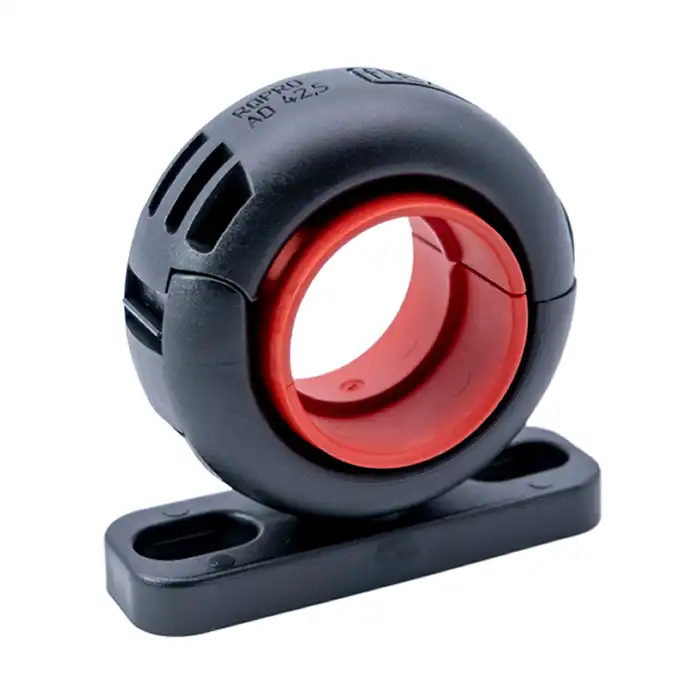

Tubing clamp systems for light, medium and heavy duty applications Rotatable tubing holder with screw-on plate / maximum mobility with red MOVE insert, especially for cobots and small industrial robots at slow and medium speeds in the field of robotics. Material : PA plastics (PA6) Temperature : -40°C … +120°C

Get a Quote

Sıcaklık -40°C … 120°C

Documents 1

TECHNICAL DOCUMENT

FLEXA – RQDR-AP - DATASHEET PDF · 786 KB

Categories: Rotatable, Tubing Clamp Systems, Cable Equipment

FLEXA No.	Colour	OD [mm]	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	OG [mm]	Weight [kg/100]	PU [pcs.]
15040042201	Black	42.5	77.0	74.0	30.0	45.0	60.0	6.5	4.50	1
15040142201	Black	with MOVE OD 34.5	77.0	74.0	30.0	45.0	60.0	6.5	5.60	1
15040242201	Black	with MOVE OD 28.5	77.0	74.0	30.0	45.0	60.0	6.5	5.84	1
15040342201	Black	with MOVE OD 21.2	77.0	74.0	30.0	45.0	60.0	6.5	6.20	1
15040442201	Black	with RQMR OD 34.5	77.0	74.0	30.0	45.0	60.0	6.5	5.60	1
15040542201	Black	with RQMR OD 28.5	77.0	74.0	30.0	45.0	60.0	6.5	6.20	1
15040642201	Black	with RQMR OD 21.2	77.0	74.0	30.0	45.0	60.0	6.5	6.30	1

PROPERTIES

Properties: rational tubing assembly for corrugated tubings with coarse and fine profile
Free of silicone, cadmium and halogen
Self-extinguishing
Fit for high mechanical stress
Impact-resistant
REACH and RoHS compliant
