FLEXA – RQDR-PS
Tubing clamp systems for light, medium and heavy duty applications

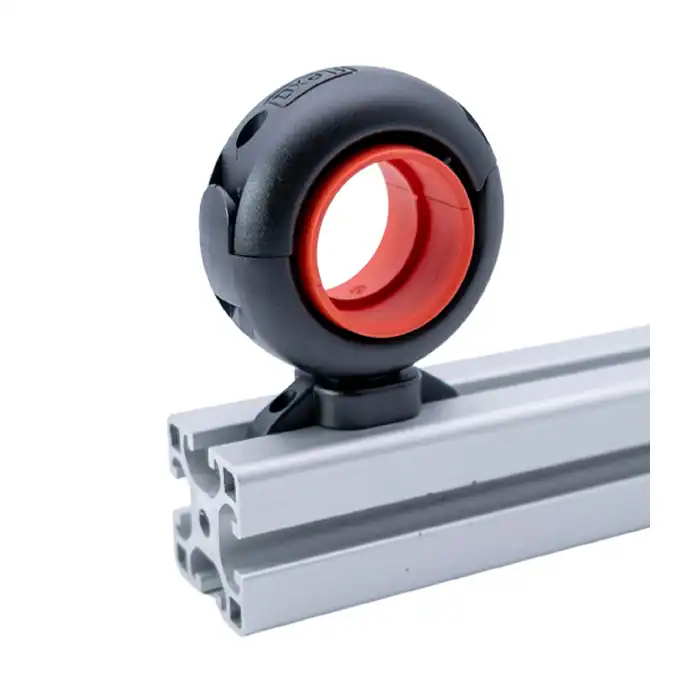

Rotatable tubing holder for mounting on profile rails / maximum mobility with red MOVE insert, especially for cobots and small industrial robots at slow and medium speeds in the field of robotics.
- Material: PA plastics (PA6)
- Temperature: -40°C … +120°C
Description

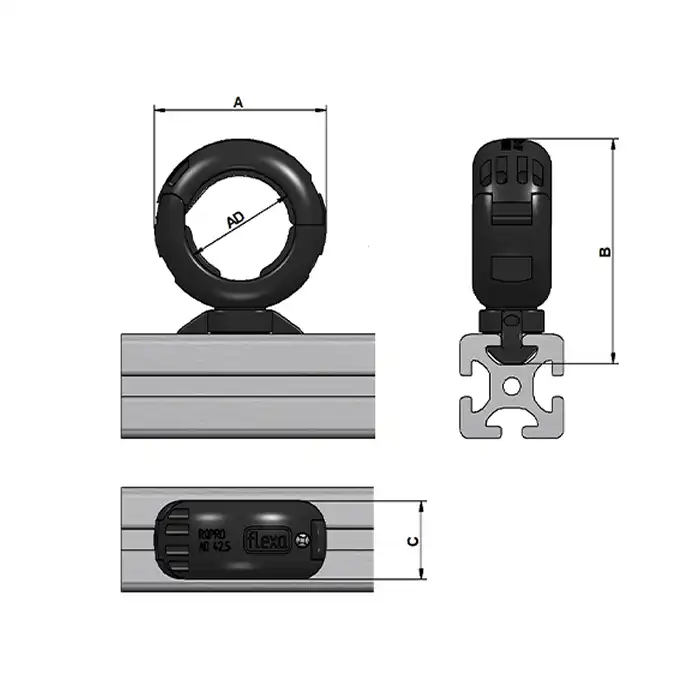

| FLEXA No. | Colour | OD [mm] | A [mm] | B [mm] | C [mm] | Weight [kg/100] | PU [pcs.] |
|---|---|---|---|---|---|---|---|
| 15040042202 | Black | 42.5 | 66.0 | 86.0 | 30.0 | 4.50 | 1 |
| 15040142202 | Black | with MOVE OD 34.5 | 66.0 | 86.0 | 30.0 | 5.60 | 1 |
| 15040242202 | Black | with MOVE OD 28.5 | 66.0 | 86.0 | 30.0 | 5.84 | 1 |
| 15040342202 | Black | with MOVE OD 21.2 | 66.0 | 86.0 | 30.0 | 6.20 | 1 |
| 15040442202 | Black | with RQMR OD 34.5 | 66.0 | 86.0 | 30.0 | 5.60 | 1 |
| 15040542202 | Black | with RQMR OD 28.5 | 66.0 | 86.0 | 30.0 | 6.20 | 1 |
| 15040642202 | Black | with RQMR OD 21.2 | 66.0 | 86.0 | 30.0 | 6.30 | 1 |
