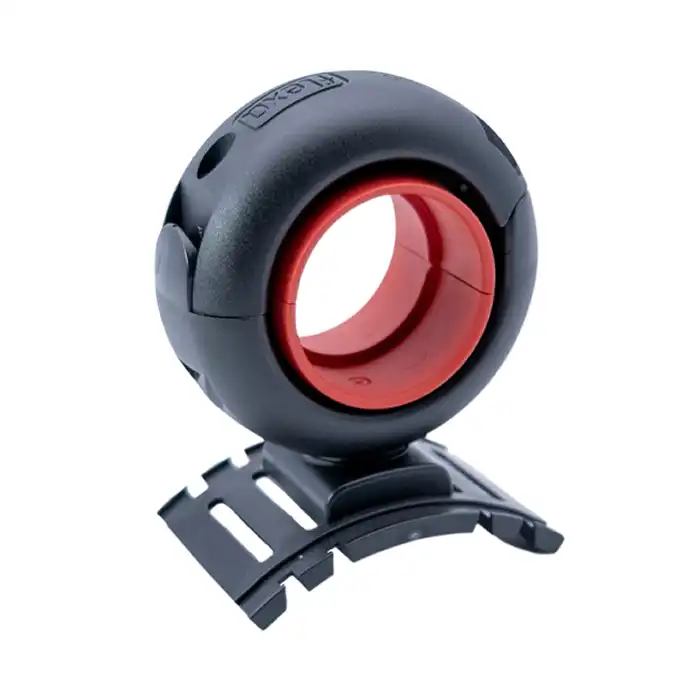

FLEXA – RQDR-KB

Tubing clamp systems for light, medium and heavy duty applications Rotatable tubing holder with velcro fastening, rotatable velcro strap holder incl. 50 cm velcro strap / maximum mobility with red MOVE insert, specially designed for cobots and small industrial robots operating at slow and medium speeds in the field of robotics. Material : PA plastics (PA6) Temperature : -40°C … +120°C

Get a Quote

Sıcaklık -40°C … 120°C

Documents 1

TECHNICAL DOCUMENT

FLEXA – RQDR-KB - DATASHEET PDF · 768 KB

Categories: Rotatable, Tubing Clamp Systems, Cable Equipment

FLEXA No.	Colour	OD [mm]	A [mm]	B [mm]	C [mm]	Weight [kg/100]	PU [pcs.]
15040042200	Black	42.5	66.0	85.0	45.0	4.50	1
15040142200	Black	with MOVE OD 34.5	66.0	85.0	45.0	5.60	1
15040242200	Black	with MOVE OD 28.5	66.0	85.0	45.0	5.84	1
15040342200	Black	with MOVE OD 21.2	66.0	85.0	45.0	6.20	1
15040442200	Black	with RQMR OD 34.5	66.0	85.0	45.0	5.60	1
15040542200	Black	with RQMR OD 28.5	66.0	85.0	45.0	6.20	1
15040642200	Black	with RQMR OD 21.2	66.0	85.0	45.0	6.30	1

PROPERTIES

Properties: rational tubing assembly for corrugated tubings with coarse and fine profile
Free of silicone, cadmium and halogen
Self-extinguishing
Fit for high mechanical stress
Impact-resistant
REACH and RoHS compliant
