CMP Products – A2FFC | Ex eb, Ex db, Ex nR, Ex ta | Ex-Proof Cable Gland

The A2FFC is a globally approved flexible conduit cable gland for use in explosive atmospheres. It is suitable for all types of unarmoured and braided cables installed within conduits.

FEATURES
- Designed for use with both flexible and rigid conduits
- Rigid conduits require a threaded adaptor supplied by the conduit manufacturer
- Suitable for conduits equipped with a rubber sheath/covering
- Incorporates a displacement type flameproof seal
- Wide operating temperature range: -60˚C to +130˚C
- Holds global certifications: UKEX, IECEx, ATEX, and CSA

Technical Data Table

Cable Gland Size	Entry Threads ‘C’	Thread Length (Metric) ‘E’ (Alternate Metric Thread Lengths Available)	Diameter of Cable ‘A’		Specific Internal Diameter of Conduit ‘G’	Maximum External Diameter of Conduit ‘B’	Across Flats “D”	Across Corners ‘D’	Protrusion Length ‘F’	Maximum Envelope Diameter	Combined Ordering Reference (*Brass Metric)			Cable Gland Weight (Kgs)
Cable Gland Size	Entry Threads ‘C’		Min	Max	Specific Internal Diameter of Conduit ‘G’	Maximum External Diameter of Conduit ‘B’	Max	Max	Protrusion Length ‘F’	Maximum Envelope Diameter	Size	Type	Ordering Suffix	Cable Gland Weight (Kgs)
20S16	M20 x 1.5	15.0	3.2	4.1	5.1	12.0	24.0	26.4	33.2	26.4	20S16	A2FFC	1RAC000	0.09
20S16	M20 x 1.5	15.0	3.2	5.2	6.8	13.0	24.0	26.4	33.2	26.4	20S16	A2FFC	1RAC001	0.09
20S16	M20 x 1.5	15.0	3.2	5.5	7.8	13.0	24.0	26.4	33.2	26.4	20S16	A2FFC	1RAC004	0.09
20S16	M20 x 1.5	15.0	3.2	8.0	9.1	15.0	24.0	26.4	33.2	26.4	20S16	A2FFC	1RAC009	0.08
20S16	M20 x 1.5	15.0	3.2	8.1	9.5	15.0	24.0	26.4	33.2	26.4	20S16	A2FFC	1RAC010	0.09
20S16	M20 x 1.5	15.0	3.2	8.1	10.2	16.0	24.0	26.4	33.2	26.4	20S16	A2FFC	1RAC020	0.09
20S16	M20 x 1.5	15.0	3.2	8.1	10.9	17.0	24.0	26.4	33.2	26.4	20S16	A2FFC	1RAC025	0.09
20S16	M20 x 1.5	15.0	3.2	8.1	11.7	17.4	24.0	26.4	33.2	26.4	20S16	A2FFC	1RAC030	0.09
20S	M20 x 1.5	15.0	6.1	11.4	13.0	20.0	24.0	26.4	33.1	26.4	20S	A2FFC	1RAC040	0.09
20S	M20 x 1.5	15.0	6.1	11.7	13.9	20.0	24.0	26.4	33.1	26.4	20S	A2FFC	1RAC045	0.09
20S	M20 x 1.5	15.0	6.1	11.7	14.7	21.5	24.0	26.4	33.1	26.4	20S	A2FFC	1RAC060	0.09
20	M20 x 1.5	15.0	6.5	13.1	15.6	21.6	27.0	29.7	35.4	29.7	20	A2FFC	1RAC050	0.10
20	M20 x 1.5	15.0	6.5	14.0	16.9	23.4	27.0	29.7	35.4	29.7	20	A2FFC	1RAC066	0.10
20	M20 x 1.5	15.0	6.5	14.0	18.0	24.0	27.0	29.7	35.4	29.7	20	A2FFC	1RAC070	0.10
20	M20 x 1.5	15.0	6.5	14.0	18.7	25.0	27.0	29.7	35.4	29.7	20	A2FFC	1RAC075	0.10
20	M20 x 1.5	15.0	6.5	14.0	20.0	26.3	27.0	29.7	35.4	29.7	20	A2FFC	1RAC080	0.12
20	M20 x 1.5	15.0	6.5	14.0	20.5	28.0	27.0	29.7	35.4	31.0	20	A2FFC	1RAC085	0.11
25	M25 x 1.5	15.0	11.1	15.3	17.6	25.0	36.0	39.6	43.1	39.6	25	A2FFC	1RAC100	0.16
25	M25 x 1.5	15.0	11.1	18.4	20.7	27.0	36.0	39.6	43.1	39.6	25	A2FFC	1RAC105	0.16
25	M25 x 1.5	15.0	11.1	19.0	22.3	28.5	36.0	39.6	43.1	39.6	25	A2FFC	1RAC110	0.17
25	M25 x 1.5	15.0	11.1	20.0	23.7	32.0	36.0	39.6	43.1	39.6	25	A2FFC	1RAC115	0.18
25	M25 x 1.5	15.0	11.1	20.0	25.1	31.0	36.0	39.6	43.1	39.6	25	A2FFC	1RAC120	0.17
25	M25 X 1.5	15.0	11.1	20.0	26.5	35.0	36.0	39.6	43.1	39.6	25	A2FFC	1RAC180	0.18
32	M32 x 1.5	15.0	17.0	26.0	28.1	35.8	41.0	45.1	43.1	45.1	32	A2FFC	1RAC250	0.21
32	M32 x 1.5	15.0	17.0	26.3	30.4	38.0	41.0	45.1	43.1	45.1	32	A2FFC	1RAC280	0.21
32	M32 x 1.5	15.0	17.0	26.3	34.6	45.0	41.0	45.1	43.6	48.0	32	A2FFC	1RAC290	0.25
40	M40 x 1.5	15.0	23.5	32.2	36.4	45.0	50.0	55.0	45.1	55.0	40	A2FFC	1RAC300	0.28
40	M40 x 1.5	15.0	23.5	32.2	40.0	49.0	50.0	55.0	45.1	55.0	40	A2FFC	1RAC380	0.30
50S	M50 x 1.5	15.0	31.0	38.2	46.5	58.7	55.0	60.5	43.8	63.7	50S	A2FFC	1RAC450	0.48
50S	M50 x 1.5	15.0	31.0	38.2	51.2	61.0	55.0	60.5	43.8	65.0	50S	A2FFC	1RAC500	0.49
50	M50 x 1.5	15.0	35.6	44.0	51.2	61.0	60.0	66.0	48.0	66.0	50	A2FFC	1RAC550	0.49
Dimensions displayed in millimeters unless otherwise stated

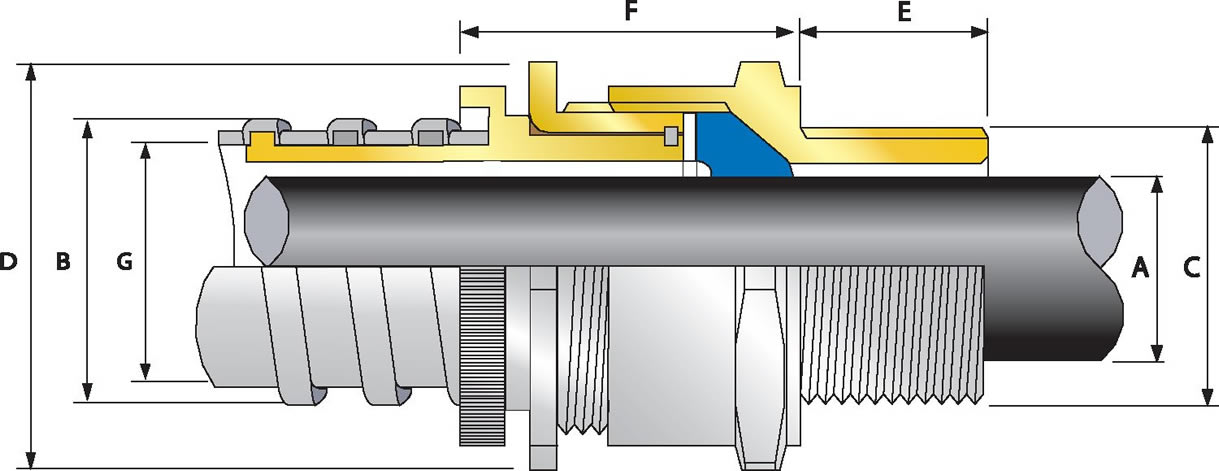

Technical Drawing
