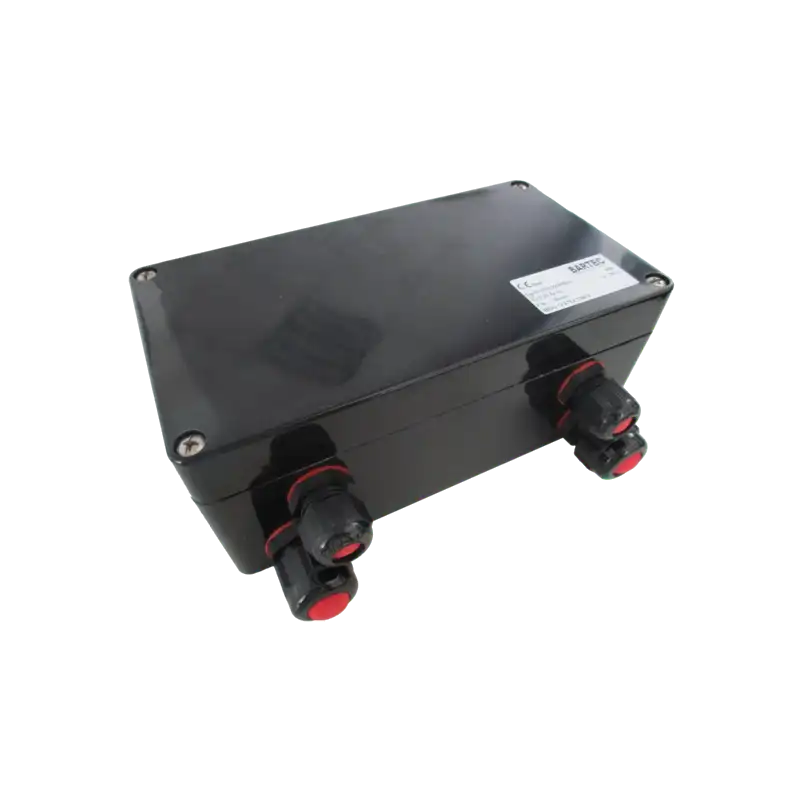

BARTEC – Ex p Relay – Power – Release module for Ex p equipment
Zone Class: Zone 1, 21
Explosion-proof Protection: Ex II 2G Ex eb qb IIC T4 Gb
Ex II 2D Ex tb IIIC T130°C Db
IP Rating: IP66
Operating Temperature: +25 °C to +65 °C
ATEX Certificate: EPS 18 ATEX 1 159 X
Other Certificates: IECEx EPS 18.0082X
Description
Description
The Ex p Relay – Power is a safety device designed to isolate power supply lines directly within hazardous areas. Compatible with BARTEC APEX and SILAS pressurized enclosure systems, the relay employs four galvanically isolated switch contacts that open when power is cut. A dual relay configuration ensures reliable contact opening. With a switching capacity of 400V, 16A, and 4kW, this relay can safely disconnect up to three-phase supply lines.
Additional information
| Brand |
BARTEC |
|---|
