With many different faces, Lily is the ideal solution for every style

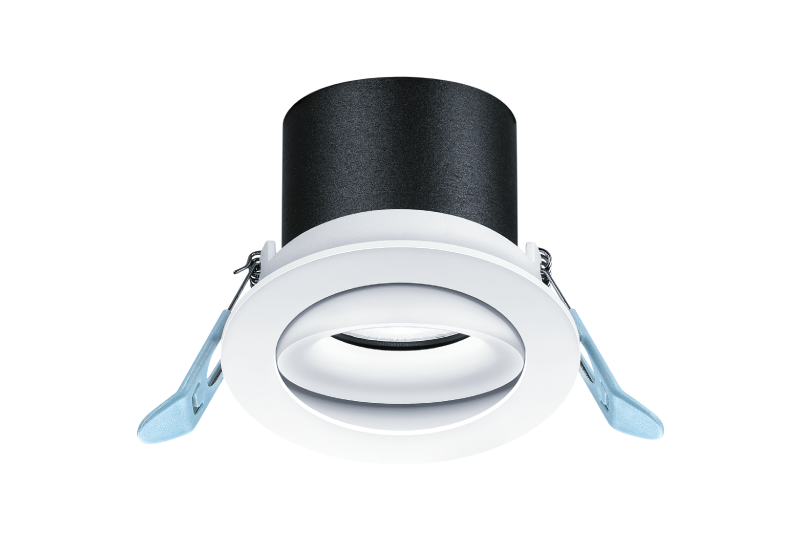

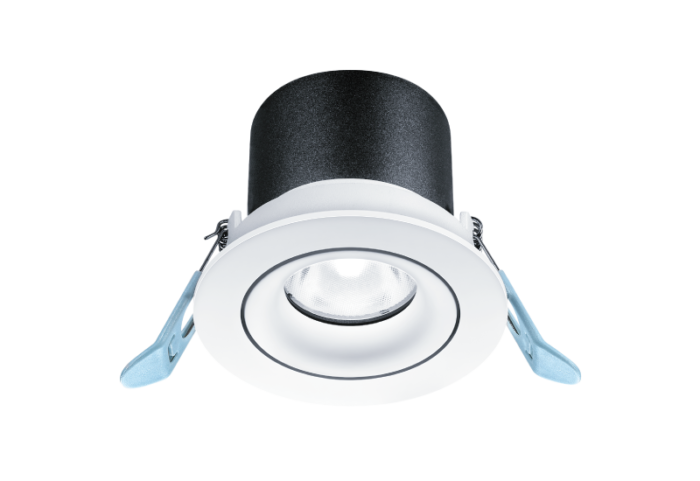

THORNECO – LILY IP44 LED Downlight
Meet Lily
- IP44 downlight with 24°, 38° or 60° beam angle

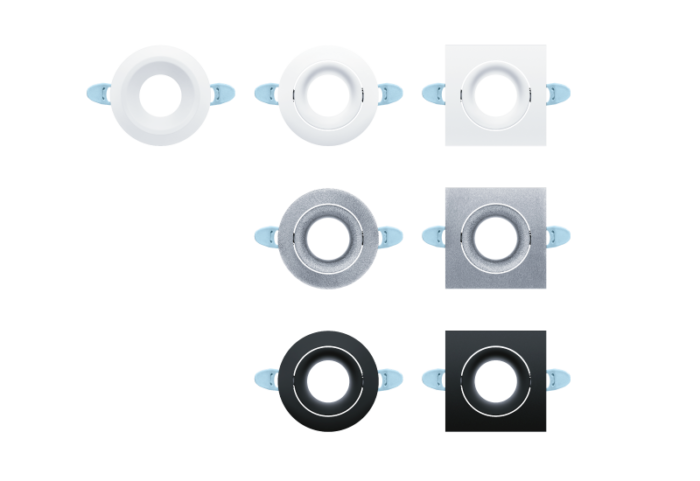

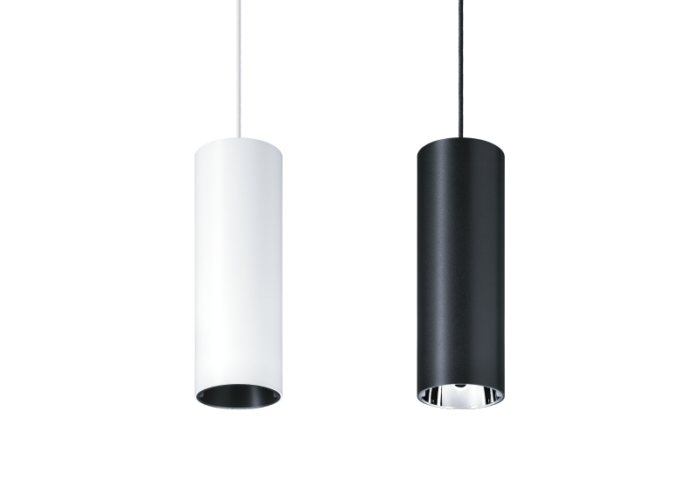

- Customisable: different bezel trims, light engines and cans for pendant and surface mounted versions available
- Product height of only 59 mm: fits various ceiling types
- LED driver suitable for use with leading and trailing edge dimmers from approved manufacturers

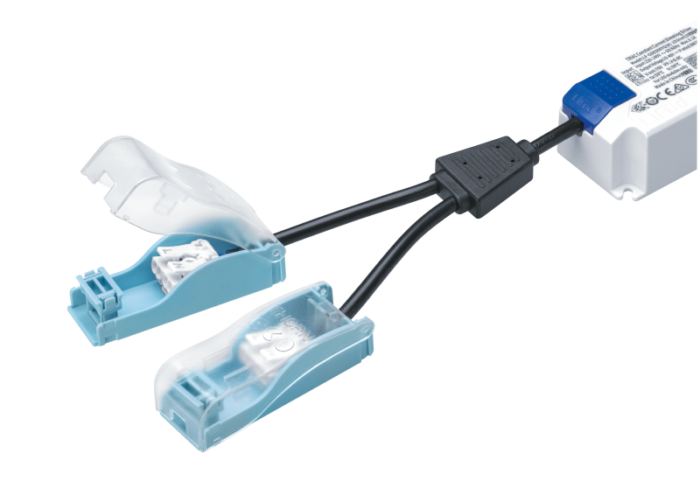

- Tool free and fast wiring thanks to the two connectors with press-fit terminal blocks enabling convenient loop-in loop-out
- Can directly be covered with insulation materials
- Ideal one to one replacement for 35 W and 50 W halogene downlights and up to 90% energy saving
- Suitable to use with the Just Emergency Plug&Play E3 KIT (separately available)
Please find Circuit Breaker information in the Catalogue Section
Categories: Downlights, General, Interior Lighting, Lighting Products
Description
Additional information
Brand |
thorn-eco |
---|
Reviews (0)
Be the first to review “THORNECO – LILY IP44 LED Downlight” Cancel reply
About brand
Parturient ut id tellus vulputatre ac ultrlices a part ouriesnt sapien dignissim partu rient a a inter drum vehicula. Ornare metus laoreet tincidunt eros rolem tristique pretium malada.
Cras rhoncus vivamus luctus platea arcu laoreet selm. Curae est condenectus sed hac a parturient vestibulum.
Related products
FALCON Series Cable Cleats
FEATURES
- Third party certification to IEC 61914 Available in three different materials: • Nylon • Low Smoke & Fume (LSF), Zero Halogen (LS0H, Phosphorus Free and V0 Nylon • LUL approved polymer
- Sunlight (UV) & weather resistant
- Operating temperature -40°C to +60°C
- Can be double stacked
- 38 - 135mm in 8 sizes
- Excellent axial & lateral load retention
- Two bolt fixing design
BARTEC – Ex-d Protected Exproof Distribution Board
Technical Specifications:
- Exproof Zone Class: hazardous areas - Zone 1 / 21 (Gases) - Zone 2 / 22 (Dusts)
- Exproof Protection (Gases): II 2G Ex d IIC T6..T3 Gb
- Exproof Protection (Dusts): II 2D Ex tb IIIC T85°C..T150°C Db
- Protection Degree: IP65 / IP66
- Power supply (PRC): Conventional ballast 230V - 50Hz (p.f. corrected - cos ρ ≥ 0,95)
- Ambient Temperature: -20 °C ÷ +40 °C (-55°C ÷ +55°C)
- Body Material: Glass-Fiber Reinforced Polyester, Steel Sheet, Stainless Steel
- ATEX Certificate: DEKRA I3ATEXO2O9
- OTHER AVAILABLE CERTIFICATES : IECEx, CU TR
BARTEC – Ex-e Medium Voltage Terminal Boxes (6kV to 10kV) for Ex-Zone 1-21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection: Ex II 2G Ex e IIC T6/T5 Gb / Ex II 2D Ex tb IIIC T80 °C/T95 °C Db
- Protection Degree: IP66
- Ambient Temperature: -20°C ÷ +40°C (-55°C ÷ +55°C in certain cases)
- Body Material: Polyester or Stainless Steel
- ATEX Certificate: IBExU 13 ATEX 1001
BARTEC – Ex-e Aluminum Terminal Exproof Box for Ex-Zone 1- 21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection (Gases): Ex II 2G Ex e ia/ib IIA, IIB, IIC T6, T5 Gb
- Exproof Protection (Dusts): Ex II 2D Ex tb IIIC T80 °C, T95 °C Db IP 66
- Protection Degree: IP66
- Ambient Temperature: -20°C ÷ +40°C (-55°C ÷ +55°C in certain cases)
- Body Material: Corrosion Resistant Aluminum
- ATEX Certificate: PTB 11 ATEX 1016 X
- OTHER AVAILABLE CERTIFICATES : IECEx PTB 11.0033X, TC RU C-SI.GB08.B.02262
RAYTEC LED – SPARTAN SPX Exproof Projector for Ex-Zone 1- 21
Technical Specifications:
- Exproof Zone Class: hazardous areas - Zone 1 (Gases) - Zone 21 (Dusts)
- Exproof Protection (Gases): Ex II 2 G Ex e mb op is IIC T4 Gb
- Exproof Protection (Dusts): Ex II 2 D Ex tb op is IIIC T82°C Db
- Protection Degree: IP66 / IP67
- Power supply: 110-254V 50/60 Hz AC
- Low voltage: 18-48V AC and 18-69V DC
- Extra low voltage: 12V AC/DC
- Ambient Temperature: -50 °C ÷ +55 °C (The low temperature is -20°C for the battery-powered Emergency features.)
- Body Material: Corrosion Resistant Aluminum, epoxy powder coated
- ATEX Certificate: CML13ATEX3007
- IECEx Certificate: IEC Ex CML 14.0001
- OTHER AVAILABLE CERTIFICATES : UL/CSA, including C1D2; ABS Cert. # 15-LD1364539-1-PD
ZENITH Series Cable Cleats
TECHNICAL DATA & CLASSIFICATION
TYPE: 6.1.1 Metallic 2BCAL - Two Bolt Aluminium Cable Cleat
DESIGN SPECIFICATION: IEC 61914
TEMPERATURE FOR PERMANENT APPLICATION: -60°C to 150°C
IEC 61914 clause / part 6.2
NEEDLE FLAME TEST:
Pass
IEC 61914 clause
10.0, 10.1, IEC 60695-11-5
LATERAL LOAD TEST: 18kN - 32kN, IEC 61914 clause 9.3
AXIAL LOAD TEST: 8kN, IEC 61914 clause 9.4
IMPACT RESISTANCE: Pass - Very heavy
IEC 61914 clause 6.3, 6.3.5, 9.2
MATERIAL: High pressure die cast aluminium
MATERIAL COLOUR: Silver / grey
GET INFORMATION
SCHUCH – e855 Series With / Without Battery LED Exproof Exit Luminaire (Zone 1, 21 / Zone 2, 22)
Technical Properties
- Exproof Zone Class: Zone 1, 21 / Zone 2, 22
- Exproof Protection (Gas): II 2 G Ex eb mb op is q IIC T4 Gb
- Exproof Protection (Dust): II 2 D Ex op is tb IIIC T80°C Db
- Sealing Protection: IP66
- Operating Voltage: 220 – 240 V, 0 Hz, 50/60 Hz
- Operating Ambient Temperature: -30 °C to +60 °C
- Body Material: GRP
- ATEX Certificate: IBExU17ATEX1132
- IECEx : IECEx IBE 17.0037
- Emergency Battery (e856 Series) Options Available!
BARTEC – Ex-d Power Distribution Board
Technical Specifications:
- Exproof Zone Class: hazardous areas - Zone 1 / 21 (Gases) - Zone 2 / 22 (Dusts)
- Exproof Protection (Gases): II 2G Ex de ia/ib m [ia/ib] IIC T5, T4
- Exproof Protection (Dusts): II 2D Ex td A21 IP 66/65 T 80°C, T 95°C
- Protection Degree: IP65 / IP66
- Ambient Temperature: -20 °C ÷ +40 °C (-55°C ÷ +55°C)
- Body Material: Glass-Fiber Reinforced Polyester, Steel Sheet, Stainless Steel
- ATEX Certificate: DEKRA I3ATEXO2O9
- OTHER AVAILABLE CERTIFICATES : IECEx, CU TR
