Materials and Coating
Sensor: Die-cast aluminum (AS 13) housing (EN AC-44300), gray powder-coated, available in any RAL color upon request.
Standard corrosion class C5 according to ISO 9223:2012.
Coordinated Poles (France): Painted cylindrical conical poles, galvanized steel with invisible welding, drilled at 3.5 m height from the ground to secure the device. Standard recommended heights: 6 m and 8 m. Top diameter: 60 mm, base diameter: 134 mm, flange mounted, delivered with fixing bolts D16 M14 at 200 mm intervals.
Door dimensions: H4000 mm x 75 mm, positioned 500 mm above the ground. Any RAL or textured paint available upon request.
Installation and Mounting
To be screwed onto a pole at a height of 3 to 4 m using 2 stainless steel M6 screws. Special pre-drilled poles are recommended to avoid corrosion issues or affecting the pole’s strength. Pre-wired with 4 m CSA 4x1mm², connected to the lantern at the bottom of the pole.
Specification
For status indication:

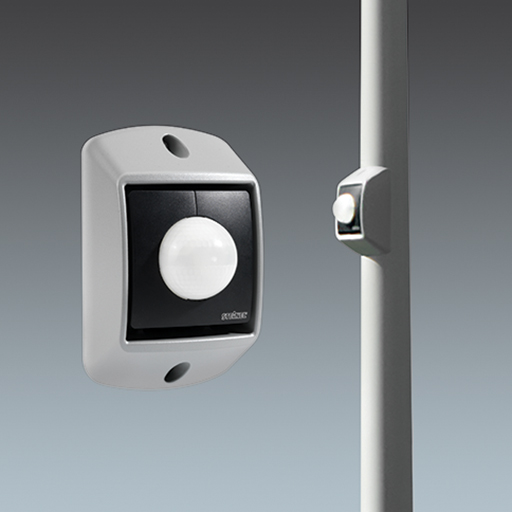

An outdoor PIR device to be mounted on any pole, combined with IP66 LED luminaires programmed in corridor mode, detecting pedestrians, cyclists, or slow-moving vehicles (under 30 km/h) within a range of 4 to 20 m at 180°.
Thorn MovU PIR Lateral.
