Materials and Finish
Body: die-cast painted aluminium EN AB 47100 sanded grey Akzo Nobel 900
Glass: tempered glass, 6mm for square versions and 8mm for rectangular versions
Recessed housing: polypropylene 40% Talc added and polystyrene cores
Gasket: Dutral
Fits thread: EPDM
Screws: stainless steel
Installation and Mounting
Install the recessed housing inside the wall. Connect the light source to the mains supply. Fix the body to the recessed housing. Attach the Linn luminaire to the chosen frame with four Torx screws with central pin. Through wiring is possible for the rectangular versions.
Specification
To specify state:

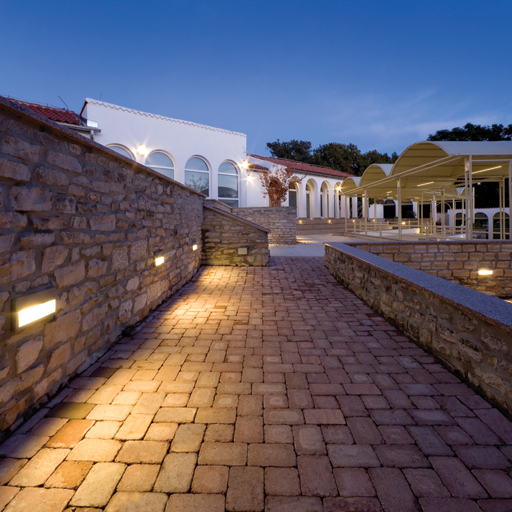

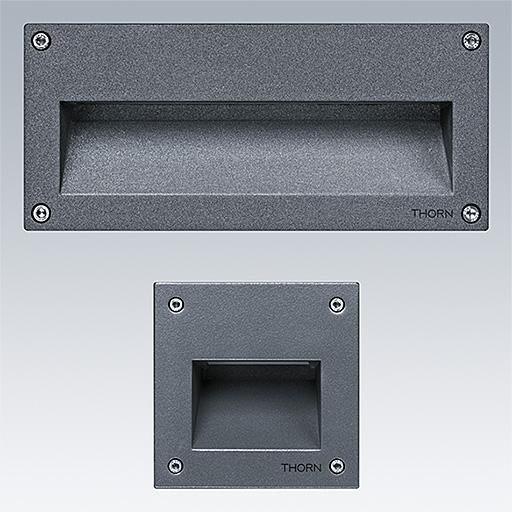

Modular wall recessed range for pathway lighting offering extensive choice including five light distributions, two light sources (LED and CFL), two white LED colour temperatures (3200K and 4200K) and four frame designs (frosted glass, visor, baffle, grid and clear glass) in a square or rectangular shape.
As Thorn Linn.
