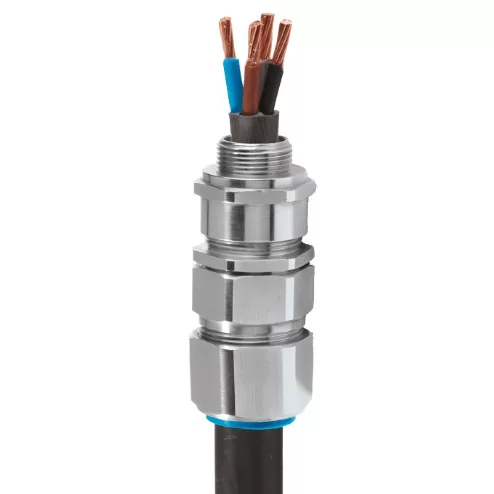

CMP Products – E1W Type Industrial Double Tight Armored Cable Gland

Technicial Specifications:

Compatible double-tight cable gland for armored (steel and aluminum wire armor) cables
Industrial cable gland
Body Material: Nickel plated brass – Brass – Aluminum
Deluge protection feature is optional
IP Protection Class: IP66 standard, IP67 and IP68 optional
Operating Temperature: -60°C to +130°C standard
EMC tests done

Technical Table

Cable Gland Size	Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available)					Cable Bedding Diameter ‘A’		Overall Cable Diameter ‘B’		Armour Range		Across Flats ‘D’	Across Corners ‘D’	Protrusion Length ‘F’	Combined Ordering Reference (*Brass Mertric)			Shroud	Cable Gland Weight (Kgs)
	Standard				Option	Cable Bedding Diameter ‘A’		Overall Cable Diameter ‘B’		Armour Range		Across Flats ‘D’	Across Corners ‘D’		Combined Ordering Reference (*Brass Mertric)
	Metric	Thread Length (Metric) ‘E’	NPT	Thread Length (NPT) ‘E’	NPT	Min	Max	Min	Max	Min	Max	Max	Max		Size	Type	Ordering Suffix
20s16	M20	10.0	1/2″	19.9	3/4″	3.1	8.6	6.1	13.1	0.8	1.25	24.0	26.4	72.5	20S16	E1W	1RA	PVC04	0.16
20S	M20	10.0	1/2″	19.9	3/4″	6.1	11.6	9.5	15.9	0.8	1.25	24.0	26.4	70.0	20S	E1W	1RA	PVC04	0.15
20	M20	10.0	1/2″	19.9	3/4″	6.5	13.9	12.5	20.9	0.8	1.25	30.5	33.6	73.0	20	E1W	1RA	PVC06	0.21
25S	M25	10.0	3/4″	20.2	1″	11.1	19.9	14.0	22.0	1.25	1.6	37.5	41.3	89.0	25S	E1W	1RA	PVC09	0.33
25	M25	10.0	3/4″	20.2	1″	11.1	19.9	18.2	26.2	1.25	1.6	37.5	41.3	89.0	25	E1W	1RA	PVC09	0.33
32	M32	10.0	1″	25.0	1 1/4″	17.0	26.2	23.7	33.9	1.6	2.0	46.0	50.6	86.0	32	E1W	1RA	PVC11	0.43
40	M40	15.0	1 1/4″	25.6	1 1/2″	22.0	32.1	27.9	40.4	1.6	2.0	55.0	60.5	90.0	40	E1W	1RA	PVC15	0.62
50S	M50	15.0	1 1/2″	26.1	2″	29.5	38.1	35.2	46.7	2.0	2.5	60.0	66.0	91.0	50S	E1W	1RA	PVC18	0.75
50	M50	15.0	2″	26.9	2 1/2″	35.6	44.0	40.4	53.0	2.0	2.5	70.1	77.1	95.0	50	E1W	1RA	PVC21	0.95
63S	M63	15.0	2″	26.9	2 1/2″	40.1	49.9	45.6	59.4	2.0	2.5	75.0	82.5	102.0	63S	E1W	1RA	PVC23	1.34
63	M63	15.0	2 1/2″	39.9	3″	47.2	55.9	54.6	65.8	2.0	2.5	80.0	88.0	104.0	63	E1W	1RA	PVC25	1.34
75S	M75	15.0	2 1/2″	39.9	3″	52.8	61.9	59.0	72.0	2.0	2.5	90.0	99.0	115.0	75S	E1W	1RA	PVC28	2.11
75	M75	15.0	3″	41.5	3 1/2″	59.1	67.9	66.7	78.4	2.5	3.0	100.0	110.0	117.0	75	E1W	1RA	PVC30	2.42
90	M90	24.0	3 1/2″	42.8	4″	66.6	78.6	76.2	90.3	3.15	4.0	114.3	125.4	147.0	90	E1W	1RA	PVC32	4.21
100	M100	24.0	4″	44.0	5″	76.0	90.9	86.1	101.4	3.15	4.0	123.0	135.3	140.0	100	E1W	1RA	LSF33	4.45
115	M115	24.0	4″	44.0	5″	86.0	97.9	101.5	110.2	3.15	4.0	133.4	146.7	162.0	115	E1W	1RA	LSF34	6.19
130	M130	24.0	5″	46.8	6″	97.0	114.9	110.2	123.2	3.15	4.0	152.4	167.6	174.0	130	E1W	1RA	LSF35	8.34
Dimensions displayed in millimeters unless otherwise stated
