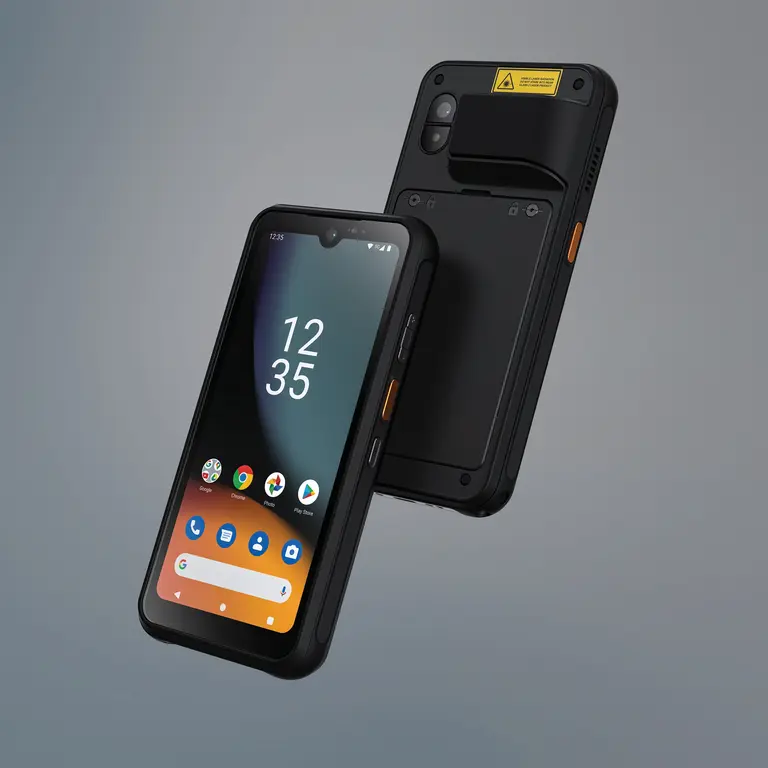

BARTEC – SC9EX1 Smartscanner

Description

The BARTEC SC9^EX1 Smartscanner is the world’s most compact 5G smartscanner for ATEX/IECEx Zone 0/1/21 and NEC Class I, II, III, Division 1 . Featuring a seamlessly integrated Zebra® scan engine, it adds unparalleled scanning efficiency and accuracy. It shares a broad range of accessories, runs on Android^TM 15, and offers comprehensive lifecycle support.

The BARTEC SC9^EX1 Smartscanner is crafted for professionals needing efficient scanning capabilities in hazardous environments. It is ideal for field workers, inventory managers, and safety inspectors who require precise and reliable data capture and communication in tough conditions. Its ability to record 4K video and capture high-quality still images in low light ensures comprehensive documentation and data accuracy, enhancing operational efficiency and safety.

Hardware Specifications

• Processor: Qualcomm® QCM6490 Octa Core 2.7 GHz
• Memory (RAM): 8 GB
• Mass Storage: 128 GB
• Display: 6.1″ AMOLED
• Resolution: 1080 x 2340 pixels
• Front Glass: Gorilla® Glass Victus® (generation 8)
• Touch Function: Capacitive Touch (Stylus, bare or gloved fingertip input)
• Size (L x W x H): 168.7 mm x 83.4 mm x 30.8 mm (6.6 inch x 3.3 inch x 1.2 inch)
• Weight (with battery): 370 g (0.82 lb)
• Battery: Lithium-ion battery 3.68 V/4300 mAh (15.8 Wh)

Connectivity and Network

• SIM: Dual SIM (Nano SIM + eSIM)
• Wireless Connections: WiFi 6, 5G
• Radio Frequency Band:
  • 5G NR (Bands: 1-3, 5, 7, 8, 20, 25, 28, 38, 40, 41, 48, 66, 71, 77, 78)
  • LTE (Bands: 1-5, 7, 8, 12, 13, 17, 20, 28, 38, 40, 41, 48, 66, 71)
  • UMTS (Bands: 1, 2, 4, 5, 8)
  • GSM (Bands: 850, 900, 1800, 1900)
• WLAN-WiFi: Wi-Fi 6 IEEE 802.11a/b/g/n/ac/ax, 2×2 MU-MIMO, Dual band Simultaneous (up to 2042 Mbps data rate and 160 MHz bandwidth)
• Bluetooth: Bluetooth® 5.2 (including Low Energy long range and multiple broadcasts)
• GNSS: GPS, A-GPS, Glonass, Galileo, and BeiDou
• NFC: Read/write NFC tags (e.g., ISO 14443 Type A), contactless payments, and card emulation

Data capture and Audio

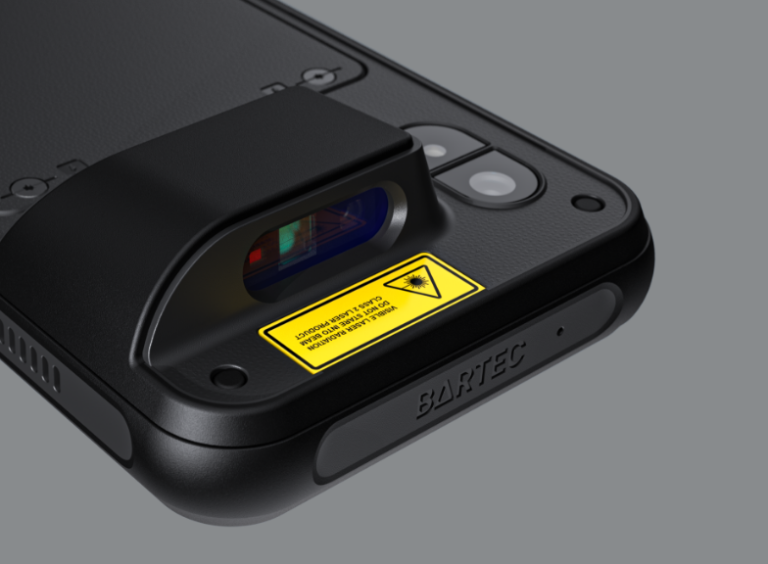

• Barcode scanner: SE55 1D/2D Advanced Range Scan Engine with IntelliFocus™ technology

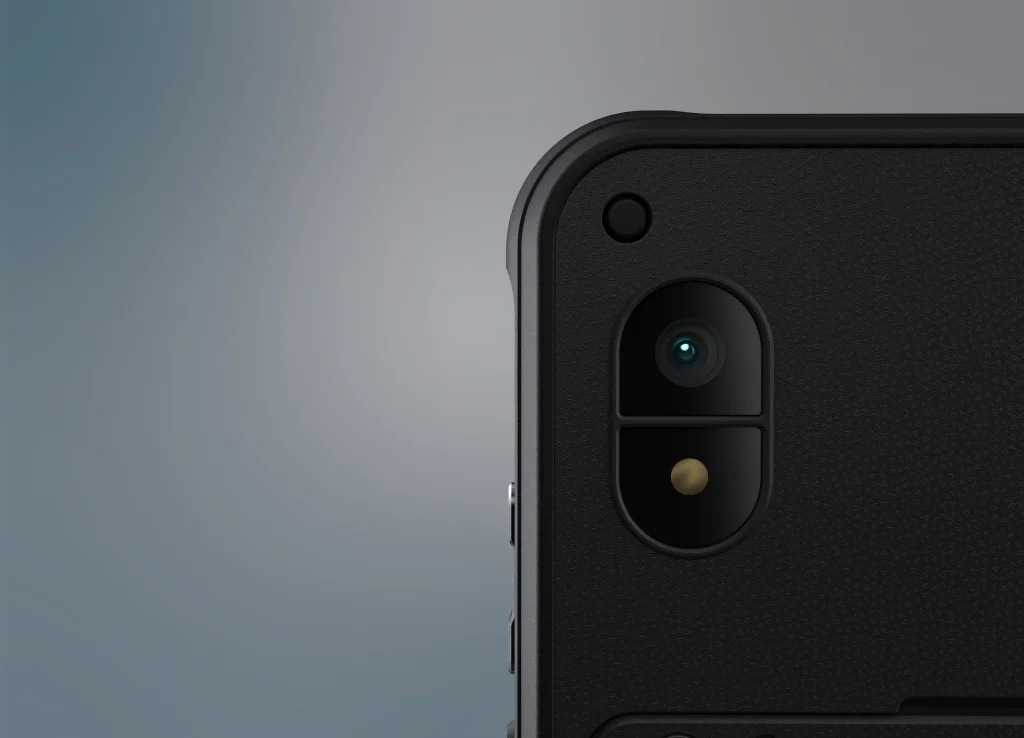

• Back Camera: 48 MP with Auto Focus / Aperture: f/1.79 / Digital Zoom: 8× / Minimum focus distance: 7.5 cm / Photo resolution: 8000 × 6000 (48 MP); 4000 × 3000 (12 MP, Quad Bayer) / Video recording: 4K @ 30 fps; 1080p @ 120 fps (Slow Motion) / Barcode scanning supported (third-party software required)
• Front Camera: 8 MP with fixed focus / Aperture: f/2.0 / Digital Zoom: 8× / Photo resolution: 3264 × 2448 (8 MP) / Video recording: 1080p @ 30 fps; 720p @ 60 fps (Slow Motion)

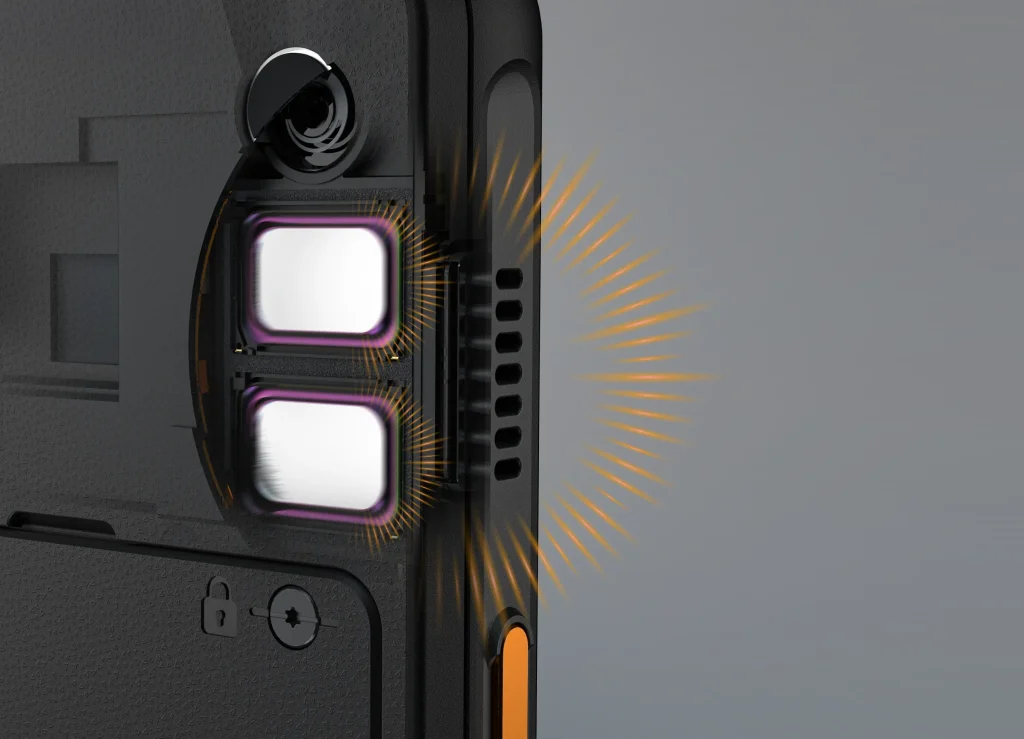

• Voice & Audio: Two microphones, Vibrate alert, Speaker, Bluetooth wireless headset support, High-quality speakerphone
• Notifications: Audible tone, multi-color LEDs, vibration

Additional Features and Accessories

• Operating System: Android^TM 15
• Operating Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
• Protection Class (IEC 60529): IP68
• External I/O: Charging pins, USB-C Port
• Sensors: Accelerometer/Gyroscope, Magnetometer/Compass, Pressure/Barometer, Proximity and Ambient light
• Buttons: 1x on/off button, 2x programmable function button (for PTT, Emergency call or other functions), 1x volume buttons (+/-)
• Scope of Delivery: BARTEC SC9^EX1 Smartscanner, Battery, Battery tool, USB-C cable, Quick Start Guide
• Required (not included): USB-C Charger (e.g., Wall Charger Type G7-S0Z0-0014/0015/0016/0017)
