Attentive and adaptable, Lena Vario lights up corridors whenever needed

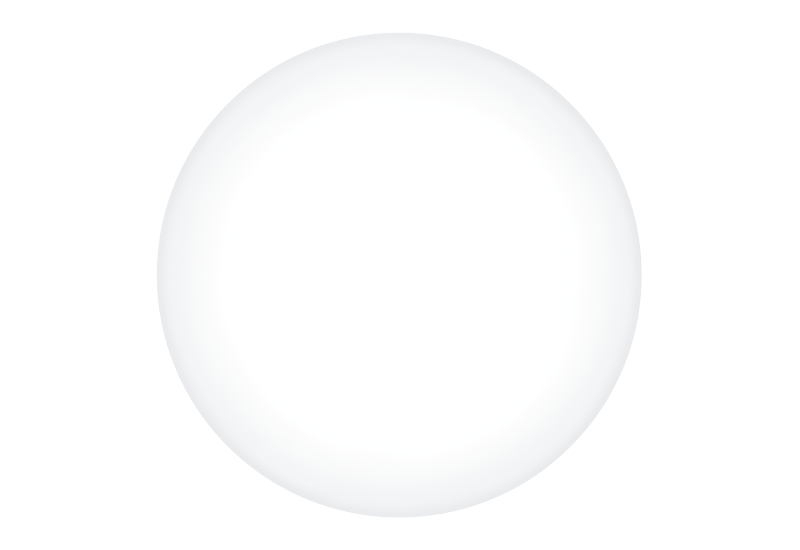

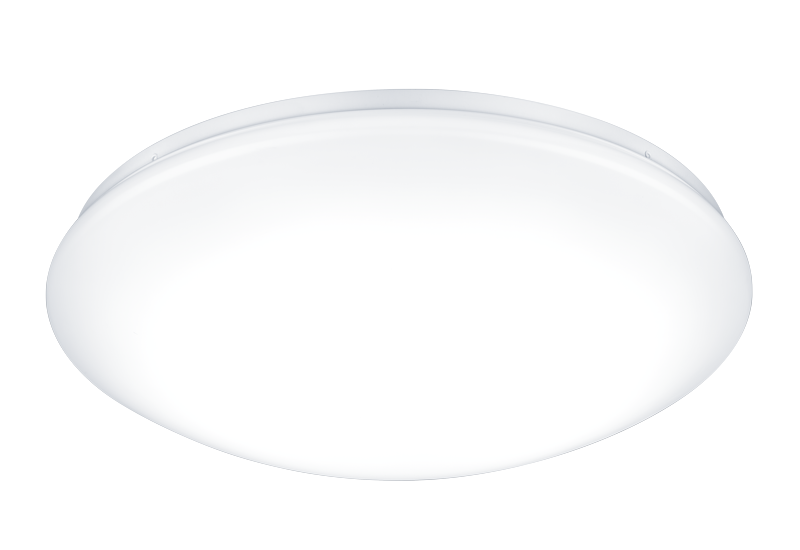

THORNECO – LENA Circular IP44 LED Bulkhead
Meet Lena

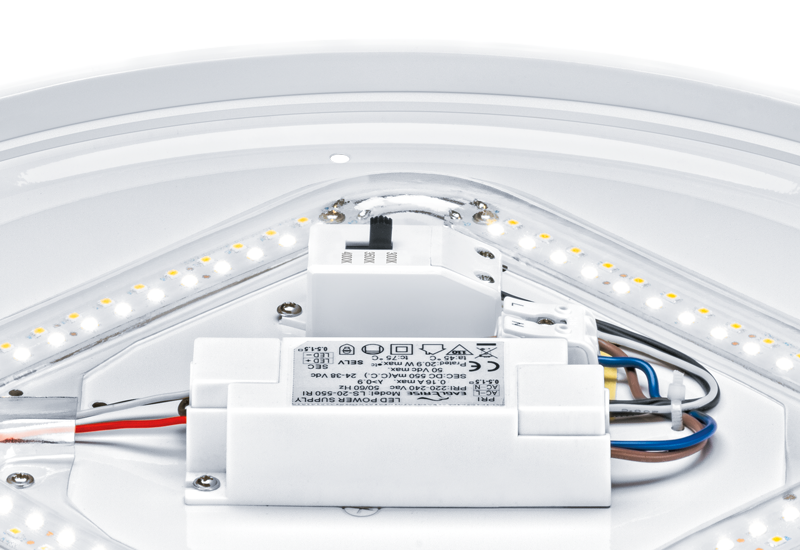

- Three colour temperatures in one product – simply select 3000 K (warm white), 3500 K or 4000 K (neutral white) to suit the application
- Choose between 1400, 1900 and 2500 lm light output
- Direct replacement for 2 × 18 W, 2 × 26 W and 2 × 36 W CFL
- Save up to 55 % energy compared with CFL fittings
- Quality PMMA diffuser for an even light distribution
- Reliable integrated LED technology, ensuring maintenance-free installation and a long lifetime
- Quick and easy installation, loop-in loop-out possible
Please find Circuit Breaker information in the Catalogue Section
Description
Additional information
Brand |
thorn-eco |
---|
Reviews (0)
Be the first to review “THORNECO – LENA Circular IP44 LED Bulkhead” Cancel reply
About brand
Parturient ut id tellus vulputatre ac ultrlices a part ouriesnt sapien dignissim partu rient a a inter drum vehicula. Ornare metus laoreet tincidunt eros rolem tristique pretium malada.
Cras rhoncus vivamus luctus platea arcu laoreet selm. Curae est condenectus sed hac a parturient vestibulum.
Related products
Swedish Neutral Earth Fault Neutralization Device (GFN)
Product Description
The Ground Fault Neutralizer device is capable of fully compensating against all long-term phase-to-earth fault currents (both fundamental and harmonic). In addition, it performs this operation in a very short time. With the use of modern computers and power electronics, the fault current can be completely avoided. This is particularly useful in overhead line networks. It is also useful in industry and city center networks using cable. Because most of the cable faults start as single phase-to-ground. If the fault is not compensated properly, then multi-phase fault occurs by affecting other phases.
GET INFORMATION
BARTEC – Ex-e Medium Voltage Terminal Boxes (6kV to 10kV) for Ex-Zone 1-21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection: Ex II 2G Ex e IIC T6/T5 Gb / Ex II 2D Ex tb IIIC T80 °C/T95 °C Db
- Protection Degree: IP66
- Ambient Temperature: -20°C ÷ +40°C (-55°C ÷ +55°C in certain cases)
- Body Material: Polyester or Stainless Steel
- ATEX Certificate: IBExU 13 ATEX 1001
SCHUCH – e8825 Series LED High Bay Fitting for Ex-Zone (Zone 1, 21 / Zone 2, 22)
Technicial Specifications:
Exproof Zone Class: Zone 1, 21 / Zone 2, 22
Exproof Protection (Gas): II 2 G Ex eb mb q IIC T4 Gb
Exproof Protection (Dust): II 2 D Ex tb IIIC T100 °C Db
IP rating: IP66
Rated voltage: 220 - 240 V, 0 Hz, 50/60 Hz
Tₐ: -30 °C to +55 °C
Mounting material: Y-ropes 3301/3302 Y P, Ceiling brackets steel DW 8825 P
Housing Material: Aluminum Casting
ATEX: IBExU 20 ATEX 1117
IECEx : IECEx IBE 20.0028
GET INFORMATION
BARTEC – Exproof Ex-e High Voltage / High Current Junction Boxes (≤ 10kV & ≤ 1500 Amp) for Ex-Zone 1
Technicial Specifications:
- Exproof Zone Class: Zone 1
- Exproof Protection: Ex II 2G Ex e II T6/T5/T4
- Protection Degree: IP66 (IP67 and IP68 optional)
- Ambient Temperature: -50°C ÷ +40°C (-50°C ÷ +60°C, in certain cases)
- Body Material: Stainless Steel 316L
- ATEX Certificate: DNV-2003-OSL-ATEX-0042
SCHUCH – e8820 Series LED Exproof Explosion-protected LED floodlight (Zone 1, 21 Zone 2, 22)
Technicial Specifications:
Exproof Zone Class: Zone 1, 21 / Zone 2, 22
Exproof Protection (Gas): II 2 G Ex eb mb q IIC T4 Gb
Exproof Protection (Dust): II 2 D Ex tb IIIC T100 °C Db
IP rating: IP66
Rated voltage: 220 - 240 V, 0 Hz, 50/60 Hz
Tₐ: -30 °C to +55 °C
Housing Material: Die-cast aluminium
ATEX: IBExU 20 ATEX 1117
IECEx : IECEx IBE 20.0028
GET INFORMATION
RAYTEC LED – SPARTAN SPX Exproof Projector for Ex-Zone 1- 21
Technical Specifications:
- Exproof Zone Class: hazardous areas - Zone 1 (Gases) - Zone 21 (Dusts)
- Exproof Protection (Gases): Ex II 2 G Ex e mb op is IIC T4 Gb
- Exproof Protection (Dusts): Ex II 2 D Ex tb op is IIIC T82°C Db
- Protection Degree: IP66 / IP67
- Power supply: 110-254V 50/60 Hz AC
- Low voltage: 18-48V AC and 18-69V DC
- Extra low voltage: 12V AC/DC
- Ambient Temperature: -50 °C ÷ +55 °C (The low temperature is -20°C for the battery-powered Emergency features.)
- Body Material: Corrosion Resistant Aluminum, epoxy powder coated
- ATEX Certificate: CML13ATEX3007
- IECEx Certificate: IEC Ex CML 14.0001
- OTHER AVAILABLE CERTIFICATES : UL/CSA, including C1D2; ABS Cert. # 15-LD1364539-1-PD
Toshiba MV Voltage Regulator
MONOPHAZE MV REGULATOR - Product Description
Load changes in electrical systems over the years cause voltage imbalances (voltage rise or fall) in the energy supply system. This harms the power quality. To solve this problem, it is not economically reasonable to reorganize the overhead lines that have been made so far. Apart from this, methods such as the following are used to correct the voltage value;
To increase the step value of the power transformers in the step-down centers,
To make power factor correction by means of capacitor banks,
Establishing new substations.
Medium Voltage Mono-Phase Voltage Regulator has been proven to be the best cost/benefit solution to power quality problems caused by voltage imbalances all over the world. This solution can be easily used in downstream substations, private or operational substations with its flexible installation convenience. Making the voltage regulation from MV (medium voltage) to MV (medium voltage) provides both cost and ease of use compared to other solutions.
GET INFORMATION
BARTEC – Ex-d Power Distribution Board
Technical Specifications:
- Exproof Zone Class: hazardous areas - Zone 1 / 21 (Gases) - Zone 2 / 22 (Dusts)
- Exproof Protection (Gases): II 2G Ex de ia/ib m [ia/ib] IIC T5, T4
- Exproof Protection (Dusts): II 2D Ex td A21 IP 66/65 T 80°C, T 95°C
- Protection Degree: IP65 / IP66
- Ambient Temperature: -20 °C ÷ +40 °C (-55°C ÷ +55°C)
- Body Material: Glass-Fiber Reinforced Polyester, Steel Sheet, Stainless Steel
- ATEX Certificate: DEKRA I3ATEXO2O9
- OTHER AVAILABLE CERTIFICATES : IECEx, CU TR
