Providing high quality light with low glare and high efficiency!

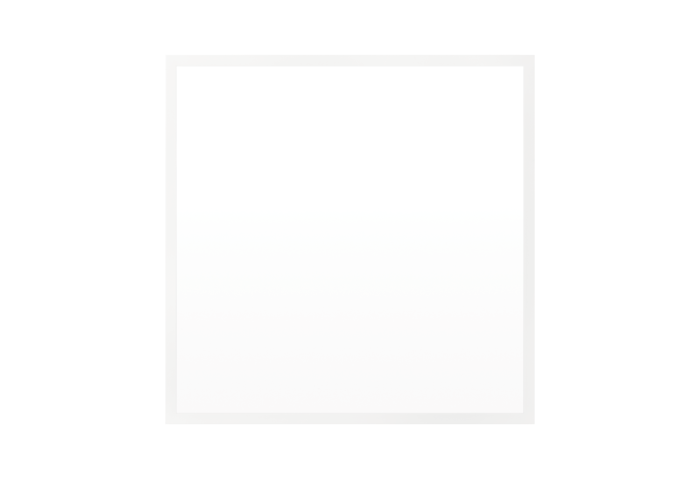

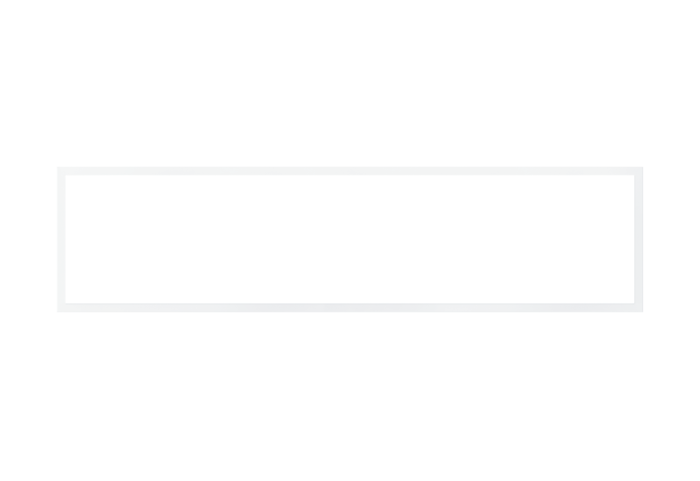

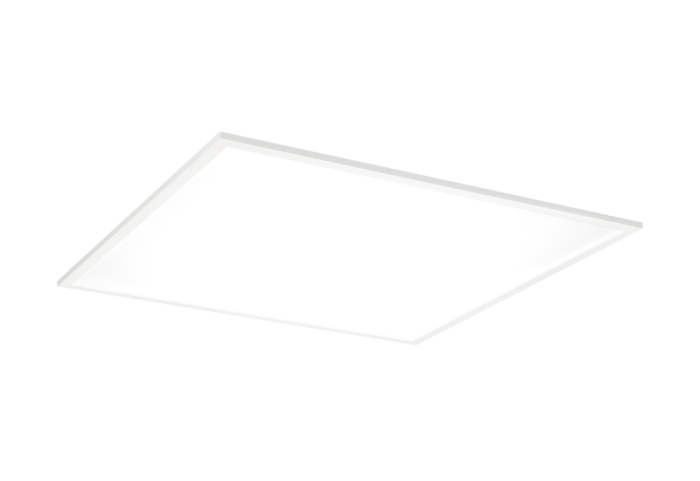

THORNECO – ANNA Recessed LED Panel
Meet Anna

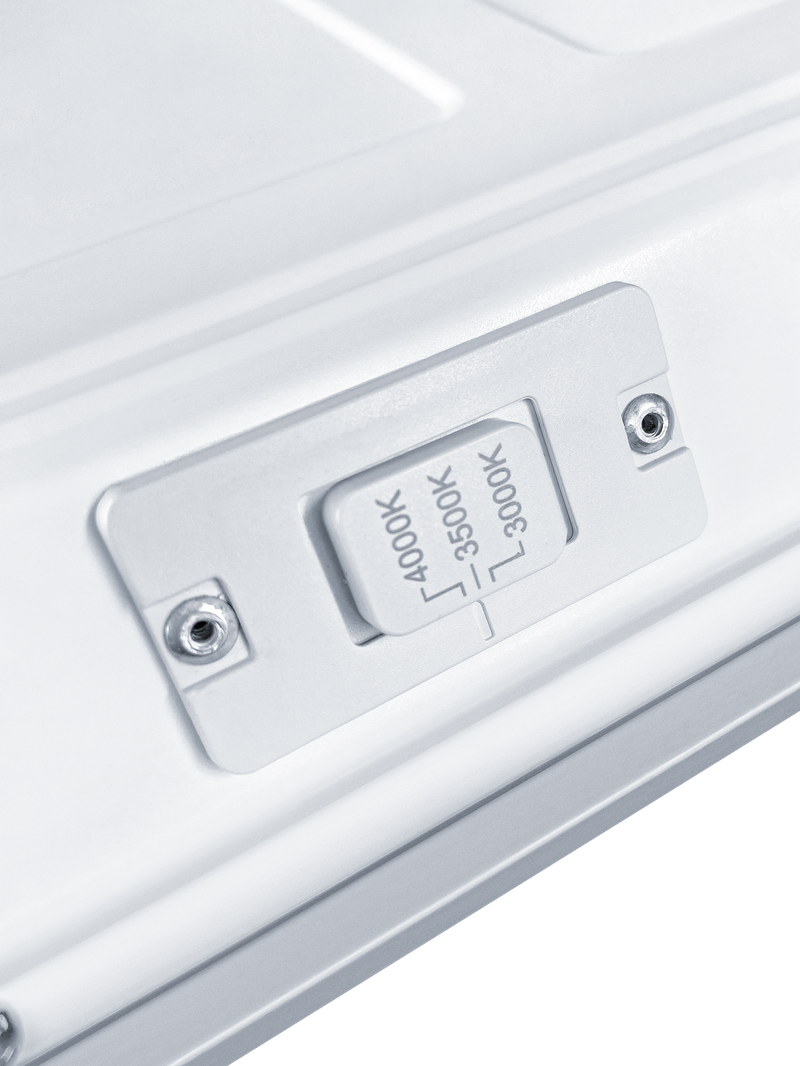

- VARIO Feature (Colour Temperature Switch): The ability to choose your colour temperature on site with the flick of a switch

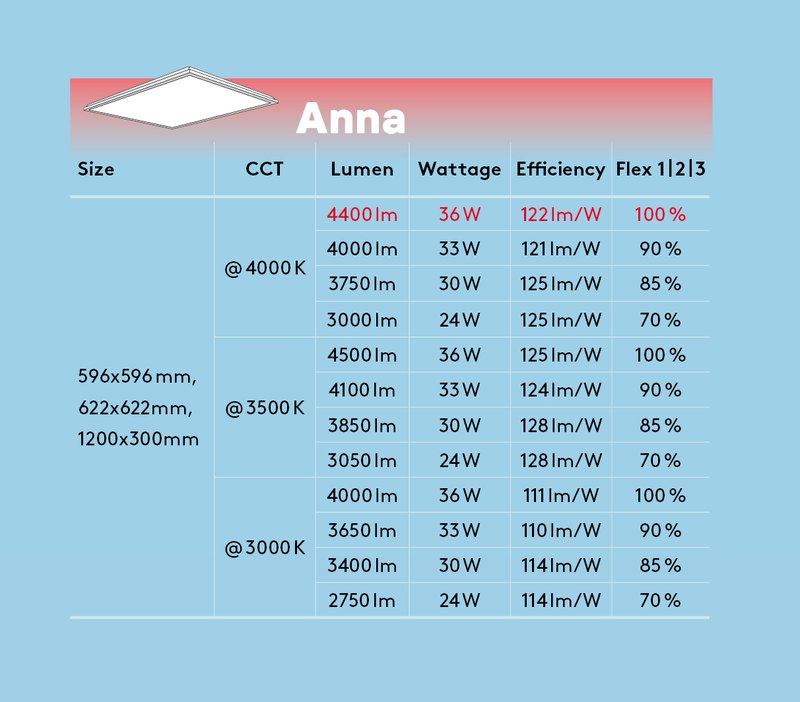

- FLEX Feature (Lumen Output Switch): The flexibility to decide on your lumen package on site with the flick of a switch

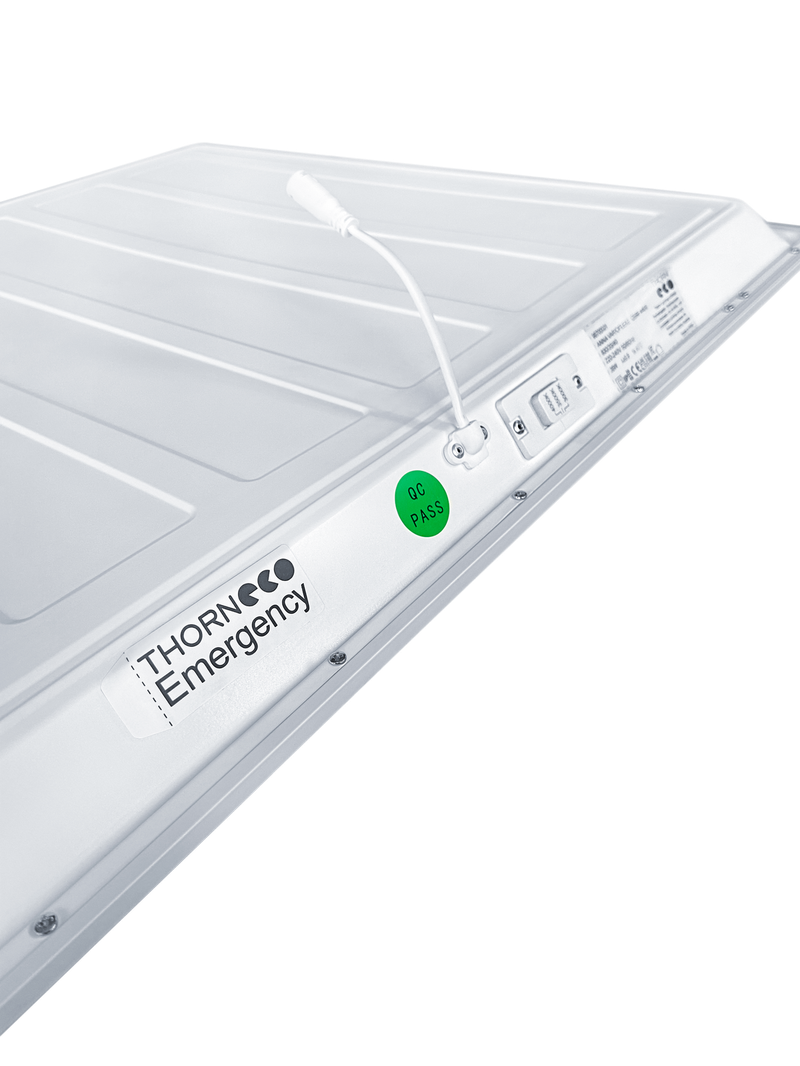

- JUST – adapt on-site to an emergency version using the Just Emergency Plug&Play kit
- Integrated self-test emergency indicator with the JUST E3 self-test kit
- Energy efficient with 125 lm/W
- Gentle, soft and glare free lighting (UGR <19)
- Direct replacement for 4×14 W T5 or 4×18 W T8 fluorescent panels
Categories: General, Interior Lighting, Lighting Products, Panel Lighting Luminaires
Description
Additional information
Brand |
thorn-eco |
---|
Reviews (0)
Be the first to review “THORNECO – ANNA Recessed LED Panel” Cancel reply
About brand
Parturient ut id tellus vulputatre ac ultrlices a part ouriesnt sapien dignissim partu rient a a inter drum vehicula. Ornare metus laoreet tincidunt eros rolem tristique pretium malada.
Cras rhoncus vivamus luctus platea arcu laoreet selm. Curae est condenectus sed hac a parturient vestibulum.
Related products
RAYTEC – SPARTAN SPX LED Zone 1 High Power Floodlight for Ex-Zone 1/21
Technicial Specifications:
- Exproof Zone Class: Zone 1, 21
- Exproof Protection (Gases): Ex II 2G Ex db eb mb op is IIB+H2 T4 Gb
- Exproof Protection (Dusts): Ex II 2D Ex tb op is IIIC T104°C Db
- Protection Degree: IP66 / IP67
- Operating Voltage: 150-264V 50/60 Hz AC (110V AC Voltage Option is available.)
- Ambient Temperature: -50°C to +50°C
- Body Material: Corrosion Resistant Aluminum, epoxy powder coated
- ATEX Certificate: CML17ATEX1148
- IECEx : IEC Ex CML 17.0074
- Other Certifications: EAC Cert.; ABS Cert. # 15-LD1364539-1-PD
BARTEC-FN – EVAC LED Series High Ceiling Exproof Lighting for Ex-Zone 1-21
Technical Specifications:
- Exproof Zone Class: hazardous areas - Zone 1 / 21 (Gases) - Zone 2 / 22 (Dusts)
- Exproof Protection (Gases): Ex db IIC T6/T5/T4 Gb
- Exproof Protection (Dusts): Ex tb IIIC T85/100/135°C Db
- Protection Degree: IP66
- Ambient Temperature: -60 °C to +60 °C
- Life: 80,000 hours L80 B10 @ 25°C
- Standard Light Color: CCT 5700 K
- CRI > 70
- Body Material: Corrosion Resistant Copper-free Aluminum
- Diffuser : High temperature resistant borosilicate glass
- ATEX Certificate: INERIS 01 ATEX 0054X
- OTHER AVAILABLE CERTIFICATES : IECEx INE 130075X, Inmetro – CEPEL 14.2311X, EAC – TC RU C-IT.ГБ08.В.01342, RINA – ELE18111CS_015, RMRS – 13.03516.315
Swedish Neutral Earth Fault Neutralization Device (GFN)
Product Description
The Ground Fault Neutralizer device is capable of fully compensating against all long-term phase-to-earth fault currents (both fundamental and harmonic). In addition, it performs this operation in a very short time. With the use of modern computers and power electronics, the fault current can be completely avoided. This is particularly useful in overhead line networks. It is also useful in industry and city center networks using cable. Because most of the cable faults start as single phase-to-ground. If the fault is not compensated properly, then multi-phase fault occurs by affecting other phases.
GET INFORMATION
Toshiba MV Voltage Regulator
MONOPHAZE MV REGULATOR - Product Description
Load changes in electrical systems over the years cause voltage imbalances (voltage rise or fall) in the energy supply system. This harms the power quality. To solve this problem, it is not economically reasonable to reorganize the overhead lines that have been made so far. Apart from this, methods such as the following are used to correct the voltage value;
To increase the step value of the power transformers in the step-down centers,
To make power factor correction by means of capacitor banks,
Establishing new substations.
Medium Voltage Mono-Phase Voltage Regulator has been proven to be the best cost/benefit solution to power quality problems caused by voltage imbalances all over the world. This solution can be easily used in downstream substations, private or operational substations with its flexible installation convenience. Making the voltage regulation from MV (medium voltage) to MV (medium voltage) provides both cost and ease of use compared to other solutions.
GET INFORMATION
BARTEC – GLL Series Lighting fixtures for high efficiency LED strip lamps
Techical Properties
Exproof Zone Class: hazardous areas - Zone 1 / 2 (Gases) - Zone 21 / 22 (Dusts)
Exproof Protection (Gases): II 2G Ex db eb mb IIC T5 Gb
Exproof Protection (Dusts): II 2D Ex tb IIIC T85°C Db
Protection Degree: IP66
Power supply: 220-240 Vac electronic driver
50/60 Hz 176-280 Vdc electronic driver
Ambient Temperature: -20 °C ÷ +60 °C
Body Material: Glass fiber reinforced polyester resin self-extinguishing acc. to UL94
ATEX Certificate: INERIS 21 ATEX 0029X
IECEx : IECEx INE 21.0056X
GET INFORMATION
BARTEC-FN – SFD – SFDE Series Exproof Floodlight with Halogen and High Pressure Discharge Lampfor Ex-Zone 1 – 21
Technical Specifications:
- Exproof Zone Class: Zone 1 - 21
- Exproof Protection (Gases): Ex II 2G Ex d IIB + H2 T3/T2 Gb & Ex II 2 G Ex de IIB + H2 T3/T2 Gb
- Exproof Protection (Dusts): Ex II 2D Ex tb IIIC T200°C … T240°C Db
- Protection Degree: IP66
- Ambient Temperature: -20 °C ÷ +60 °C
- Body Material: Corrosion Resistant Copper-free Aluminum
- Diffuser : Toughened Glass
- ATEX Certificate: INERIS 01 ATEX 0018
- OTHER AVAILABLE CERTIFICATES : IECEx INE 15.0003X, CEPEL 15.2363X, TC RU C-IT.GB08.B.01342, RINA: ELE18111CS_014, RMRS: 13.03516.315
FALCON Series Cable Cleats
FEATURES
- Third party certification to IEC 61914 Available in three different materials: • Nylon • Low Smoke & Fume (LSF), Zero Halogen (LS0H, Phosphorus Free and V0 Nylon • LUL approved polymer
- Sunlight (UV) & weather resistant
- Operating temperature -40°C to +60°C
- Can be double stacked
- 38 - 135mm in 8 sizes
- Excellent axial & lateral load retention
- Two bolt fixing design
BARTEC- Series FN – SFLA / SFLP / SFLJ Lighting Fixtures for LED lamps for Ex-Zone 2/22
Technicial Specifications:
- Exproof Zone Class: Zone 2, 22
- Exproof Protection: II 3 G Ex ec IIC T4 Gc, II 3 D Ex tc IIIB T115°C Dc
- Protection Degree: IP66
- Ambient Temperature: -40°C to +60°C
- Body Material: Aluminum of Copper parts Suitable for High Corrosive Environment
- Diffuser : Toughened Glass (4mm)
- ATEX Certificate: INERIS 19 ATEX 3010X
- IECEx : IECEx IBE 16.0010
- EAC: TC RU C-IT.BH02.B.00602
