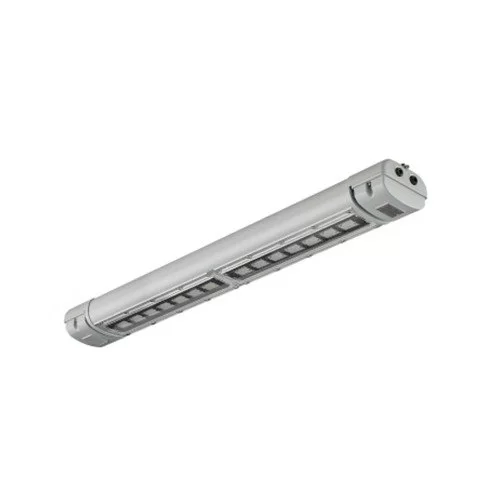

RAYTEC – SPARTAN SPX Linear LED High Output Linear Luminaire for Ex-Zone 1/21

RAYTEC – SPARTAN SPX Linear LED High Output Linear Luminaire for Ex-Zone 1/21

Technicial Specifications : Ex-proof Zone Class: Zone 1, 21 Ex-proof Protection (Gases): Ex II 2G Ex e mb IIC T4 Gb Ex-proof Protection (Dusts): Ex II 2D Ex tb IIIC T75°C Db Protection Degree: IP66 / IP67 Operating Voltage: 110-254V 50/60 Hz AC Low Voltage Options: 18-48V AC/ 18-69V DC and Extreme Low Voltage Option 12V AC/DC Ambient Temperature: -40°C to +55°C (It is -20°C to +50°C for Battery Emergency Types.) Body Material: Corrosion Resistant Aluminum, epoxy powder coated ATEX Certificate: CML14ATEX3119 IECEx : IEC Ex CML 15.0001 Other Certifications: UL/CSA, including C1D2; ABS Cert. #20-1990083-PDA

Zone 1 / 2 / 21 Koruma IP67 Sıcaklık -40°C … 55°C Sertifika ATEX · IECEx · UL · CSA

Documents 3

TECHNICAL DOCUMENT

RAYTEC - SPARTAN SPX Linear LED High Output Linear Luminaire - DATASHEET PDF · 725 KB RAYTEC - SPARTAN SPX Linear LED Linear Luminaire - DATASHEET PDF · 794 KB

CERTIFICATES

RAYTEC - SPARTAN SPX - EU Type Examination Certificate CML 14ATEX3119 Issue 11 PDF · 238 KB

Categories: Ex-proof Linear Lighting Fixtures, Ex-proof Lighting Fixtures, Ex-proof Products

SPARTAN SERIES OFFER THE FOLLOWING FEATURES TO ITS USERS;

Ease of Installation and Maintenance Thanks to the Modular Structure
Emergency Battery Options up to 100% Lighting Value
Wide Ambient Operating Temperature Range -40°C to +55°C
Zone 2 Version Options
5-Year Manufacturer’s Warranty Against Material and Manufacturer’s Defects
UK Based Design and Production to the Highest Standards

Need this product for your project? Our engineers help you choose the right model and prepare a quotation.

Get a Quote Documents

Brand	RAYTEC
Category	Ex-proof Linear Lighting Fixtures
