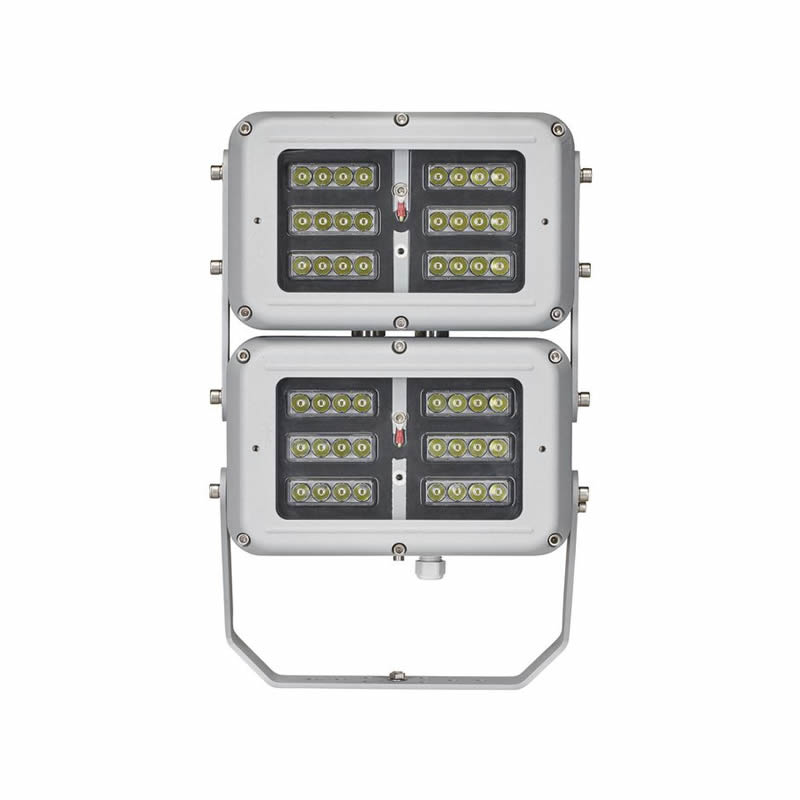

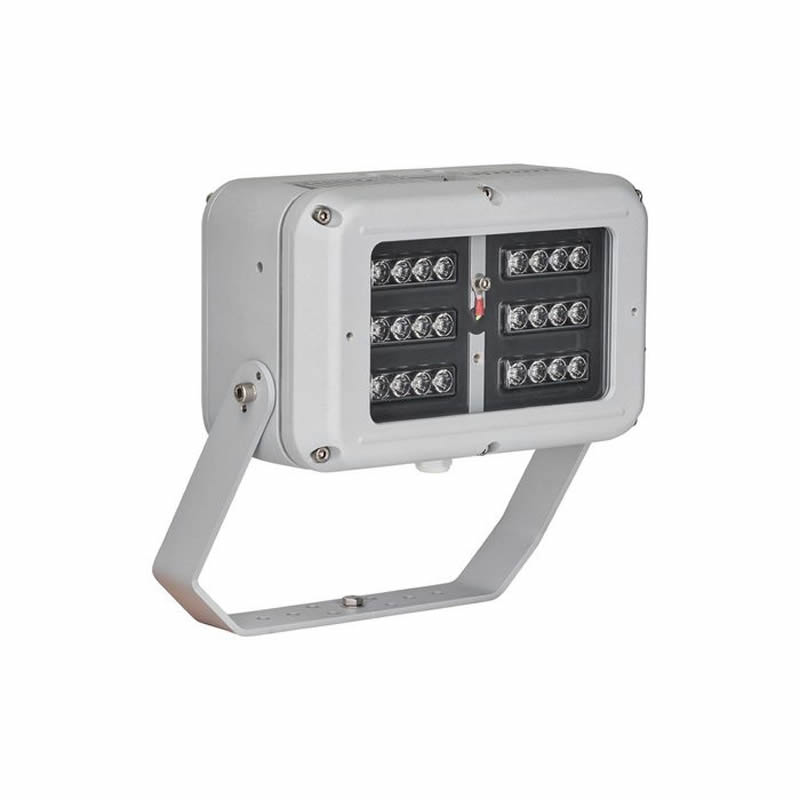

RAYTEC LED – SPARTAN SPX Ex-proof Projector for Ex-Zone 1- 21

Technical Specifications : Ex-proof Zone Class: hazardous areas – Zone 1 (Gases) – Zone 21 (Dusts) Ex-proof Protection (Gases): Ex II 2 G Ex e mb op is IIC T4 Gb Ex-proof Protection (Dusts): Ex II 2 D Ex tb op is IIIC T82°C Db Protection Degree: IP66 / IP67 Power supply: 110-254V 50/60 Hz AC Low voltage: 18-48V AC and 18-69V DC Extra low voltage: 12V AC/DC Ambient Temperature: -50 °C ÷ +55 °C (The low temperature is -20°C for the battery-powered Emergency features.) Body Material: Corrosion Resistant Aluminum, epoxy powder coated ATEX Certificate: CML13ATEX3007 IECEx Certificate: IEC Ex CML 14.0001 OTHER AVAILABLE CERTIFICATES : UL/CSA, including C1D2; ABS Cert. # 15-LD1364539-1-PD

Get a Quote

Zone 1 / 2 / 21 Koruma IP67 Sıcaklık -50°C … 55°C Sertifika ATEX · IECEx · UL · CSA

Documents 3

TECHNICAL DOCUMENT

RAYTEC - SPARTAN LED Zone 1/21 SPX BL24 Flood Light - DATASHEET PDF · 436 KB RAYTEC - SPARTAN SPX Flood LED Zone 1 Flood Light Standard and Emergency Variants - DATASHEET PDF · 509 KB

CERTIFICATES

RAYTEC - EU Type Examination Certificate CML 14ATEX3119 Issue 11 - Certificate PDF · 238 KB

Categories: Ex-proof Floodlight, Ex-proof Lighting Fixtures, Ex-proof Products

SPARTAN SERIES OFFER THE FOLLOWING FEATURES TO ITS USERS;

Ease of Installation and Maintenance Thanks to the Modular Structure
Emergency Battery Options up to 100% Lighting Value
Possibility to add a Battery Module to a Battery-Free Product later
VARIO Lens Technology – Ease of Modification with Different Circular and Elliptical Lens Types from 10° to 120°
Wide Ambient Operating Temperature Range -50°C … +55°C
Zone 2 Version Options
5-Year Manufacturer’s Warranty Against Material and Manufacturer’s Defects
UK Based Design and Production to the Highest Standards
