Home Exproof Products Exproof All Products RAYTEC – SPARTAN SPX LED Zone 1 High Power Floodlight for Ex-Zone 1/21
BARTEC - GLL Series Lighting fixtures for high efficiency LED strip lamps
BARTEC - GLL Series Lighting fixtures for high efficiency LED strip lamps
Back to products
BARTEC - Ex-d Power Distribution Board
BARTEC - Ex-d Power Distribution Board
raytec

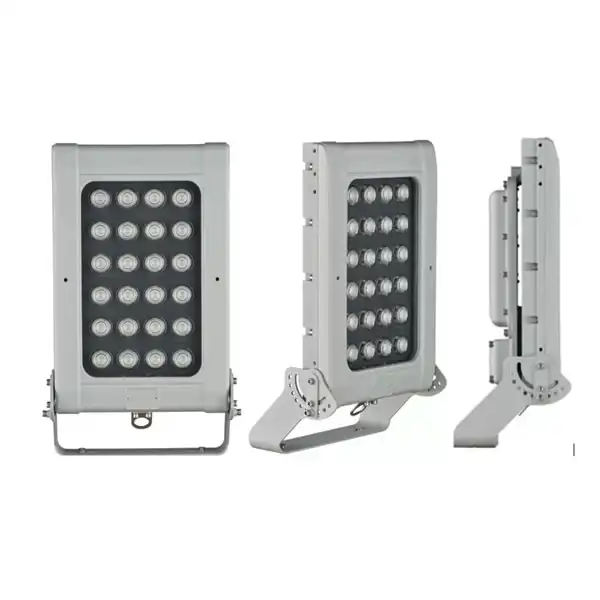

RAYTEC – SPARTAN SPX LED Zone 1 High Power Floodlight for Ex-Zone 1/21

Technicial Specifications:

  • Exproof Zone Class: Zone 1, 21
  • Exproof Protection (Gases): Ex II 2G Ex db eb mb op is IIB+H2 T4 Gb
  • Exproof Protection (Dusts): Ex II 2D Ex tb op is IIIC T104°C Db
  • Protection Degree: IP66 / IP67
  • Operating Voltage: 150-264V 50/60 Hz AC (110V AC Voltage Option is available.)
  • Ambient Temperature: -50°C to +50°C
  • Body Material: Corrosion Resistant Aluminum, epoxy powder coated
  • ATEX Certificate: CML17ATEX1148
  • IECEx : IEC Ex CML 17.0074
  • Other Certifications: EAC Cert.; ABS Cert. # 15-LD1364539-1-PD

GET INFORMATION

Categories: Exproof All Products, Exproof Lighting Fixtures, Exproof Products, General
Share:
  • Description
  • Additional information
Description

SPARTAN HPFL SERIES PROVIDES THE FOLLOWING FEATURES TO ITS USERS;

  • Ease of Installation and Maintenance Thanks to the Modular Structure
  • Remote Supply Opportunity Up to 100 meters Thanks to Optional Detachable Power Supply Cell
  • Wide Ambient Operating Temperature Range -50° to +50°
  • Control Possibility via DALI / Dimming System as Standard
  • Zone 2 Version Options
  • 5-Year Manufacturer’s Warranty Against Material and Manufacturer’s Defects
  • UK Based Design and Production to the Highest Standards

TECHNICAL DOCUMENT

RAYTEC - SPARTAN SPX LED Zone 1 High Power Floodlight - DATASHEET

CERTIFICATES

RAYTEC - SPARTAN SPX - EU Type Examination Certificate CML 17ATEX1148 Issue 2
Additional information
Brand

raytec
