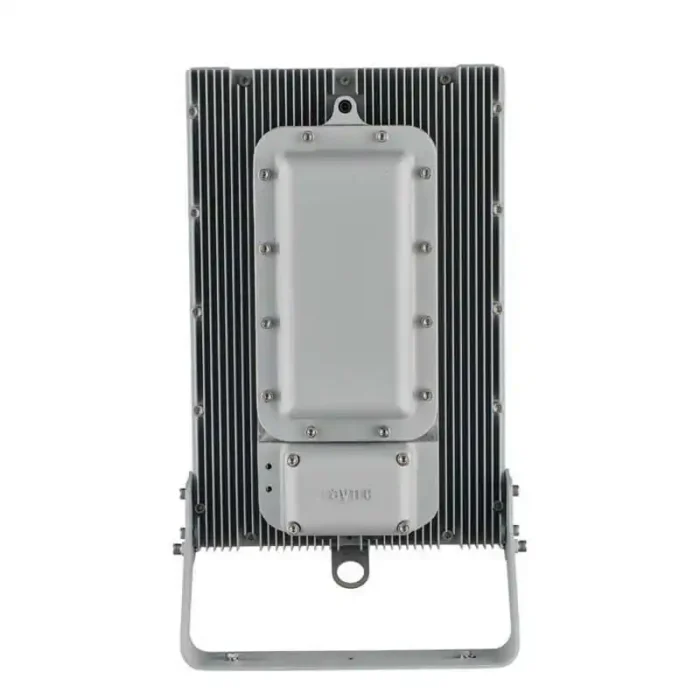

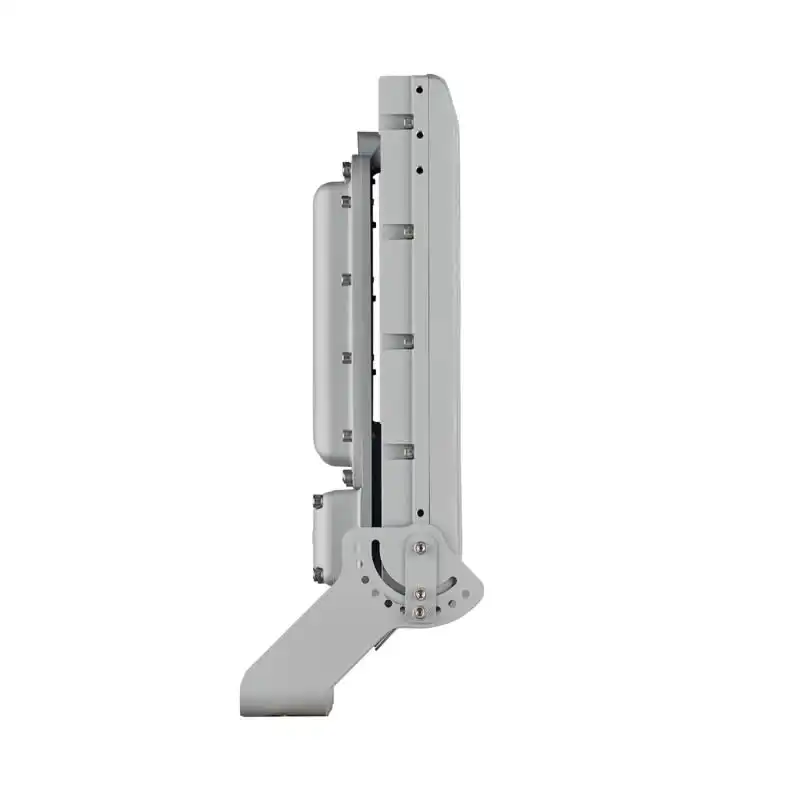

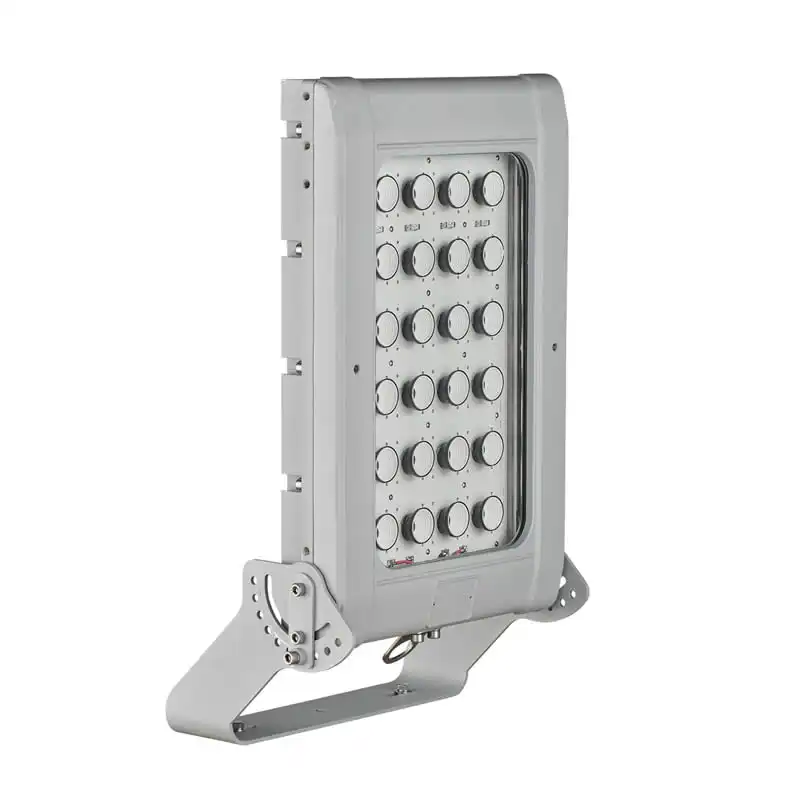

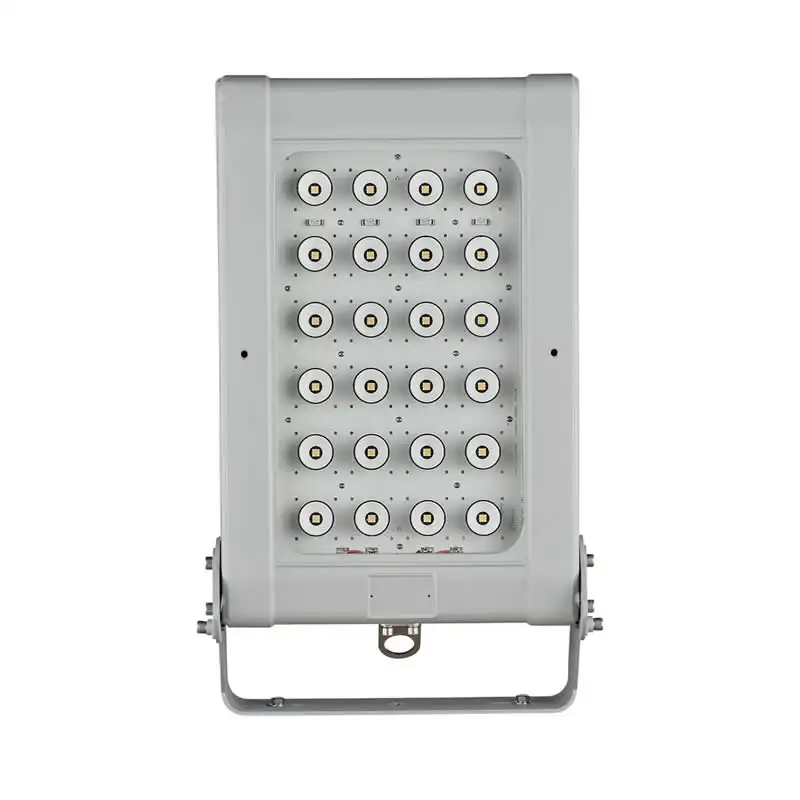

RAYTEC – SPARTAN High Power Ex-Proof Floodlight
-
TECHNICAL SPECIFICATIONS
-
Ex-Proof Zone Classification: Zone 2, 22
-
Ex-Proof Protection (Gas): Ex ec nR IIC T4 Gc
-
Ex-Proof Protection (Dust): Ex tc IIIC T104°C Dc
-
Ingress Protection: IP66
-
Operating Voltage: 110–277VAC 50/60Hz
-
Operating Ambient Temperature: -50°C to +50°C
-
ATEX Certificate: CML 17ATEX 4149
-
Other Certifications: IECEx CML 17.0074
-
Description
The SPARTAN High Power Floodlight series is designed to illuminate large, open areas in hazardous environments. Available in a range of outputs from 20,000 to 34,000 lumens, the High Power Floodlight utilizes Raytec’s proven, long-life LED technology to deliver a service life of 10 years or more. All SPARTAN luminaires come with an industry-leading 5-year warranty.
Additional information
| Brand |
raytec |
|---|
