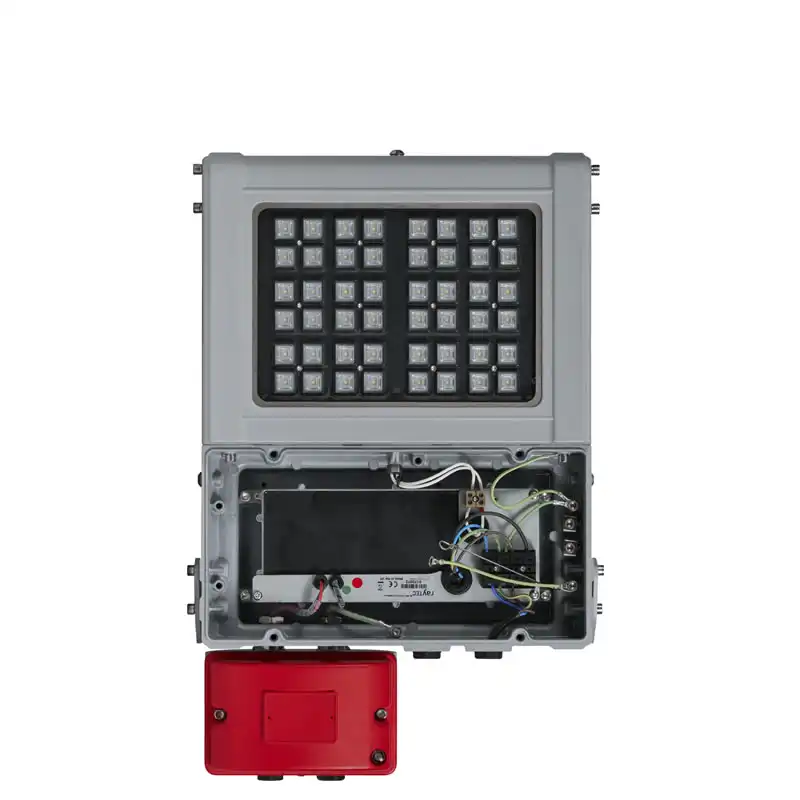

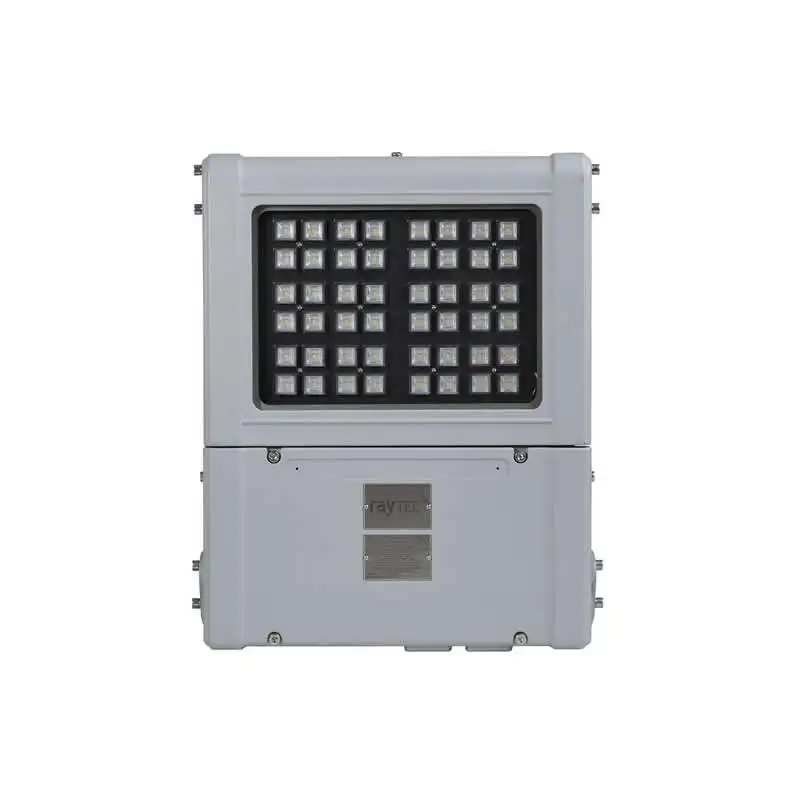

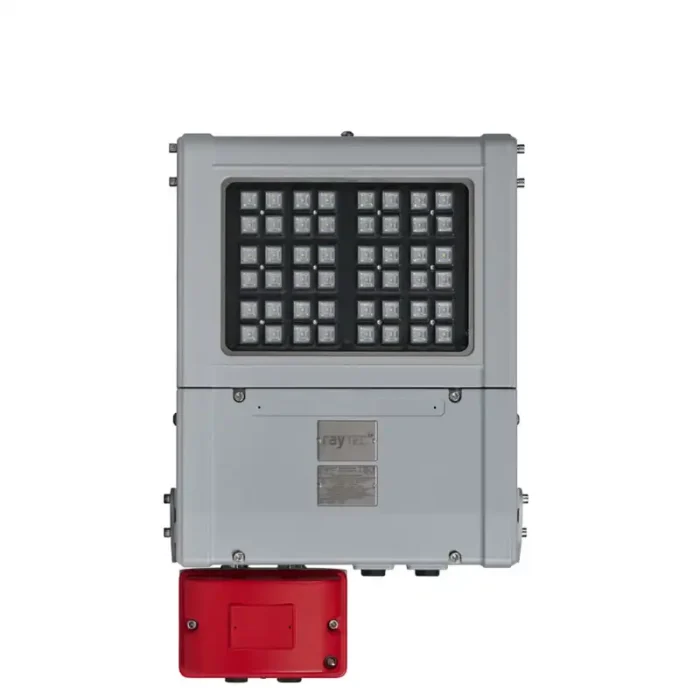

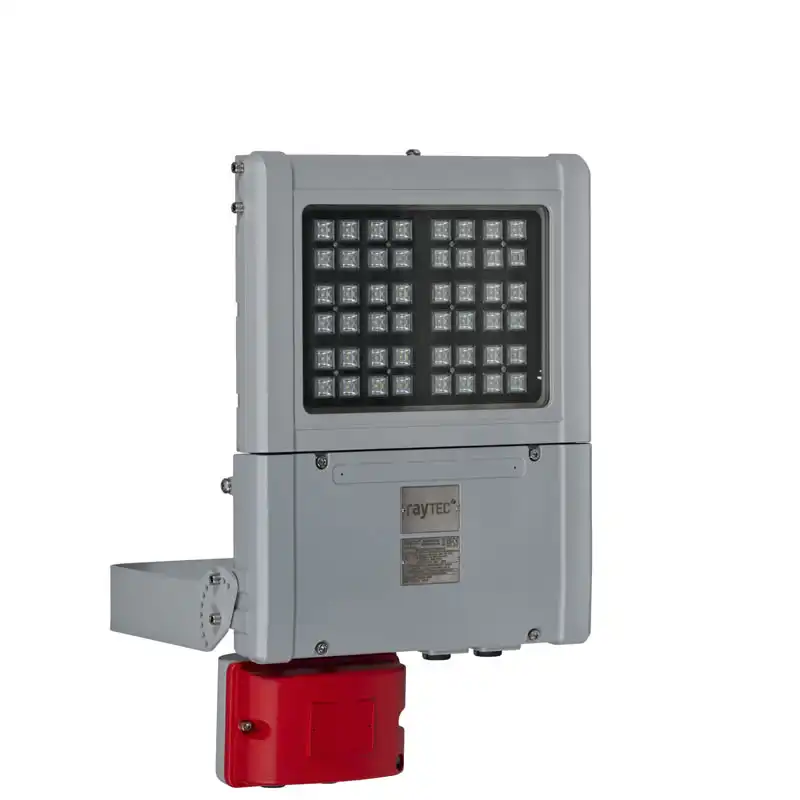

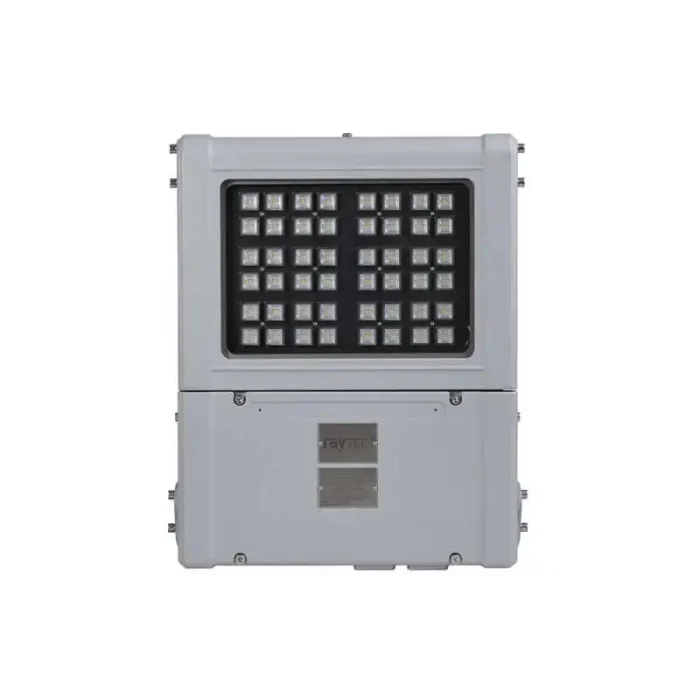

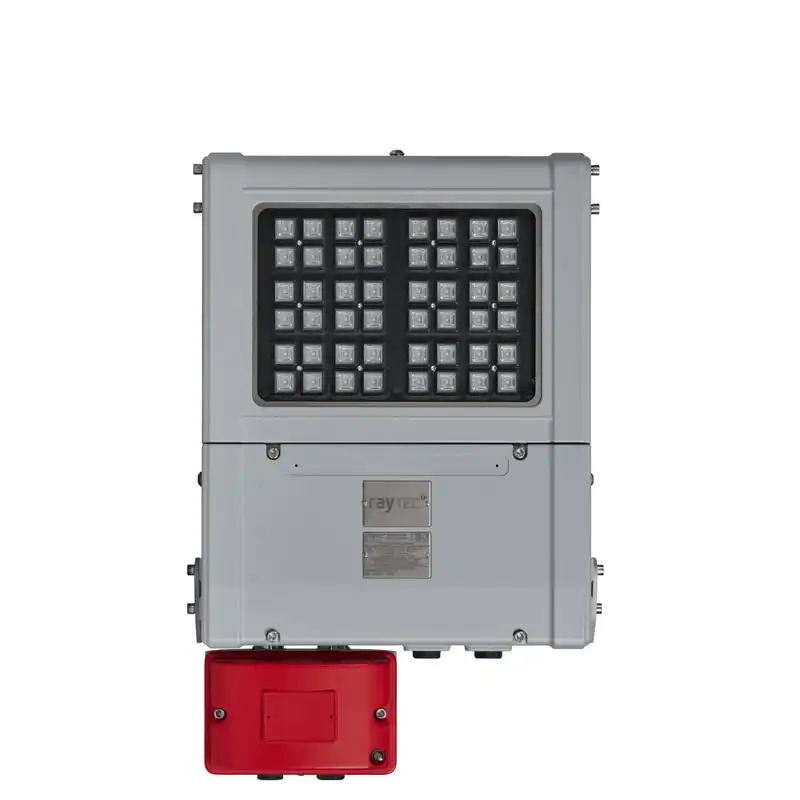

RAYTEC – Spartan Mid Power Flood

ATEX Rating ATEX, UKEX and IEC Ex rated for Gas and Dust
Hazardous Area Rating Zone 1 (Gas), Zone 21(Dust)
Certificates CML21ATEX3317 & IEC Ex CML21.0037 or CML21UKEX3319
Gas II 2 G D
Ex eb mb IIC T4 Gb
Ta= -40°C to +60°C
(-20°C to +50°C emergency variants)
Dust Ex tb IIIC T90°C Db
Ta= -40°C to +60°C
(-20°C to +50°C emergency variants)
ABS Certificate # 23-2432337-PDA
Categories: Exproof All Products, Exproof Products, General
Share:
  • Description
  • Additional information
Description

Description

The SPARTAN Mid Power Flood is a high-performance ATEX LED floodlight designed for illuminating large, open hazardous areas. Available with a wide output range of 5,000 to 15,000 lumens, it utilizes Raytec’s long-life LED technology to ensure a minimum 10-year lifespan. All SPARTAN luminaires come with a 5-year warranty.

NEW Intelligent Emergency variants are now available with 90-minute and 180-minute duration options as standard (other options available).

TECHNICAL DOCUMENT

RAYTEC - Spartan Mid Power Flood - Datasheet

CERTIFICATES

RAYTEC - Spartan Mid Power Flood ATEX
RAYTEC - Spartan Mid Power Flood IECEx
Additional information
Brand

raytec
