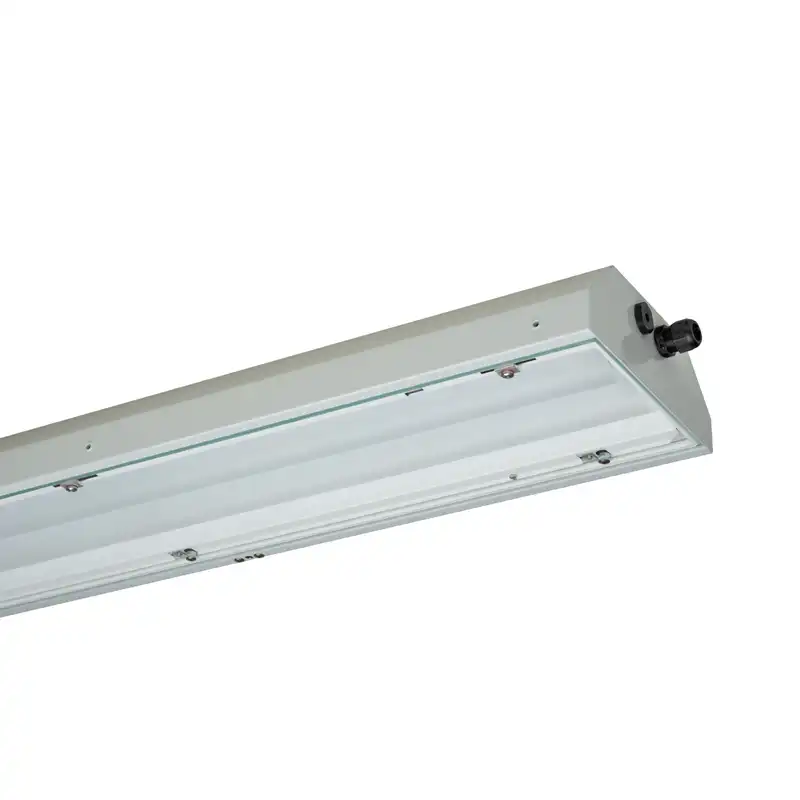

SCHUCH – e821 LED Ex-proof Linear Luminaire

Technical Specifications: Ex-proof Zone Classification: Zone 1, 21 / Zone 2, 22 Explosion Protection (Gas): II 2G Ex eb mb q IIC T4 Gb Explosion Protection (Dust): II 2D Ex tb IIIC T80°C Db Ingress Protection: IP65 Operating Voltage: 220–240V AC/DC, 0 or 50/60Hz, with overload, overvoltage, and short-circuit protection Ambient Operating Temperature: -30°C to +55°C ATEX Certificate: IBExU 20 ATEX 1017 Other Certifications: IECEx IBE 19.0032

Get a Quote

Zone 1 / 2 / 21 / 22 Koruma IP65 Sıcaklık -30°C … 55°C Sertifika ATEX · IECEx

Documents 1

TECHNICAL DOCUMENT

SCHUCH - e821 LED Ex-proof Linear Luminaire PDF · 408 KB

Categories: Ex-proof Linear Lighting Fixtures, Ex-proof Lighting Fixtures, Ex-proof Products

The e821 series of explosion-protected pitched roof luminaires features a robust, ultra-flat sheet steel housing without external clips or latches, combined with a frameless flat tempered safety glass with an internal central locking system.

Its internal design also sets it apart:

Innovative encapsulated LED modules not only protect against mechanical and electrostatic damage but, when combined with frosted LED covers, ensure uniform illumination and excellent glare control.
Optional mounting frames and swivel arm accessories provide maximum flexibility for installation.
