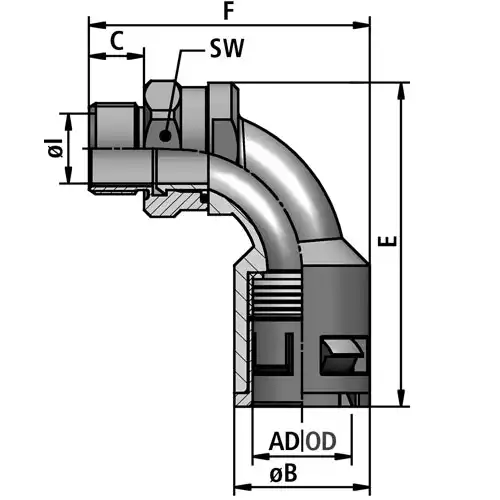

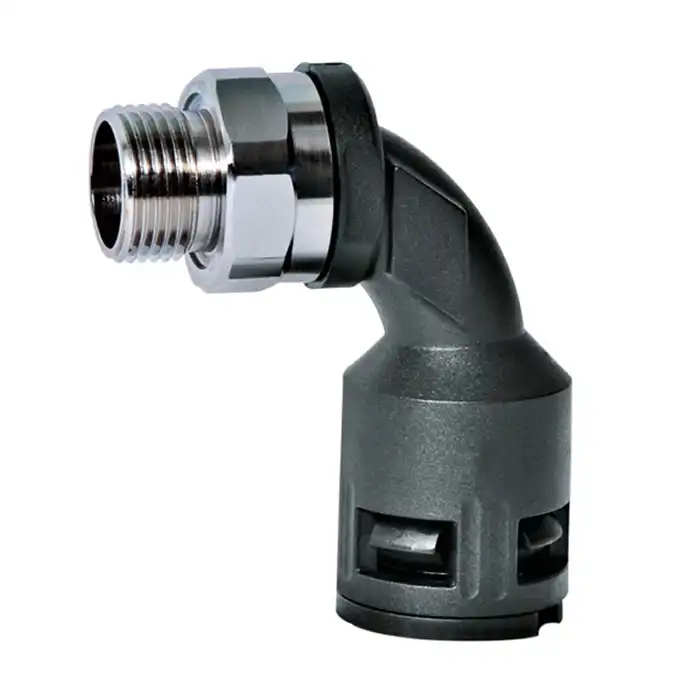

FLEXA – RQBK90DR-M
Plastic connector, quick-type, bend 90°, metric turnable nickel-plated brass outer thread, integrated snap-in sleeve, with seeling, high density, incl. O-ring (OR) and flat sealing (FRH), EN 45545-2 (HL3)
- Material: PA plastics | nickel-plated brass 58
- Temperature: -50°C … +120°C
- IP class [acc. to EN 60529]: IP 68 | IP 69K
Description
| FLEXA No. | Colour | OD [mm] | Profile | ID [mm] | OD [mm] | BR stat. [mm] | BR dyn. [mm] | Weight [kg/m] | PU [m] |
|---|---|---|---|---|---|---|---|---|---|
| 11249202006 | Black | 10,0 | fine | 6,6 | 10,0 | 13 | 35 | 0,020 | 50 |
| 11249202010 | Black | 13,0 | fine | 9,9 | 13,0 | 15 | 45 | 0,025 | 50 |
| 11249202012 | Black | 15,8 | fine | 12,3 | 15,9 | 25 | 55 | 0,040 | 50 |
| 11249202016 | Black | 21,2 | fine | 16,7 | 21,5 | 35 | 75 | 0,070 | 50 |
| 11249232023 | Black | 28,5 | coarse | 21,6 | 28,7 | 55 | 100 | 0,105 | 50 |
| 11249232029 | Black | 34,5 | coarse | 27,7 | 34,7 | 65 | 120 | 0,125 | 25 |
| 11249232036 | Black | 42,5 | coarse | 35,7 | 42,5 | 90 | 150 | 0,150 | 25 |
| 11249232048 | Black | 54,5 | coarse | 46,7 | 54,5 | 100 | 190 | 0,250 | 25 |
PROPERTIES
- Properties: resistant against oil and benzine
- widely resistant to acids and solvents
- free of silicone, cadmium, halogen
- fit for high mechanical stress
- impact-resistant
- high torque of thread connection
- swiveling also after installation
