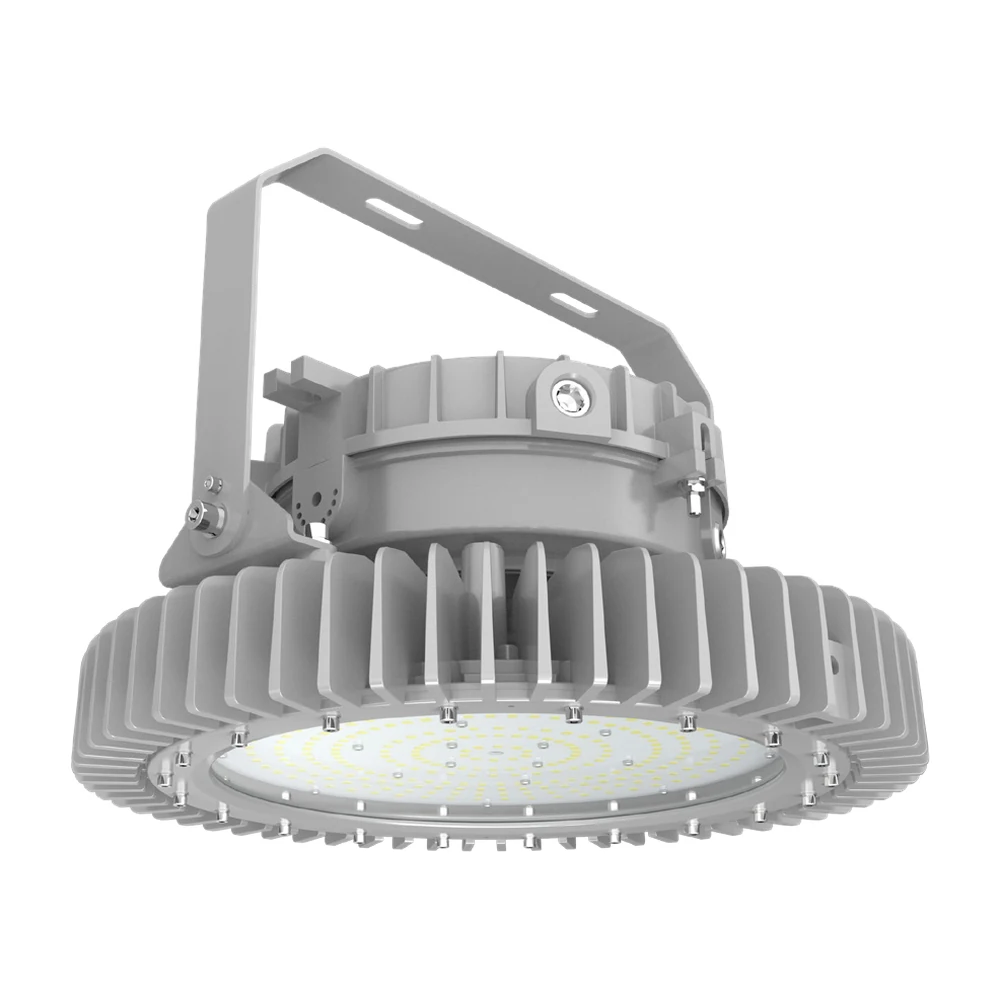

BARTEC - BLUX Ex1 Series LED Exproof High Bay Luminaire (ZONE 1 / 21)
Technical Specifications:
• Zone Classification: Zone 1, 21
• Ex Protection (Gas): Ex II 2G Ex eb mb IIC T6...T4 Gb
• Ex Protection (Dust): Ex II 2D Ex tb IIIC T80°C...T100°C Db
• ATEX Certificate: TPS 25 ATEX 133310 0003 X
• IECEx Certificate: IECEx TPS 25.0055X
• Protection Class: IP66 – IK08 (glass cover) / IK10 (with wire guard)
• Ambient Temperature: -40 °C ... +65 °C (depending on model)
• Power Supply: 200-250 V AC
• Power Range: 20 W - 400 W (2,800 - 56,000 lm)
• Luminous Efficacy: up to 147 lm/W
• Colour Temperature: 4000 K standard (3000 / 5000 / 5700 / 6500 K on request), CRI above 70
• Lifetime: L70 over 78,000 hours, Ta 55 °C
• Optics: 120° standard (40° / 45° / 60° / 90° on request)
• Dimming: 0-10 V (DALI on request)
• Body: Low copper aluminium, grey RAL 7040
• Diffuser: Tempered glass and PC
• Hardware: Stainless steel AISI 316
• Cable Entry: Side 4 x 3/4 inch NPT / Top 1 x 3/4 inch NPT
• Mounting: Adjustable bracket for ceiling and wall mounting (standard)
• Model Sizes: B2 / BX / B3 / B4 – 3.5 - 17.0 kg
Mounting: Ceiling and wall mounting as standard; hook pendant and trunnion mounting on request
Cable entry: Side 4 x 3/4 inch NPT, top 1 x 3/4 inch NPT; side M20, M25, 1/2 inch NPT and top M25 on request
Impact protection: IK08 with glass cover, IK10 when the wire guard is selected
Typical Applications:
Ideal for indoor process areas of refineries, petrochemical and chemical plants, pharmaceutical and food production facilities, animal feed, sugar, flour and coal processing plants with combustible dust risk, high-bay warehouses, hangars and filling areas, as well as paint booths and solvent storage units.
