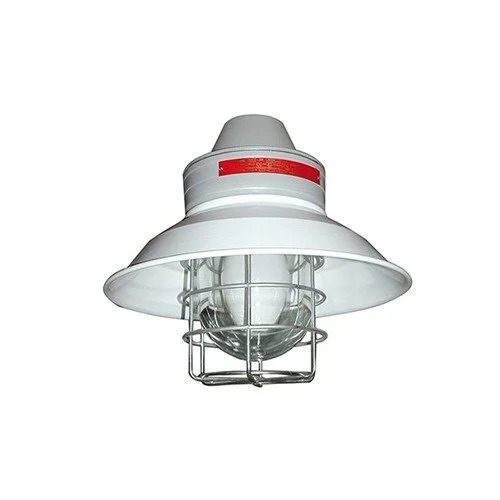

BARTEC – EVAC lighting fixtures For incandescent and discharge lamps for Ex-Zone 1/2 – 21/22

Technical Specifications : Ex-proof Zone Class: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts) Ex-proof Protection (Gases): II 2 G Ex d IIC T6÷T2 Gb Ex-proof Protection (Dusts): II 2 D Ex tb IIIC T85°C-T225°C Db Protection Degree: IP66 Power supply (PRC): Conventional ballast 230V – 50Hz (p.f. corrected – cos ρ ≥ 0,95) Ambient Temperature: -60 °C ÷ +60 °C Body Material: Marine grade copper free aluminium (control gear & lamp body) ATEX Certificate: INERIS 01 ATEX 0054X OTHER AVAILABLE CERTIFICATES : IECEx: IECEx INE 13.0075X – INMETRO: CEPEL 14.2311X – EAC: TC RU C-IT.ГБ08.В.01342 (-60°C÷+60°C) – RINA: ELE18111CS_015 – RUSSIAN MARINE CERTIFICATE (RMRS): 13.03516.315

Get a Quote

Zone 1 / 2 / 21 / 22 Koruma IP66 Sertifika ATEX · IECEx

Documents 3

TECHNICAL DOCUMENTS

Datasheet (EN) PDF · 2,8 MB

CERTIFICATES

ATEX Certificate – INERIS 01ATEX0054X PDF · 1,8 MB IECEx Certificate – IECEx INE 13.0075X PDF · 2,1 MB

Categories: Ex-proof High Bay Lighting Fixtures, Ex-proof Lighting Fixtures, Ex-proof Products

Optional Features:

Optional mounting accessories suitable for different mounting types
Optional external reflectors
Optional diffuser protective wire mesh

Common Uses:

Environments where explosive dust is generated in their operation, such as Offshore Fields, Oil and Gas drilling and production sites, and grain, flour, sugar or timber industries.
