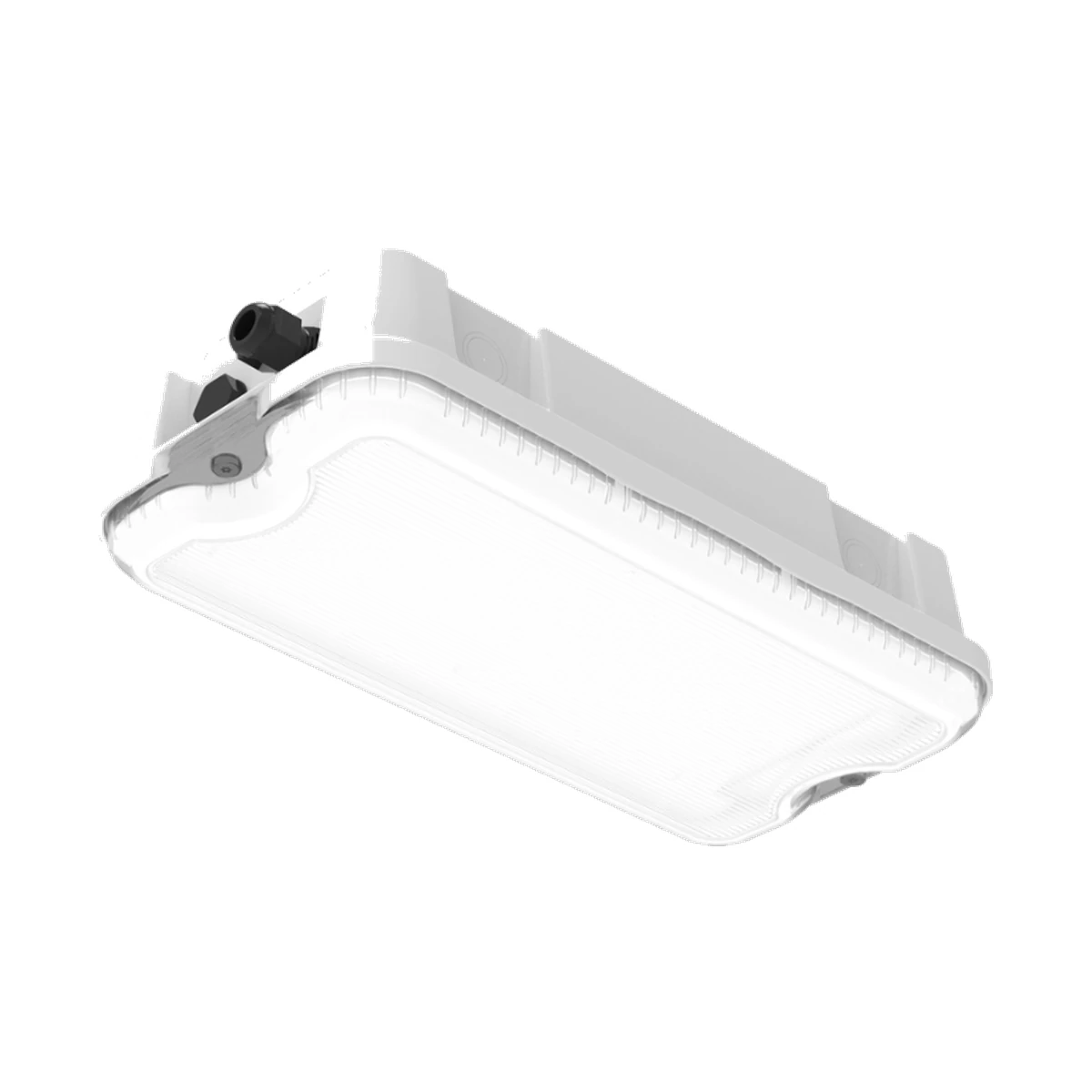

BARTEC - ESCAPE Ex1 Series LED Exproof Emergency Lighting Fixture (ZONE 1 / 21)
Technical Specifications:
• Zone Classification: Zone 1 (Gases), Zone 21 (Dusts)
• Ex Protection (Gas): Ex II 2G Ex eb mb IIC T4 Gb
• Ex Protection (Dust): Ex II 2D Ex tb IIIC T85°C Db
• ATEX Certificate: FTZU 26 ATEX 0001X
• IECEx Certificate: IECEx FTZU 26.0005X
• Protection Class: IP66 / IP67 – IK08
• Ambient Temperature: -30 °C ... +50 °C (0 °C ... +35 °C for emergency versions)
• Power Supply: 220-240 V AC 50/60 Hz / 220-240 V DC
• Power and Output: 15 W – 1,751 lm (117 lm/W)
• Luminous Efficacy: up to 126 lm/W
• Colour Temperature: 5000 K standard (3000 / 4000 / 6500 K on request), CRI above 80
• Lifetime: L90B50 over 110,000 hours, Ta 25 °C
• Emergency Unit: inverter charger and Ni-Cd battery pack, 180 min autonomy, 439 lm
• Versions: Normal ON/OFF, DALI2, emergency with autotest, emergency DALI2
• Pictograms: 5 directional pictograms included as standard with emergency versions
• Body: PC polycarbonate, grey RAL 7035, UV stable
• Cover: Opal polycarbonate
• Gasket: Silicone
• Cable Entry: Polyamide gland M20 x 1.5 (6-12 mm)
• Terminals: Screwless terminal block, max. 4 mm2
• Dimensions: 395 x 195 x 122 mm – 2.8 kg normal, 3.96 kg emergency
• Origin: Made in Europe
Versions: 4 versions – normal ON/OFF (ESCZ150N0150PS565FE), DALI2 driver (ESCZ150ND150PS565FE), emergency with autotest (ESCZ135EA150PS565FE), emergency DALI2 (ESCZ135ED150PS565FE)
Emergency lighting: 180 min autonomy, 439 lm emergency output; inverter charger and Ni-Cd battery pack
Emergency function test: can be carried out without opening the luminaire in the hazardous area
Dimming: DALI2 driver option
Pictograms: all 5 directional pictograms are included in the package as standard with emergency versions (ESCACP100, ESCACP200, ESCACP300, ESCACP400, ESCACP500)
Colour temperature: 5000 K standard; 3000 K, 4000 K and 6500 K on request
Mounting: direct ceiling or wall fixing via two self-locking clips; cable suspension on clips or via suspension lugs
Pole brackets: Ø 42 / 50 / 60 mm (ESCACM242 / 250 / 260)
Standard equipment: 2 x M20 cable plug, 2 x M20 cable gland, 2 x mounting clip
Typical Applications:
Ideal for escape route and emergency exit lighting in refineries, petrochemical and chemical plants, process areas and corridors of pharmaceutical and food facilities, warehouses, silos and filling areas with combustible dust risk, pump stations, paint booths and solvent stores, as well as evacuation routes on offshore platforms and port terminals.
