Home Exproof Products Exproof Warning and Caution Equipment BARTEC – LED Signal and obstruction light with MIOL-LIOL
BARTEC - Ex p Relay – Power – Release module for Ex p equipment
BARTEC - Ex p Relay – Power – Release module for Ex p equipment
Back to products
BARTEC - EDMS Motorstarter Class I Div. 1-2 and Ex db IIB+H2 aluminium enclosure
BARTEC - EDMS Motorstarter Class I Div. 1-2 and Ex db IIB+H2 aluminium enclosure
BARTEC

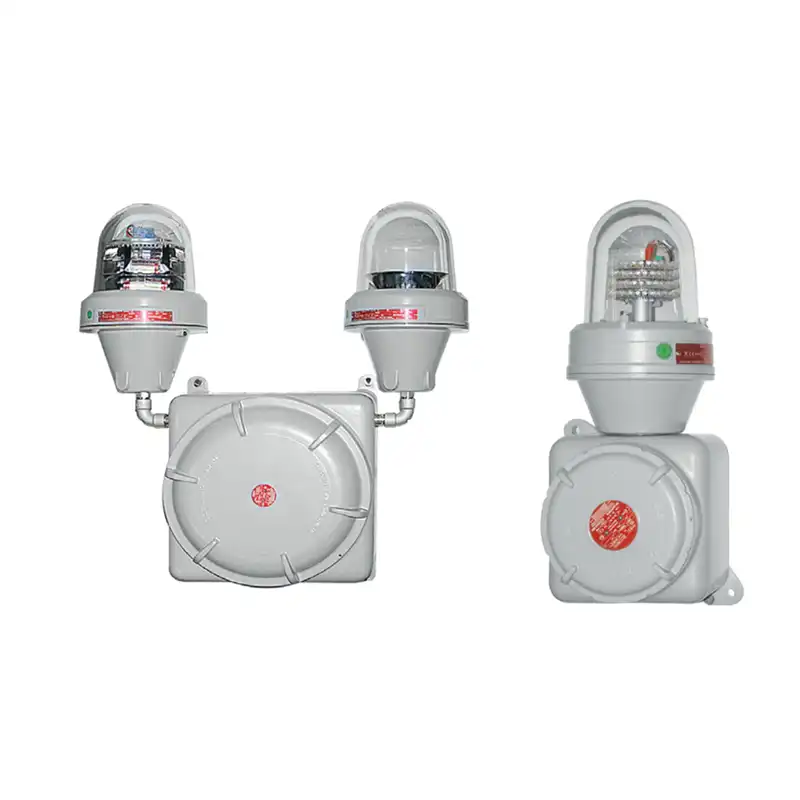

BARTEC – LED Signal and obstruction light with MIOL-LIOL

Medium intensity and low intensity multI-LED system aircraft warning lights.

Zone Class: Zone 1, 21
Explosion-proof Protection: Ex II 2G Ex db IIC T6/T4 Gb
Ex II 2D Ex tb IIIC T85°C/T135°C Db
IP Rating
: IP66
Operating Temperature: -60°C to +60°C
ATEX Certificate: INERIS 01 ATEX 0054X
Other Certificates: IECEx INE 13.0075X

Categories: Exproof All Products, Exproof Products, Exproof Warning and Caution Equipment, General
Share:
  • Description
  • Additional information
Description

Description

The Type MIOL-LIOL light series is designed for robust illumination in challenging environments. Built to withstand potentially explosive atmospheres (Zones 1, 2, 21, and 22), these lights offer high IP protection and wide temperature tolerance.

Primarily used for obstruction lighting, MIOL-LIOL lights are essential for safety in aviation and maritime sectors.** In airports, they clearly mark tall structures like buildings, towers, and chimneys, enhancing visibility, especially during low-light conditions or poor weather. Offshore, they guide safe navigation by illuminating platforms, buoys, and bridges.**

Available in various configurations, including steady or flashing lights, low or medium intensity options, and incandescent, xenon, or LED light sources, the series caters to diverse needs. Complex control and monitoring systems complement the lights for comprehensive solutions in both onshore and offshore applications.

TECHNICAL DOCUMENT

BARTEC - LED Signal and obstruction light with MIOL-LIOL - Datasheet

CERTIFICATES

BARTEC - LED Signal and obstruction light with MIOL-LIOL ATEX
BARTEC - LED Signal and obstruction light with MIOL-LIOL IECEx
Additional information
Brand

BARTEC
