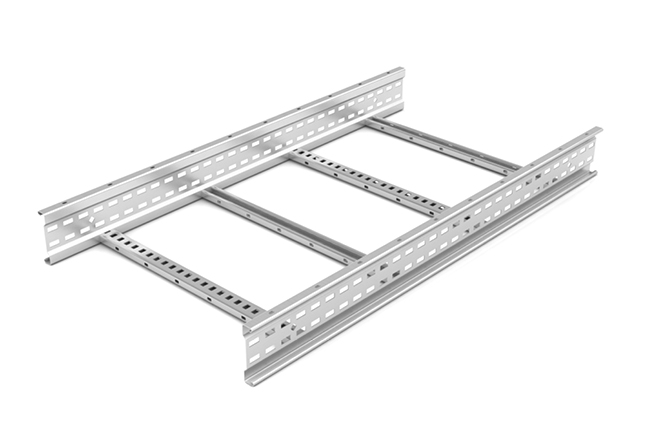

VANTRUNK – SW5 Cable Ladder
REF: SW5
Speedway SW5 Heavy Duty Cable Ladder is manufactured in 3.0m lengths as standard with 6.0m lengths supplied to order. The cable ladder is available in standard widths of 150mm, 300mm, 450mm, 600mm, 750mm, 900mm and 1050mm, although other widths up to 1500mm are available to order standard galvanised products. Rung spacing is 300mm as standard.
Description
PRODUCT HIGHLIGHTS
-
SPEEDWAY PROFILE
Unique Speedway ladder profile maximises strength by moving towards the I-Beam profile by adding a central webb that also minimises slip at the joint.
-
UNIQUE SLOT PATTERN
The slots on the Speedway ladder side are located close to the centre point of the ladder, thus eliminating the potential for localised weakness.
-
EARTH CONTINUITY
Speedway Straight Ladder comes with a pre-punched hole for use with the Earth Bonding Strap.
TECHNICAL DOCUMENT
Additional information
| Brand |
vantrunk |
|---|
