Materials and Finish

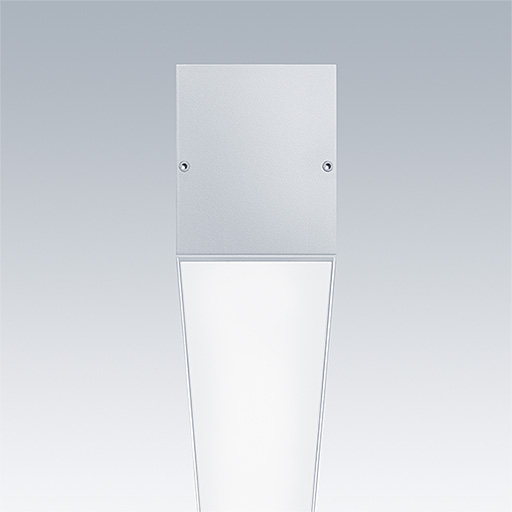

Body: extruded aluminium with powder coated finish
Cover: opal (PM) / LRO
End-cap: aluminium with powder coated finish
Installation and Mounting

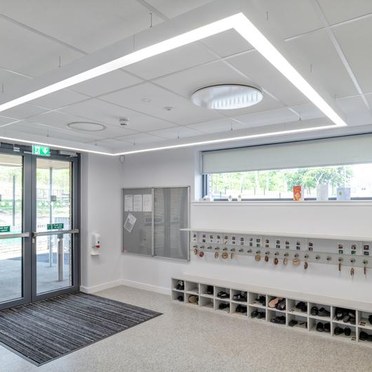

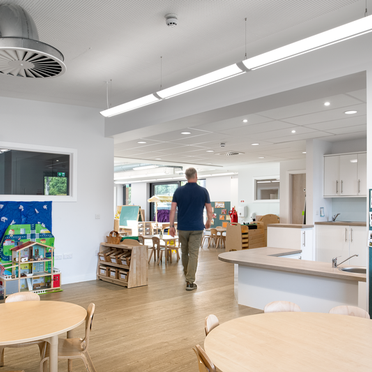

Suitable for recessed, surface or suspended mounting. Optional installation kits are needed for recessed installation, springs for surface mounted installation or a suspension kit for suspended installation. Electrical feed in from the back of the luminaire with terminal block on LED-batten. Electrical connection between the LED-battens is done via simple connection with the through wiring set and the mechanical connection with metal connector inside the channel. Possible arrangement in lines as well with corners in L, U and square shapes with opal (PM) cover, LRO only in linear lines.
Specification
To specify state:
A flexible LED lightline with aluminium body and opal (PM) and LRO diffuser. Lengths of 600, 1200 and 1800 mm for single luminaire in modular ceilings as well as 1000, 1250, 1500, 1750, 2000 and 3000 mm for recessed plasterboard, recessed modular, surface mounted and suspended installation. Corner length are 541 (frameless), 546 (Slim Frame – FS) and 553 mm (Wide Frame – F). Efficiency up to 92 lm/W. Can be individual or continuous mounted. Provides lumen package of up to 1760 lm/m.
As Thorn Equaline.
