THORN – AVENUE F2 Urban Amenity Lighting

Post top lantern with a distinctive design and lighting signature

IDA Dark Sky Approved
*IDA fixture seal of approval relates to <= 3000 K only and clear enclosures. Luminaires must be mounted as photometered.

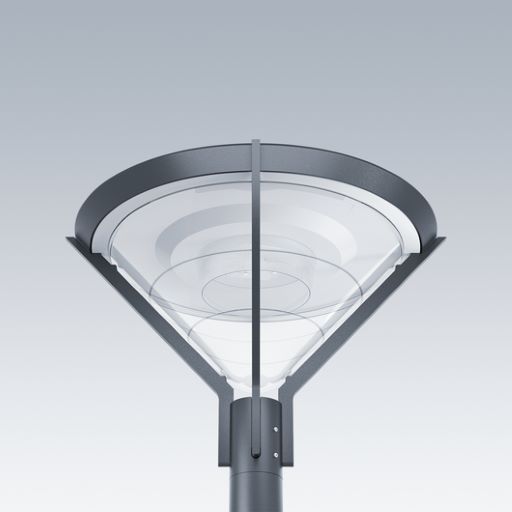

With conical bowl and prismatic crown for reduced glare and distinctive appearance

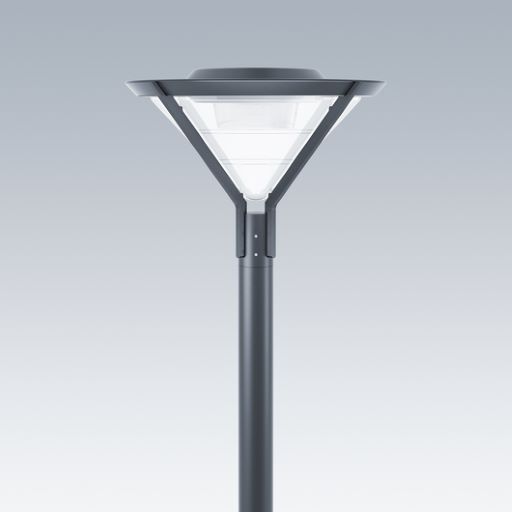

With flat enclosure for minimum upward lighting, preserving dark skies
Connectivity with Zhaga socket
Choice of dimming options and controls to reduce energy consumption and preserve dark skies
OTHER OPTIONS ARE AVAILABLE (colour temperature, controls, colour…). See myProduct for configuration options

Materials and Finish

Base and arms: die cast aluminium (AS9U3, LM24 equivalent, EN AC-46000, standard corrosion class C3).
Canopy: spun aluminium
Finish: texturised anthracite (close to RAL7043), Choice of RAL colors via Myproduct
Diffuser: clear UV stabilised PC
Screw fixings: stainless steel

Installation and Mounting

Suitable for mounting on top Ø76mm or Ø60mm, spigot internal length: 100mm. Recommended height: 3/4m. Equipped with cable gland or pre-wired with HO5VVF cable. Spare drivers and LED modules available. Delivered ready to install, complete with factory fitted integral gear tray, all supplied in a single carton.

Specification

To specify state:
Post top decorative lantern with 4 brackets, 2 different bowl enclosures : one conical with prismatic crown for distinctive lighting signature, the second with a flat enclosure to minimize lighting pollution. A choice of optics, controls and Zhaga connectivity addressing urban applications like parks, plazas, streets.
As Thorn Avenue F2.
