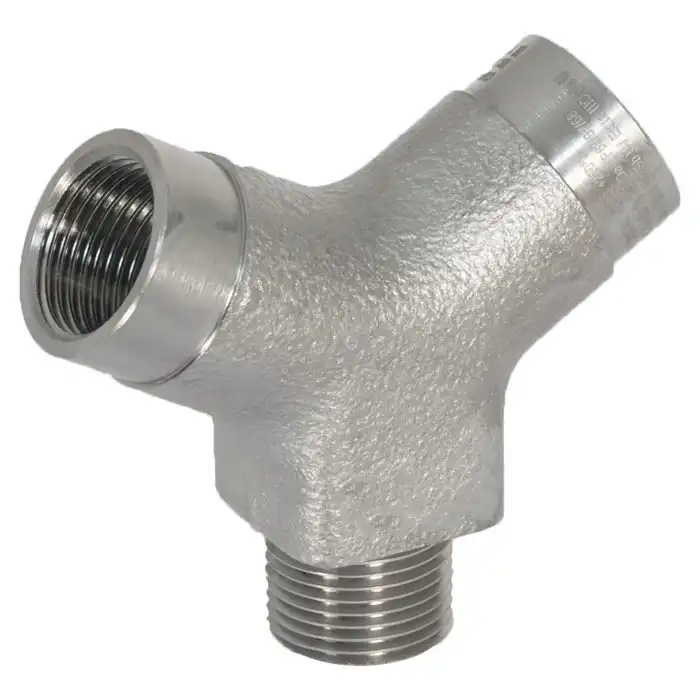

CMP Products – 783 | Dual Entry Y Adaptor for Explosive Atmosphere

Available in brass, nickel plated brass, stainless steel Technical Details Provides an opportunity for two entries As standard one male & two female entries Supplied with male or female threads upon request All angles 120° Protects cables from excessive bending stress General purpose / industrial version available Can be supplied with thread conversion upon request -60°C to +200°C Globally marked, IECEx, ATEX & EAC (TC RU) Can be used with 737 (not Ex d direct entry applications)

Get a Quote

Sıcaklık -60°C … 200°C Sertifika ATEX · IECEx

Documents 3

TECHNICAL DOCUMENT

CMP Products – 783 | Dual Entry Y Adaptor - DATASHEET PDF · 419 KB

OPERATING INSTRUCTION

CMP Products – 783 | Dual Entry Y Adaptor - Operating Instruction PDF · 851 KB

CERTIFICATES

CMP Products – 783 | Dual Entry Y Adaptor - Certificates PDF · 149 KB

Categories: Cable Gland Adaptors / Reducers, Cable Equipment

Technical Table

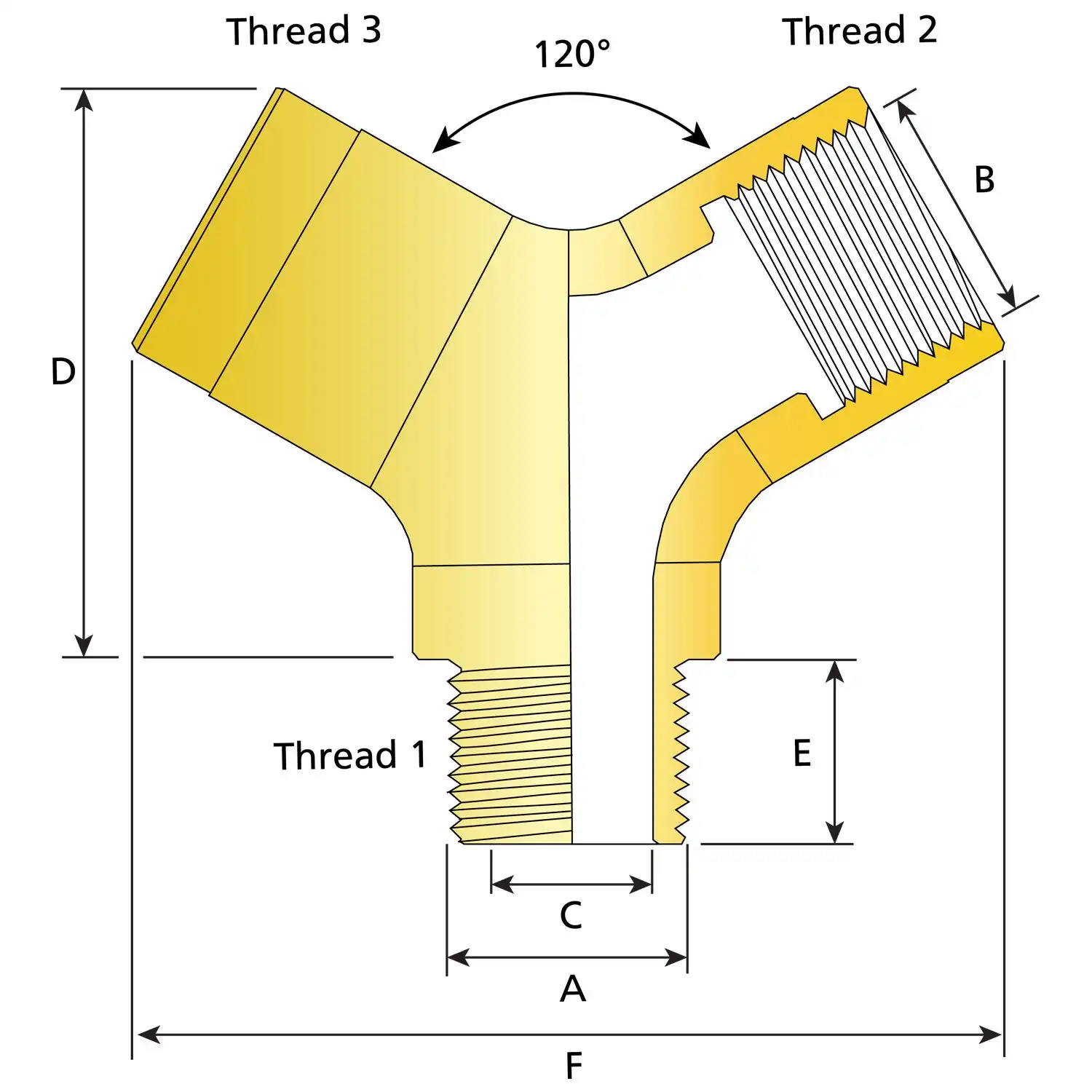

Ordering Reference	Bore Diameter ’C’	Thread 1 ’A’ (Entry Thread)	Thread 2 B	Thread 3 ‘B’	Thread Length ’E’	Protrusion Length ’D’	Protrusion Length ’F’	Width
783DM2MM2FM2F	14.7	M20	M20	M20	15.0	48.0	73.0	25 – 27
783DT1MT1FT1F	14.7	1/2′ NPT	1/2′ NPT	1/2′ NPT	19.9	43.0	73.0	25 – 27
783DM3MM3FM3F	18.9	M25	M25	M25	15.0	48.0	76.9	30 – 32
783DT2MT2FT2F	18.9	3/4″ NPT	3/4″ NPT	3/4″ NPT	20.2	48.0	76.9	30 – 32
783DM4MM4FM4F	25.9	M32	M32	M32	15.0	56.5	92.5	37 – 39
783DT3MT3FT3F	25.9	1″ NPT	1″ NPT	1″ NPT	25.0	56.5	92.5	37 – 39
All dimensions shown are in millimetres unless otherwise stated
