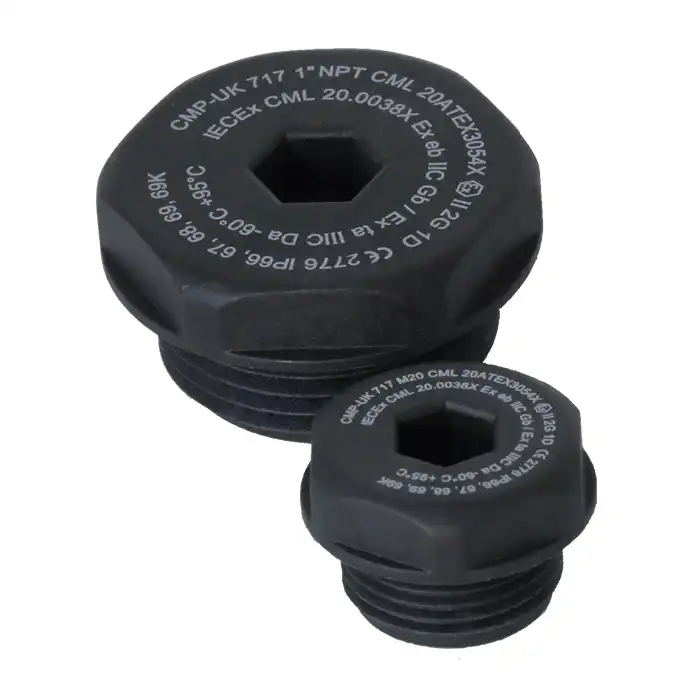

CMP Products – 717e | Nylon Universal Stopper Plug | Conduit Accessory for Explosive Atmosphere | Ex e

CMP Products – 717e | Nylon Universal Stopper Plug | Conduit Accessory for Explosive Atmosphere | Ex e

CMP Products
Technical Details Provides means of blanking unused cable entries Cost effective moulded design Universal tightening design (hex head, allen key and slotted/flat screw head) Temporary or permanent Available in blue for intrinsically safe circuits Approved entry thread sealing washer available +95°c to -60°c
Get a Quote
Documents 3
TECHNICAL DOCUMENT
CMP Products – 717e | Nylon Universal Stopper Plug - DATASHEET PDF · 298 KB
OPERATING INSTRUCTION
CMP Products – 717e | Nylon Universal Stopper Plug - Operating Instruction PDF · 598 KB
CERTIFICATES
CMP Products – 717e | Nylon Universal Stopper Plug - Certificates PDF · 158 KB

Categories: Ex-proof All Products, Ex-proof Products

Share:

Technical Table



ORDERING
REFERENCE		 THREAD SIZE MINIMUM THREAD
LENGTH		 ACROSS FLATS ACROSS CORNERS
DIAMETER		 PROTRUSION
LENGTH
717EM2 M20 10.0 24.0 26.3 7.0
717EM3 M25 10.0 28.0 30.7 7.0
717EM4 M32 10.0 38.0 41.7 8.0
All dimensions shown are in millimetres unless otherwise stated
Ordering reference shown for black metric product
Examples: 717EM2 = Black Nylon M20, 717EM24 = Blue Nylon M20
