| ORDERING REFERENCE |
THREAD SIZE | MINIMUM THREAD LENGTH |
ACROSS FLATS | ACROSS CORNERS DIAMETER |
PROTRUSION LENGTH |
| 717GM2 | M20 | 10.0 | 24.0 | 26.3 | 7.0 |
| 717GM3 | M25 | 10.0 | 28.0 | 30.7 | 7.0 |
| 717GM4 | M32 | 10.0 | 38.0 | 41.7 | 8.0 |
| All dimensions shown are in millimetres unless otherwise stated | |||||
| Ordering reference shown for black metric product | |||||

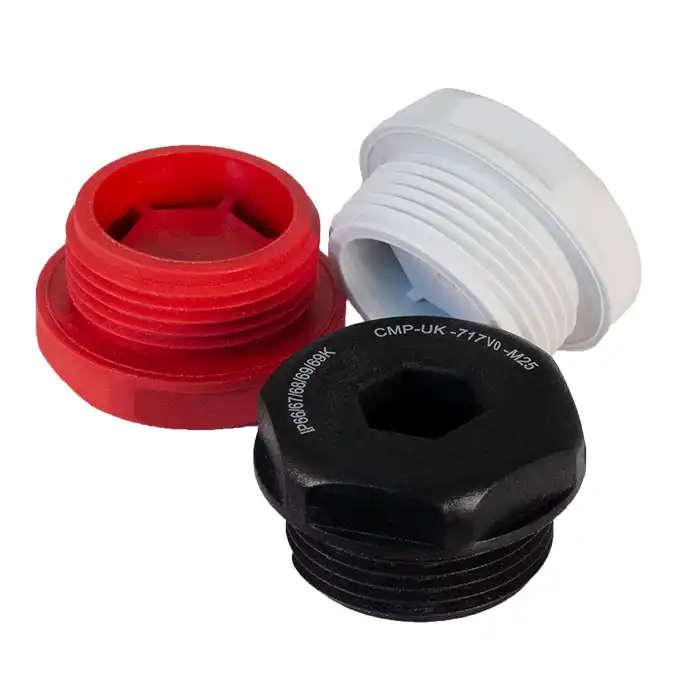

| Examples: 717GM2 = Black Nylon M20, 717GM23 = White Nylon M20, 717GM45 = Red Nylon M32 | |||||
| Brand | CMP Products |
|---|---|
| Kategori | Kör Tapalar |
