TSEA Energia MV Voltage Regulator

TSEA Energia

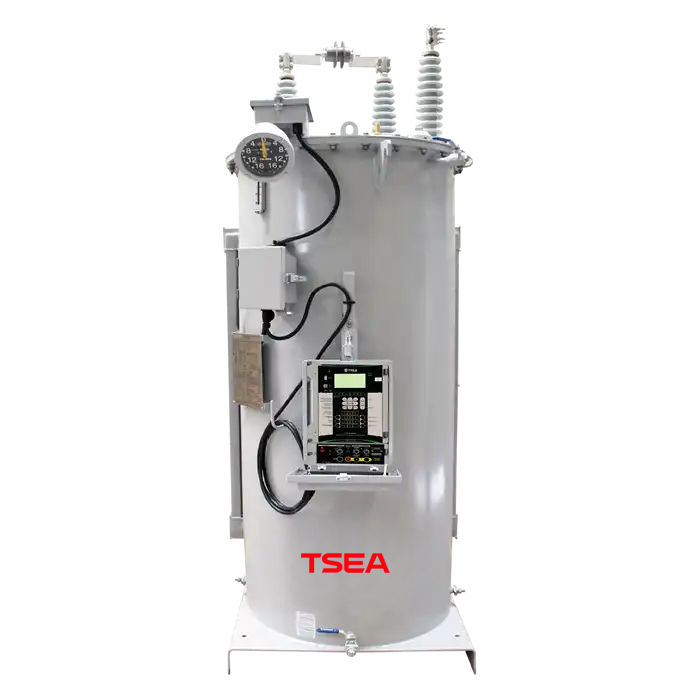

SINGLE-PHASE STEP VOLTAGE REGULATOR (SVR) – Voltage stability for utility feeders, substations, industrial facilities and renewable energy connections. TSEA Energia single-phase step voltage regulators are available up to 36.2 kV and 1,100 A, built to IEEE C57 / ANSI and IEC 60076-21, with automatic control and SCADA connectivity. Over 70,000 TSEA units are operating worldwide.

Key Specifications

Type Single-phase step voltage regulator
Voltage class Up to 36.2 kV
Rated current Up to 1,100 A
Standards IEEE C57 / ANSI, IEC 60076-21
Tap changers CR-3 / CR-10, up to 1,000,000 operations
Controls TVC-MP / Beckwith / SEL-2431 / CL-7
Insulation power factor ≤ 1% (typically 0.5%)
Impedance variation ≤ 12% max, typically ≤ 8%
Mounting Pole / Ground / Containerized
Communications DNP3, MODBUS, IEC 61870 via Bluetooth, fibre or Ethernet

Features

  • Wide Voltage Range: Available up to 36.2 kV and 1,100 A, covering a broad range of medium-voltage distribution applications.
  • Long-Life Design: Tap changers are rated for up to 1,000,000 operations. Robust construction is designed for outdoor use in extreme temperatures, humidity and harsh weather.
  • Automatic Control: Modern controls (TVC-MP, Beckwith, SEL-2431, CL-7) monitor the line and adjust voltage automatically as feeder load changes.
  • Low Maintenance: Durable tap changers and low-loss design reduce maintenance needs and operating costs.
  • Remote Monitoring and Control: SCADA integration over DNP3, MODBUS and IEC 61870 enables remote access, supporting fast response when faults occur.
  • Vegetable Oil Option: A biodegradable insulating fluid with a flash point about twice that of mineral oil.

Benefits

  • Energy Efficiency: Limiting voltage fluctuations helps minimize energy losses and reduce energy costs.
  • Improved Power Quality: Helps industrial equipment run more efficiently and extends equipment life.
  • Supply Reliability: Maintains voltage stability on critical infrastructure.
  • Proven Quality: All units are factory-tested, with KEMA and Powertech laboratory accreditation.

Applications

  • Long Distribution Feeders: Compensate voltage drop along extended medium-voltage lines.
  • Utilities and Substations: Stable voltage for distribution networks and substation projects.
  • Renewable Energy Integration: Smooth voltage variation from solar and wind generation to ease grid connection.
  • Industrial, Hospital and Campus Loads: Stable supply for facilities where voltage quality is critical.

Why Choose TSEA Energia SVRs?

TSEA Energia is Latin America's largest SVR manufacturer, with more than 70,000 units operating globally. We supply the range with full application engineering support, from product selection and sizing to compliance documentation and project coordination.

Technical Information and Support

Send us your voltage, current and control requirements and we will help you select the right regulator, with datasheets and test certificates provided on request.
