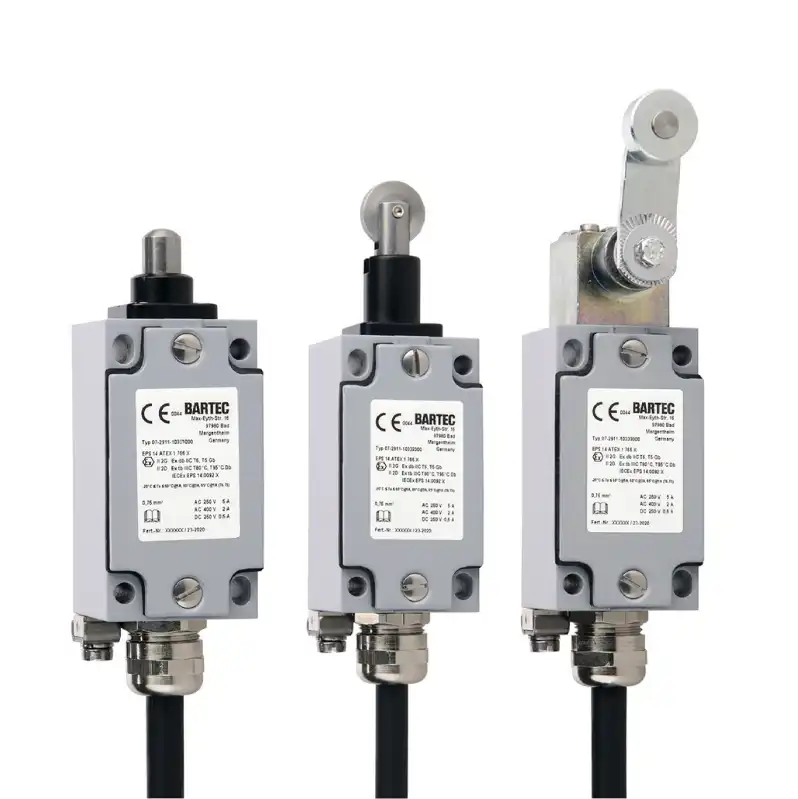

BARTEC – Position switch Aluminium
Zone Class: Zone 1, 21
Explosion-proof Protection: Ex II 2G Ex db IIC T6, T5 Gb
Ex II 2D Ex tb IIIC T80°C, T95°C Db
IP Rating: IP66
Operating Temperature: -60 °C ≤ Ta ≤ +75 °C
ATEX Certificate: EPS 14 ATEX 1766 X
Other Certificates: IECEx EPS 14.0092 X
Description
The Ex d position switch conforms to DIN EN 50041 standards for dimensions and actuating elements. Its compact 30 x 60 mm size ensures compatibility with other DIN-compliant position switches.
Equipped with versatile snap-action contacts, the switch accommodates various switching element options. A microswitch with a 3-meter connection cable (Type 07-2511) is standard.

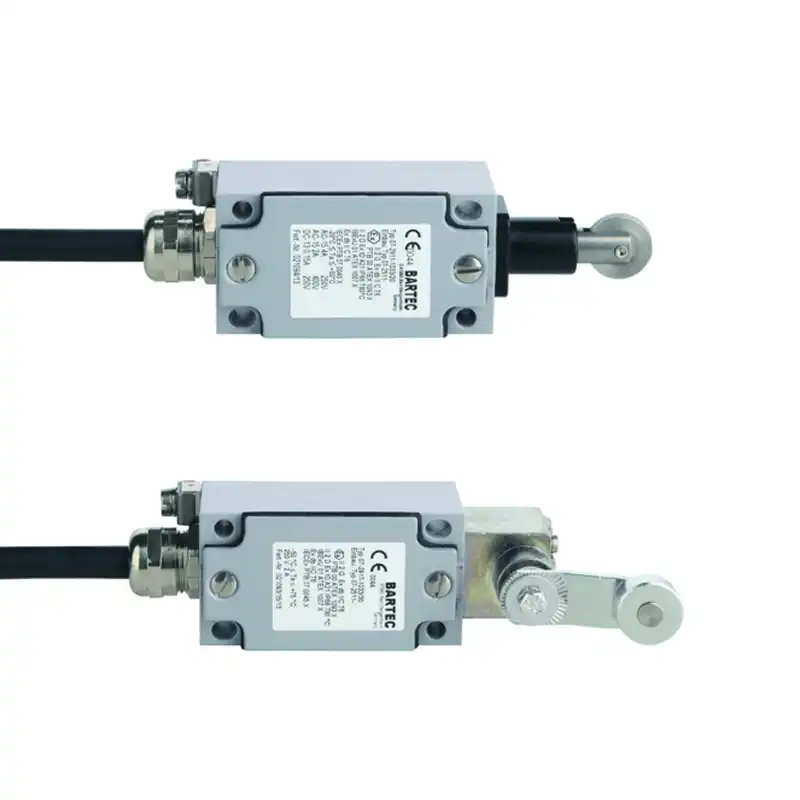

To adapt to different applications, the switch offers interchangeable actuators that can be rotated 90° in increments after removing four screws. For low current and voltage switching, gold-plated or gold-nickel contacts are available.
BARTEC complements the position switch with a wide range of Ex e terminal boxes in polyester and aluminum for secure connections within hazardous areas.
